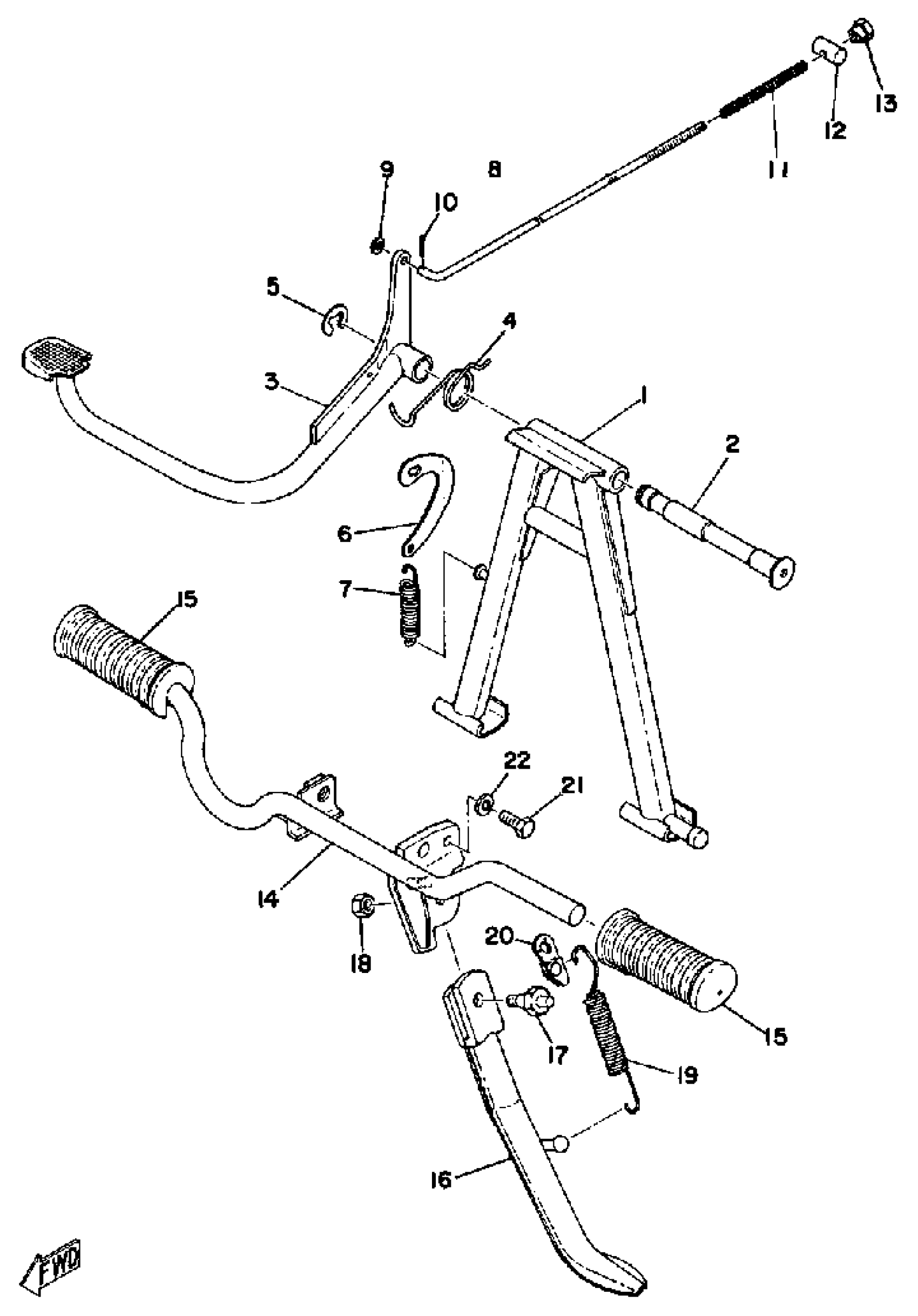

Yamaha RS100B (RS100) 1975 STAND - FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, MAIN

(336-27111-01-00)

Unavailable

2

SHAFT, MAIN STAND

(336-27112-00-00)

Unavailable

3

PEDAL, BRAKE

(2T3-27211-00-00)

Unavailable

4

SPRING 1832721600

90508-32056-00

$6.32

5

CIRCLIP (122)

93430-12008-00

$4.89

6

LINK, MAIN STAND

(307-27115-00-00)

Unavailable

7

SPRING, TENSION

(90506-29054-00)

Unavailable

8

ROD, BRAKE

(174-27231-01-00)

Unavailable

9

WASHER, PLATE (371)

90201-06431-00

$4.18

10

PIN, COTTER

91490-20025-00

$1.23

11

SPRING, (180-27236-00)

90501-10245-00

$5.75

12

PIN 1562723700

90249-12008-00

$5.75

13

NUT (25K)

90179-06411-00

$4.89

14

FOOTREST 1

(465-27411-00-00)

Unavailable

15

COVER, FOOTREST

122-27413-00-00

$13.55

16

STAND, SIDE

(465-27311-01-00)

Unavailable

17

BOLT

(90109-08396-00)

Unavailable

18

. NUT

95380-08700-00

$3.05

19

SPRING, TENSION

(90507-29022-00)

Unavailable

20

LINK, SIDE STAND

(507-27315-01-00)

Unavailable

21

BOLT, HEXAGON

97013-08020-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
