1975 Yamaha RS100 (RS100B) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1975 Yamaha RS100 (RS100B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

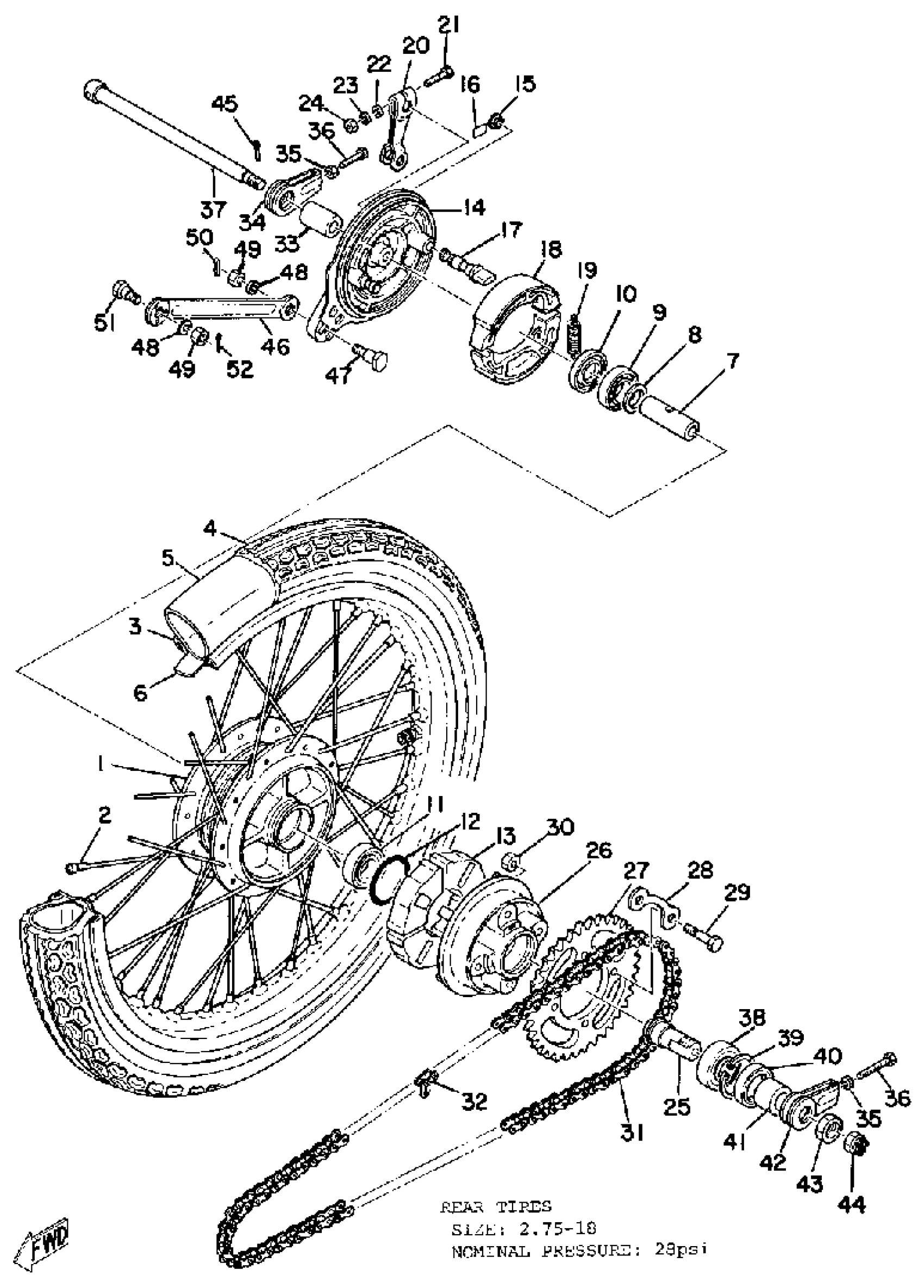

1975 Yamaha RS100 (RS100B) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(132-25311-00-38)

1
Out of stock

2

SPOKE SET, REAR

(164-25304-00-00)

1
Out of stock

3

RIM (1.40-18)

94414-18545-00

1

$107.12

In stock

4

275X18 YOKO Y93C

(94127-18312-00)

1
Out of stock

5

TUBE

(94227-18010-00)

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER

90560-12145-00

1

$17.22

In stock

8

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

9

BRG.

93306-30101-00

1

$31.58

In stock

10

OIL SEAL (21X37X7-102)

93104-21016-00

1
Out of stock

11

BEARING

93306-30102-00

1
Out of stock

12

O-RING (102)

93210-41041-00

1

$5.86

In stock

13

DAMPER, CLUTCH

304-25364-01-00

1

$21.12

In stock

14

BRAKE SHOE PLT ASSEMBLY

(339-25320-10-00)

1
Out of stock

15

GROMMET (397)

90480-10068-00

1

$6.77

In stock

16

LABEL, INDICATOR

(437-25134-00-00)

1
Out of stock

17

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

18

BRAKE SHOE KIT

2JL-W253E-20-00

—

$25.53

In stock

19

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

20

UNAVAILABLE IN PRICE BOOK

122-25355-00-0

1
Out of stock

21

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

22

WASHER, PLATE (371)

90201-06431-00

—
Out of stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

25

SHAFT, SPROCKET

167-25387-00-00

—

$47.57

In stock

26

CLUTCH, HUB

296-25366-01-33

—
Out of stock

27

SPROCKET, DRIVN 35TWHEEL (35T)

183-25435-39-00

1
Out of stock

27

SPROCKET, DRVN 36T (36T) (183-25436-10-33)

183-25436-39-00

1
Out of stock

27

SPROCKET, DRVN 37T

183-25437-20-00

1
Out of stock

28

WASHER

4AW-25412-00-00

—

$4.24

In stock

29

BOLT(1AJ)

90101-08672-00

—

$2.69

In stock

30

NUT(6L2)

95333-08600-00

—

$3.20

In stock

31

CHAIN

9Y582-51115-00

—

$46.10

In stock

32

JOINT, CHAIN(3KX)

94681-64001-00

—
Out of stock

33

COLLAR 195253830000

90387-12102-00

—
Out of stock

34

PULLER, CHAIN

241-25389-10-00

—

$32.18

In stock

35

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

36

BOLT HEXAGON 167253790000

90101-06016-00

—

$6.37

In stock

37

AXLE, WHEEL

390-25381-01-00

1
Out of stock

38

BEARING(3BN)

93306-00438-00

—

$32.22

In stock

39

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock

40

OIL SEAL (30X42X8-102)

93106-30004-00

—

$10.98

In stock

41

COLLAR 167253860000

90387-18144-00

—
Out of stock

42

PULLER, CHAIN(L.H)

241-25388-00-00

—

$30.49

In stock

43

NUT, HEXAGON

90170-18165-00

—

$7.82

In stock

44

NUT 3532518200

90171-10004-00

—

$5.32

In stock

45

PIN, COTTER

91490-20025-00

—

$1.31

In stock

46

BAR, TENSION

27L-25371-00-00

—
Out of stock

47

BOLT 1022537300

90109-08183-00

—

$6.18

In stock

48

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

49

. NUT

95380-08700-00

1

$3.07

In stock

50

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

51

BOLT (183-25378-00)

90109-08368-00

—

$7.00

In stock

52

PIN, COTTER

91490-20025-00

—

$1.31

In stock
