2017 Suzuki RMX450ZL7 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2017 Suzuki RMX450ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

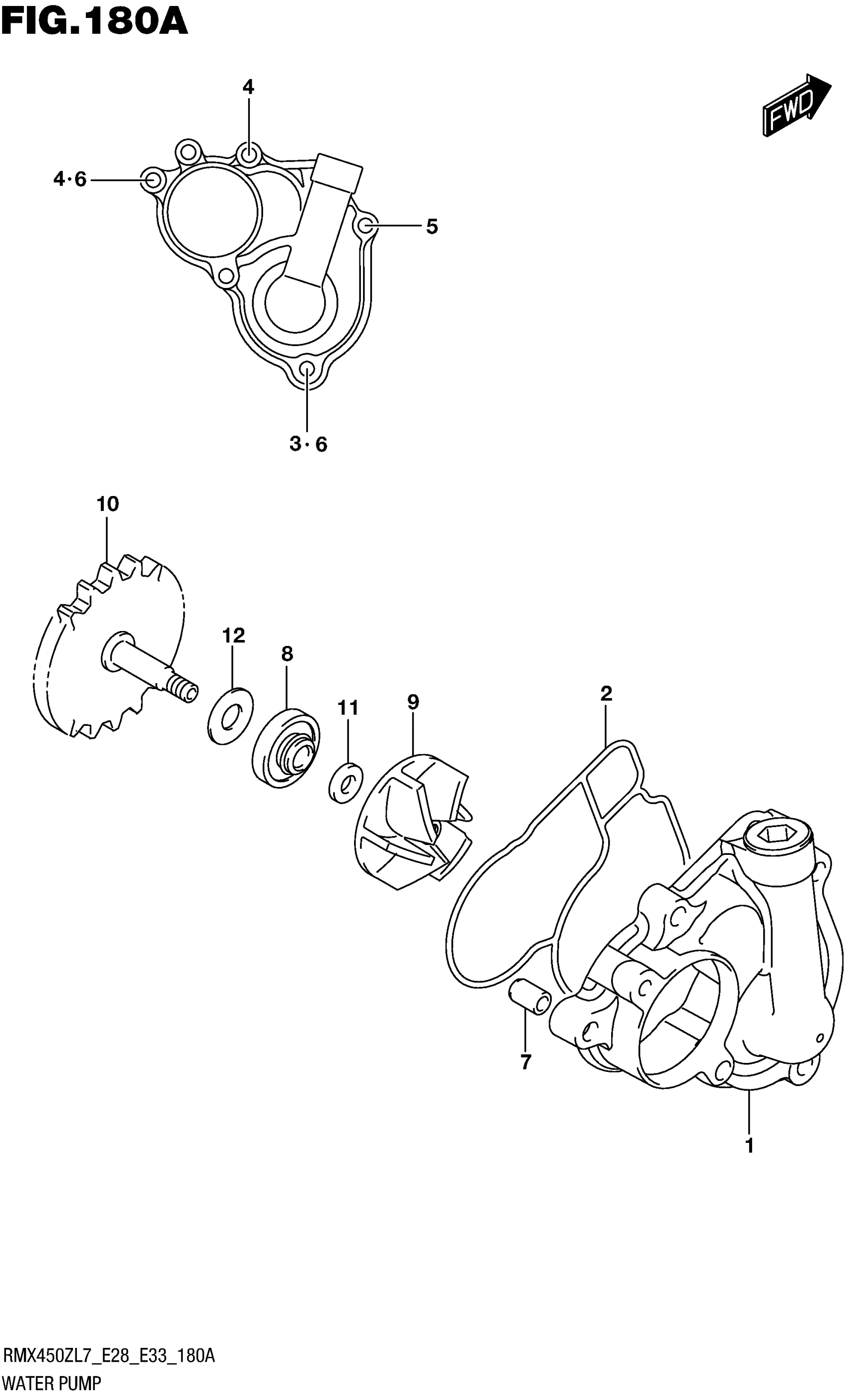

2017 Suzuki RMX450ZL7 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, WATER PUMP & OIL FILTER

17410-28H00

1
Out of stock

2

.O-RING

17431-28H00

1
Out of stock

3

BOLT

01547-0630A

1
Out of stock

4

BOLT

01547-0660A

2
Out of stock

5

BOLT

01547-0670A

1
Out of stock

6

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

7

PIN (8X11)

09206-08001

2
Out of stock

8

SEAL, WATER PUMP OIL

17461-37F00

1
Out of stock

9

IMPELLER,WATER PUMP

17491-35G00

1
Out of stock

10

SHAFT,WATER PUMP (NT:23)

17510-28H01

1
Out of stock

11

SHIM (6X14X1)

09181-06003

1
Out of stock

12

SHIM (8X18X0.5)

09181-08186

1
Out of stock
