2017 Suzuki RMX450ZL7 Air Cleaner Diagram

← All diagrams

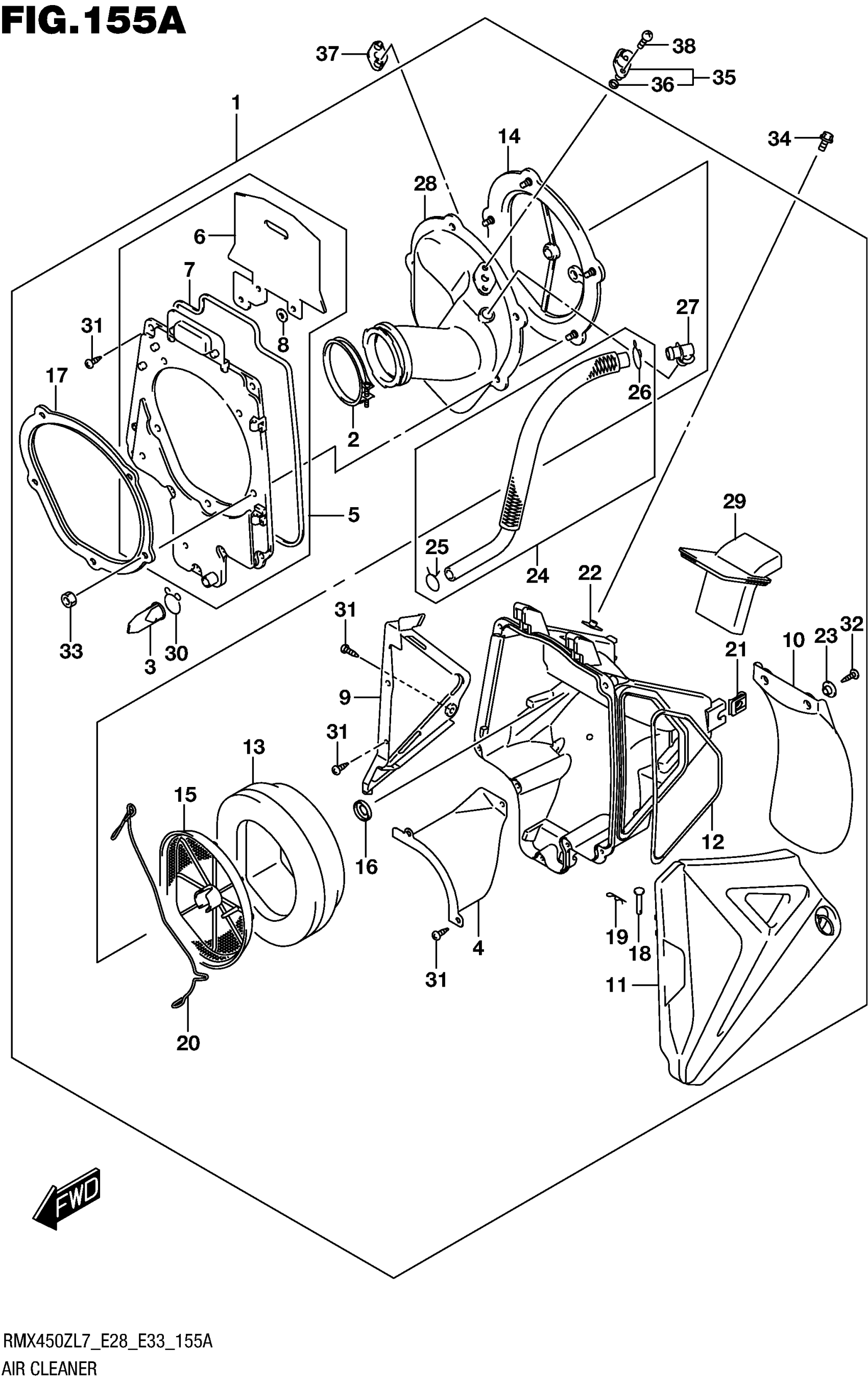

Find the part on the Air Cleaner diagram for your 2017 Suzuki RMX450ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki RMX450ZL7 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$565.53

In stock

2

.CLAMP

13170-25D01

1

$7.45

In stock

3

1

$7.48

In stock

4

.PLATE, HEAT GUARD

13719-02J00

—
Out of stock

5

1

$52.20

In stock

6

..COVER AIR CLEANER

13749-02J00

1

$24.37

In stock

7

..GASKET, CASE

13756-02J00

—
Out of stock

8

..NUT, PUSH

13832-02J00

3

$2.40

In stock

9

.COVER, SIDE RH

13723-02J00

1

$24.37

In stock

10

.MUD GUARD

13738-36E01

1

$21.83

In stock

11

.CAP, AIR CLEANER (YELLOW)

13740-02J01-YU1

1

$67.58

In stock

12

.GASKET, CASE

13757-02J00

1

$9.35

In stock

13

.FILTER ASSY

13780-02J00

1

$70.50

In stock

14

.BASE, FILTER

13790-02J00

—
Out of stock

15

.HOLDER, FILTER

13791-02J00

1

$40.55

In stock

16

.SPACER

13796-44E00

1
Out of stock

17

.PLATE, FILTER BASE

13797-02J00

—
Out of stock

18

.PIN, HINGE

13822-02J00

2

$9.08

In stock

19

.PIN, SNAP

13823-02J00

2

$4.30

In stock

20

.SPRING

13825-02J00

—
Out of stock

21

.RECEPTACLE

13835-02J01

1
Out of stock

22

.NUT, AIR CLEANER

13836-12D00

—
Out of stock

23

.COLLAR

13838-02B00

2

$3.55

In stock

24

.TUBE, BREATHER

13850-02J00

1
Out of stock

25

..CLIP

09401-13301

1

$2.95

In stock

26

..CLIP

09401-14101

1
Out of stock

27

.JOINT, BREATHER TUBE

13858-14D20

1
Out of stock

28

.TUBE, OUTLET

13881-02J00

—
Out of stock

29

1

$53.33

In stock

30

.CLIP

09401-17201

1
Out of stock

31

.SCREW

03211-0516B

—
Out of stock

32

.SCREW

03541-0520B

2

$2.87

In stock

33

.NUT

08310-00057

5

$1.97

In stock

34

BOLT

01547-0612A

2
Out of stock

35

SENSOR, AIR TEMP

13650-14G10

1

$51.91

In stock

36

.O RING

13655-14G10

1

$11.18

In stock

37

BRACKET

13652-28H00

1

$14.00

In stock

38

.SCREW

02112-0516A

2
Out of stock
