2017 Suzuki RMX450ZL7 CAM Chain Diagram

← All diagrams

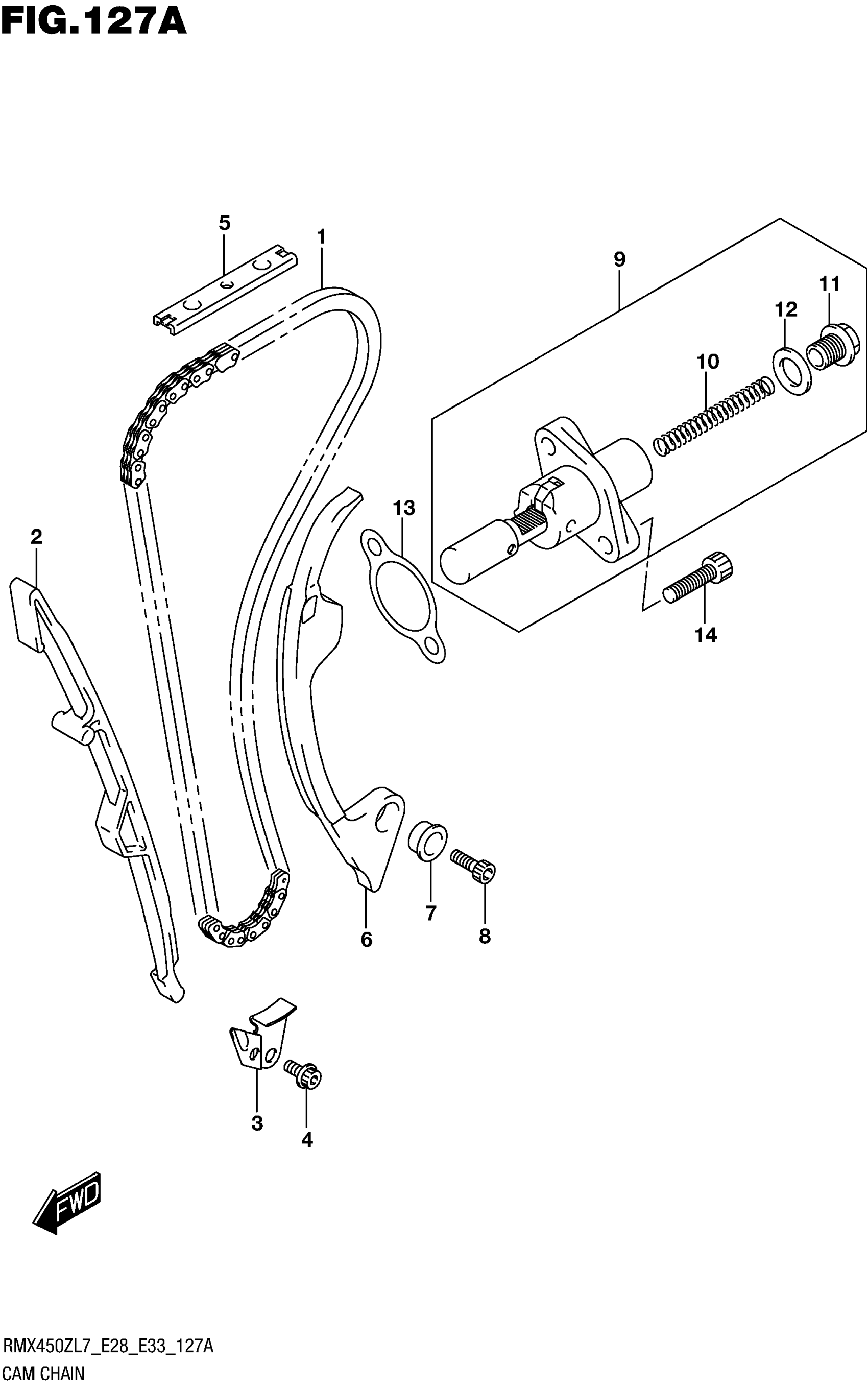

Find the part on the CAM Chain diagram for your 2017 Suzuki RMX450ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki RMX450ZL7 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE (82RH201

12760-35G00

1
Out of stock

1

CHAIN,CAMSHAFT DRIVE (82RH201

12760-35G00

1
Out of stock

2

GUIDE, CAM CHAIN NO.1

12771-28H00

1
Out of stock

3

RETAINER,CAM CHAIN GUIDE NO.1

12773-28H10

1
Out of stock

4

.BOLT

07120-0610A

1
Out of stock

5

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35G00.

12782-35G01

1
Out of stock

6

TENSIONER,CAM C This part replaces 12811-02J00.

12811-02J01

1
Out of stock

7

SPACER

12812-35G00

1
Out of stock

8

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock

9

ADJUSTER ASSY, TENSIONER

12830-35G10

1
Out of stock

10

.SPRING

12831-39F00

1
Out of stock

11

.PLUG

12833-05A00

1
Out of stock

12

.GASKET

12837-24F10

1
Out of stock

13

.GASKET,TENSIONER ADJUSTER

12837-24A10

1
Out of stock

14

BOLT (6X25)

07130-0625A

2
Out of stock
