2017 Suzuki RMX450ZL7 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2017 Suzuki RMX450ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

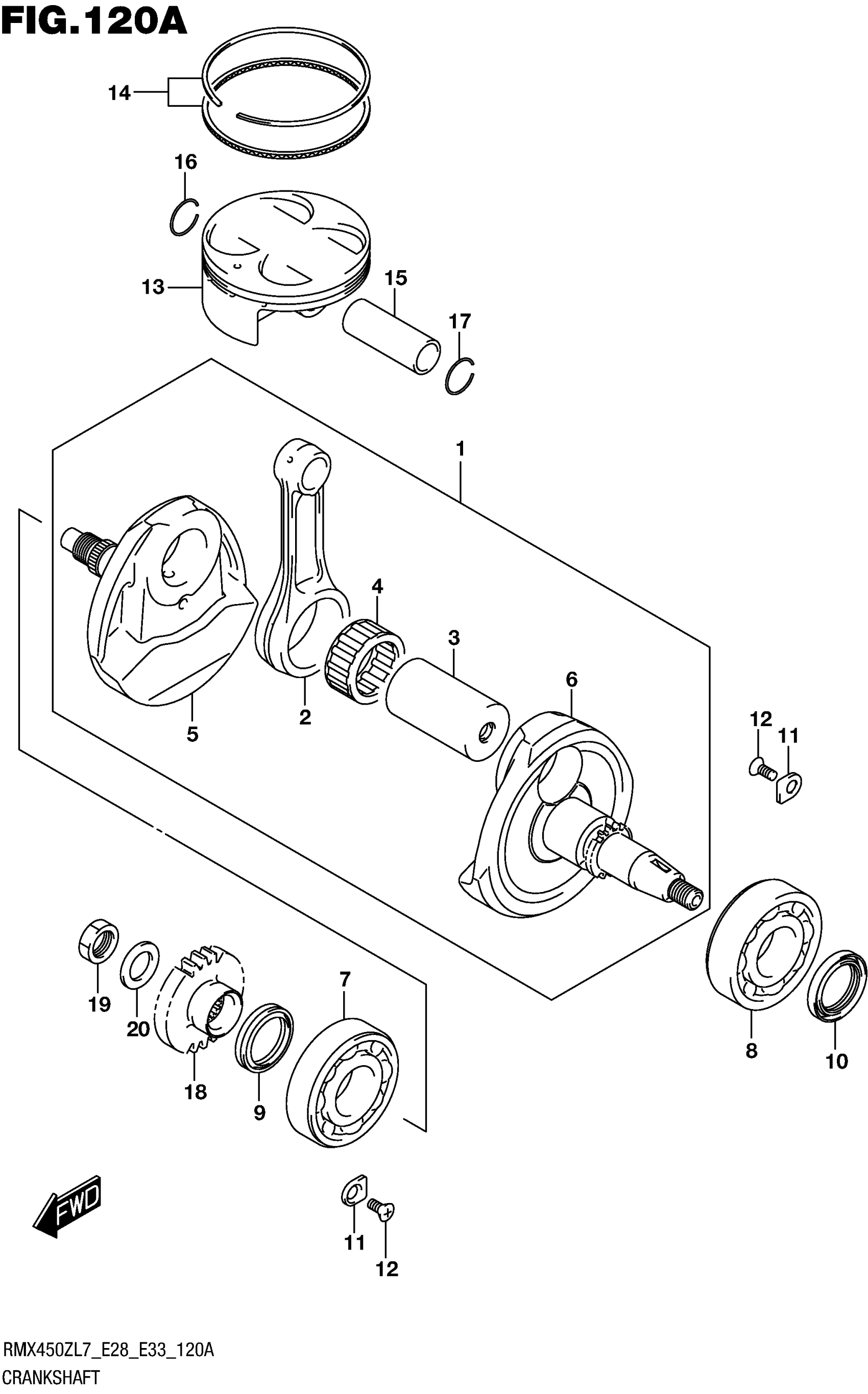

2017 Suzuki RMX450ZL7 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-02J10

1
Out of stock

2

.ROD, CONNECTING

12160-28H00-0B0

1
Out of stock

3

.PIN

12210-35G03

1
Out of stock

4

.BEARING (34X42X20)

09263-34014-0B0

1
Out of stock

5

.CRANKSHAFT, RH

12220-02J00

—
Out of stock

6

.CRANKSHAFT, LH

12261-02J00

—
Out of stock

7

BEARING (30X72X19) | RH

09262-30115

1
Out of stock

8

BEARING (32X75X20) | LH

09262-32017

1
Out of stock

9

SEAL,OIL (30X40X7) | RH This part replaces 09283-30061.

09283-30076

1
Out of stock

10

SEAL,OIL | LH This part replaces 09283-32037.

09283-32044

1
Out of stock

11

RETAINER

24741-20A00

4
Out of stock

12

SCREW (6X12)

09126-06011

4
Out of stock

13

PISTON

12111-28H10-0F0

1
Out of stock

14

RING SET,PISTON

12140-28820

1
Out of stock

15

PIN, PISTON

12151-35G01

1
Out of stock

16

RING,SNAP

09381-19001

1
Out of stock

17

CIRCLIP

09381-19005

1
Out of stock

18

GEAR,PRIMARY DRIVE (NT:24)

21111-28H00

1
Out of stock

19

NUT

09140-16036

1
Out of stock

20

WASHER

09164-16002

1
Out of stock
