2017 Suzuki RMX450ZL7 Crankcase Cover Diagram

← All diagrams

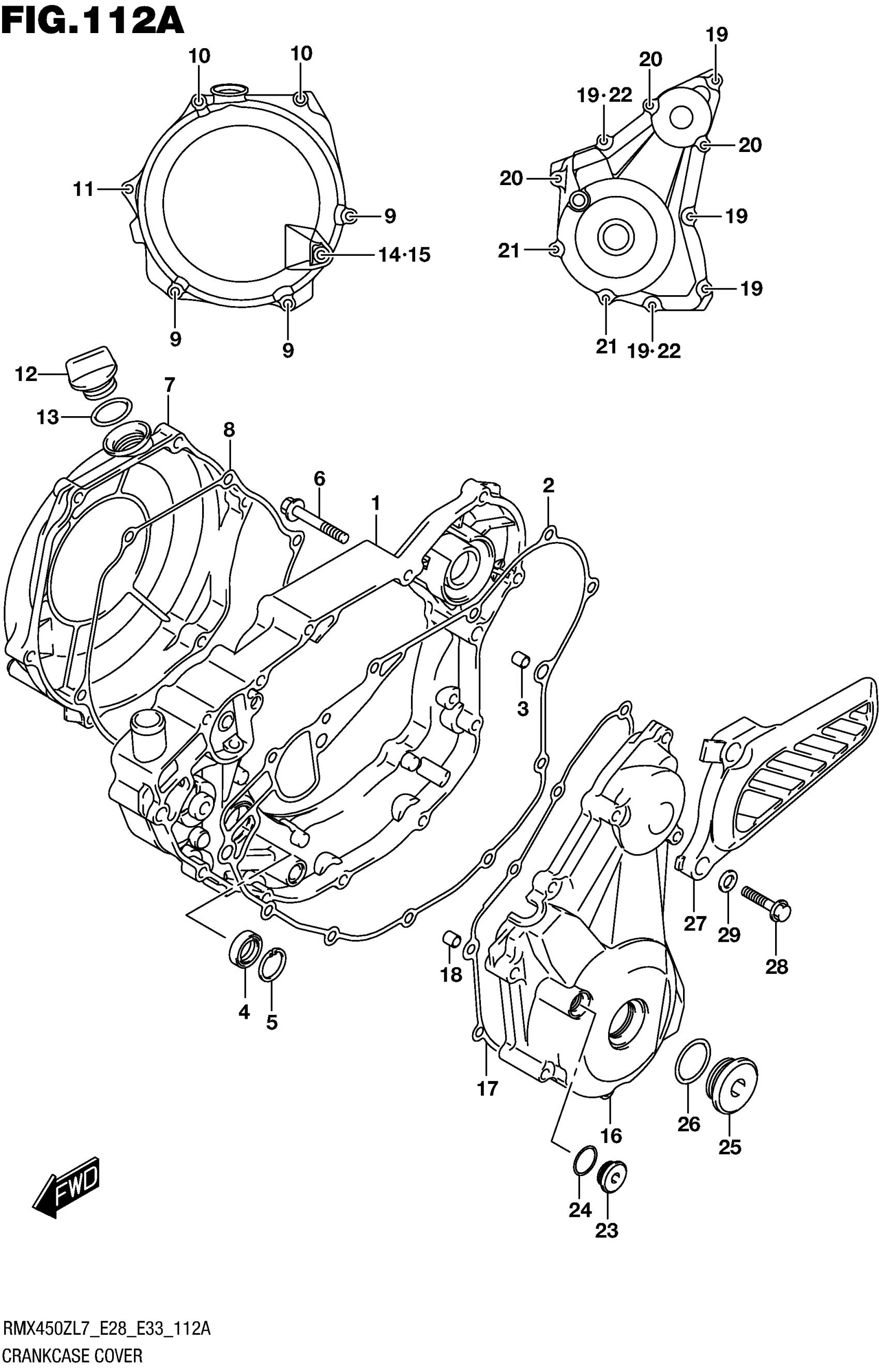

Find the part on the Crankcase Cover diagram for your 2017 Suzuki RMX450ZL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki RMX450ZL7 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH INNER

11340-28H10

1
Out of stock

2

.GASKET,CLUTCH COVER

11482-28H00

1
Out of stock

3

PIN

04211-09149

2
Out of stock

4

SEAL,OIL (12X22X6)

09282-12012

1
Out of stock

5

CIRCLIP

08331-41249

1
Out of stock

6

BOLT

01547-0625A

7
Out of stock

7

COVER,CLUTCH OUTER

11371-02J00

1
Out of stock

8

.GASKET,CLUTCH COVER OUTER

11484-28H00

1
Out of stock

9

BOLT

01547-0625A

3
Out of stock

10

BOLT

01547-0665A

2
Out of stock

11

BOLT

01547-0670A

1
Out of stock

12

PLUG

09259-20008-XC0

1
Out of stock

13

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

14

SCREW (6X10)

09139-06055

1
Out of stock

15

GASKET (6.2X11X1.2)

09168-06004

1
Out of stock

16

COVER, MAGNETO

11351-02J00

1
Out of stock

17

GASKET, MAGNETO COVER

11483-02J00

1
Out of stock

18

PIN

04211-09149

1
Out of stock

19

BOLT

01547-0625A

5
Out of stock

20

BOLT

01547-0640A

3
Out of stock

21

BOLT

01547-0650A

2
Out of stock

22

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

23

PLUG (12X9)

09248-12007

1
Out of stock

24

O RING (D:1.9,ID:9.8)

09280-10016

1
Out of stock

25

PLUG (26X9)

09259-26011

1
Out of stock

26

O RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

27

COVER, ENGINE SPROCKET

11360-02J00

1
Out of stock

28

BOLT (6X30)

09103-06297

2
Out of stock

29

WASHER

08322-0106A

2
Out of stock
