2010 Suzuki RMX450ZL0 Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 2010 Suzuki RMX450ZL0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

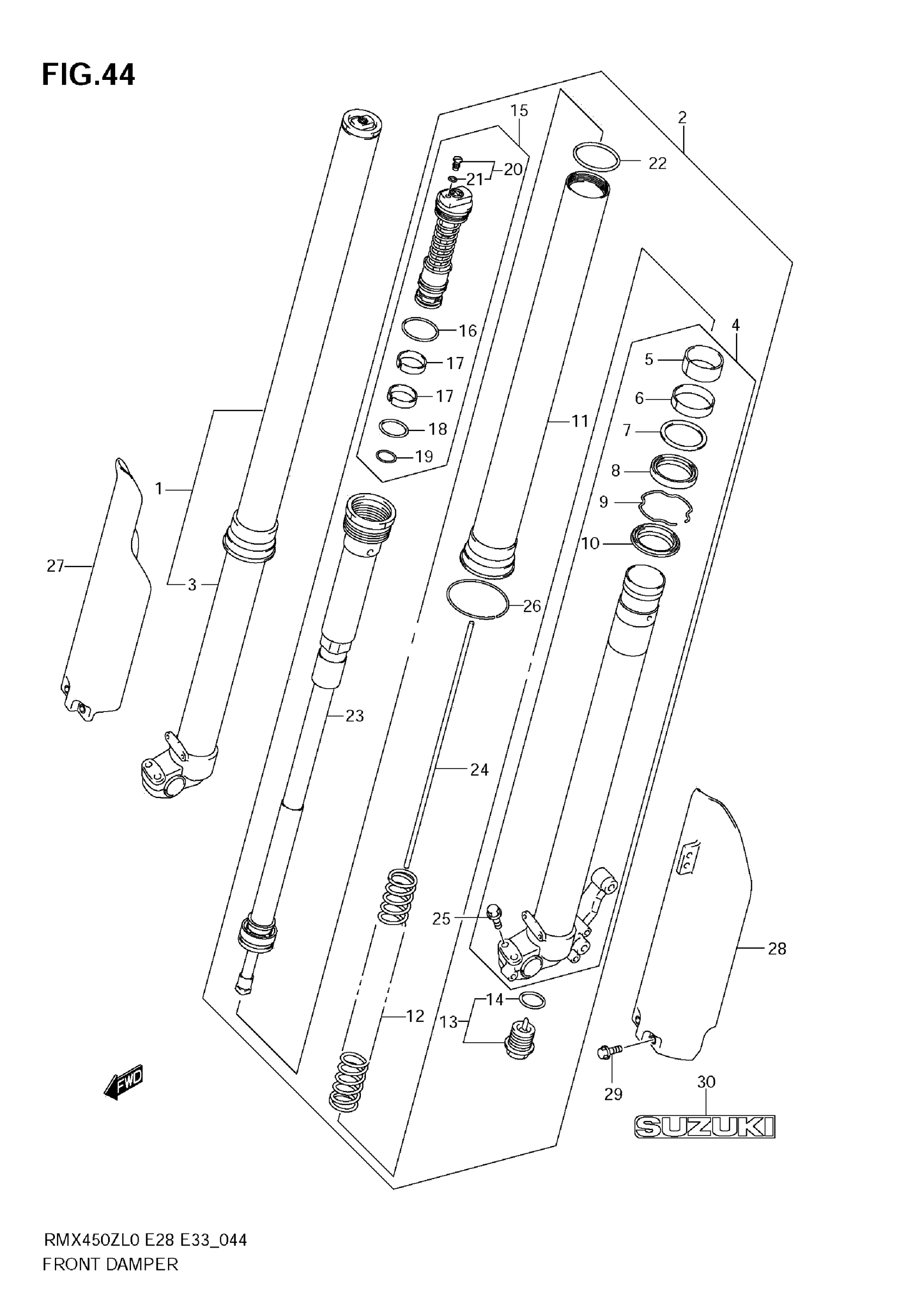

2010 Suzuki RMX450ZL0 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-02J00

—
Out of stock

2

DAMPER ASSY, FRONT FORK LH

51104-02J00

—
Out of stock

3

TUBE, INNER RH

51110-28H10

1
Out of stock

4

TUBE, INNER LH

51120-28H10

1
Out of stock

5

BUSH, GUIDE

51121-28H10

2
Out of stock

6

BUSH, GUIDE

51167-28H10

2
Out of stock

7

SPACER, SEAL

51158-36F00

2

$10.58

In stock

8

SEAL, OIL

51153-37F80

2

$29.39

In stock

9

2

$5.33

In stock

10

SEAL, DUST

51173-37F80

2

$26.50

In stock

11

TUBE, OUTER

51130-28H00

2
Out of stock

12

SPRING, FRONT (K=0.47) | STD

51171-28H00

2
Out of stock

12

SPRING, FRONT (K=0.45) | SOFT:OPT

51171-28H10

2
Out of stock

12

SPRING, FRONT (K=0.49) | HARD:OPT

51171-28H20

2
Out of stock

13

BOLT, CENTER

51170-37FC0

2
Out of stock

14

O RING

51177-36E20

2

$5.43

In stock

15

BOLT, FORK

51351-02J00

—
Out of stock

16

O RING

51117-37F80

2
Out of stock

17

BUSH, FORK BOLT SLIDE

51123-28H10

4
Out of stock

18

O RING

51174-36E40

2

$5.63

In stock

19

O RING

51175-37F80

2
Out of stock

20

..BOLT,PLUG

51357-36F20

2

$15.77

In stock

21

...O-RING

51358-28E30

2

$4.83

In stock

22

O RING

51118-37F80

2
Out of stock

23

ROD, DAMPER

51190-02J00

—
Out of stock

24

ROD, PUSH

51191-10H10

2
Out of stock

25

BOLT

51328-37F80

4
Out of stock

26

RING STOPPER

51211-37FC0

2
Out of stock

27

PROTECTOR, RH

51501-28H10

1
Out of stock

28

PROTECTOR, LH

51511-28H00

1
Out of stock

29

BOLT (6X10)

09111-06098

6
Out of stock

30

EMBLEM,SUZUKI This part replaces 68661-29F00-DPZ.

68661-29F01-DPZ

2
Out of stock
