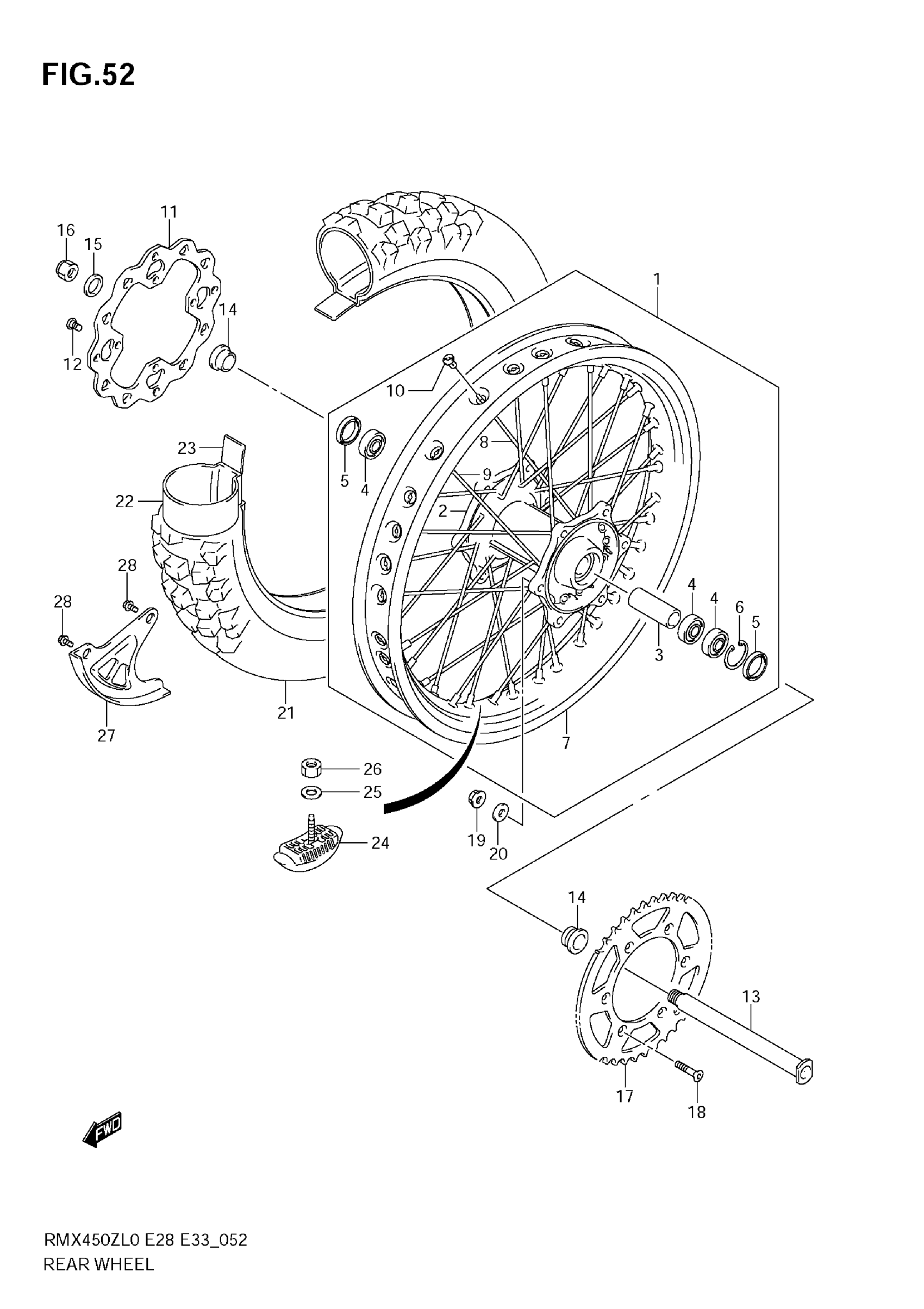

Suzuki RMX450ZL0 (2010) REAR WHEEL Diagram

#

Description
Price

1

WHEEL ASSY, REAR

64100-02J00

Unavailable

2

.HUB,REAR This part replaces 64111-35G20.

64111-35G30

$304.90

3

.SPACER,RR HUB BEARING

64731-35G01

$31.65

4

.BEARING (25X42X9) This part replaces 09262-25139.

09262-25192

$50.30

5

.SEAL,OIL (32X43X7) This part replaces 09283-32045.

09283-32049

$11.29

6

CIRCLIP This part replaces 08331-4142A.

08331-41429

$2.51

7

RIM, REAR WHEEL (1.8X2.15)

65311-02J00

Unavailable

8

SPOKE, WHEEL INNER

65321-02J00

$6.83

9

SPOKE, WHEEL OUTER

65322-02J00

$6.83

10

.NIPPLE,RR WHEEL

65325-35G10

$4.51

11

DISC,RR BRAKE

69211-28H10

$234.97

12

SCREW (8X15)

09139-08022

$4.83

13

AXLE,RR This part replaces 64711-35G01.

64711-35G10

$131.97

14

SPACER This part replaces 64751-35G00.

64751-35G01

$40.32

15

WASHER

09160-22081

$2.80

16

NUT

09159-22007

$17.33

17

SPROCKET, REAR

64511-02J00

Unavailable

18

SCREW (8X30.5)

09120-08017

$2.80

19

NUT

09159-08133

$5.00

20

WASHER

09160-08082

$1.64

21

TIRE, REAR (110/100-18) (DUNLOP) 110/100-18 64M | SPORTS D756

65110-29F00

Unavailable

22

TUBE ASSY, WHEEL INNER

65200-29F00

$85.57

23

PROTECTOR, INNER TUBE

65261-44AF0

$9.25

24

STOPPER,BEAD (2.15)

65270-29F00

$61.78

25

WASHER

08322-0108A

$2.18

26

NUT

08310-0008A

$1.86

27

COVER, REAR DISC This part replaces 69231-37F11.

69231-37F12

$18.90

28

BOLT (6X12)

09116-06197

$2.80
