2010 Suzuki RMX450ZL0 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2010 Suzuki RMX450ZL0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

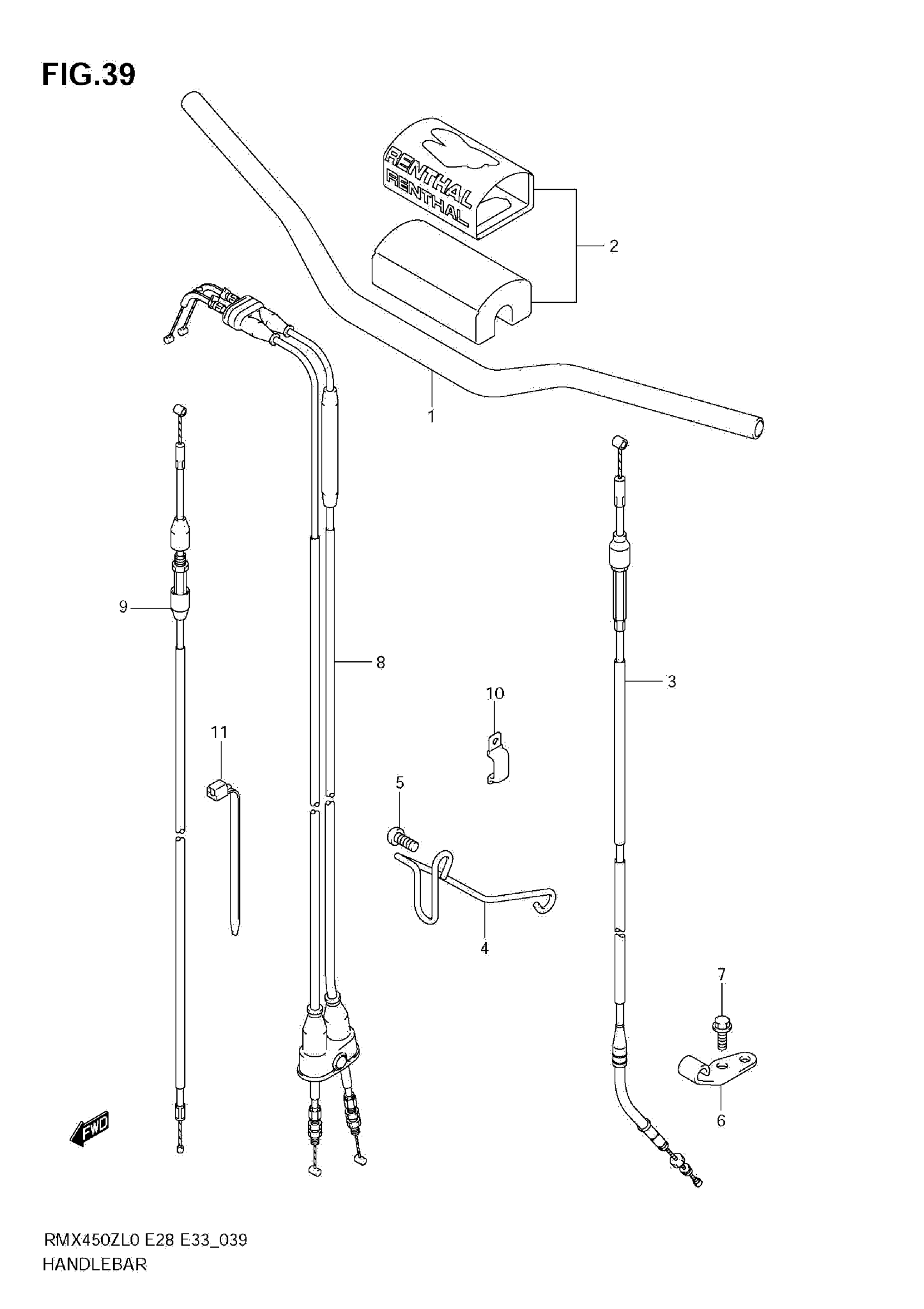

2010 Suzuki RMX450ZL0 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

56111-35G00

1
Out of stock

2

PAD, HANDLEBAR

56170-35G10

1
Out of stock

3

CABLE ASSY, CLUTCH

58200-02J00

1
Out of stock

4

GUIDE, CABLE

58311-28H10

1
Out of stock

5

BOLT

02112-0612A

2
Out of stock

6

STOPPER, CABLE

58634-02J00

1
Out of stock

7

BOLT

01547-0612A

2
Out of stock

8

CABLE SET,THROT This part replaces 58301-28H20.

58301-28H21

1
Out of stock

9

CABLE ASSY,HOT This part replaces 58900-02J00.

58900-02J01

1
Out of stock

10

CLAMP This part replaces 09403-10307.

09403-10328

1
Out of stock

11

CLAMP

09407-10403

1
Out of stock
