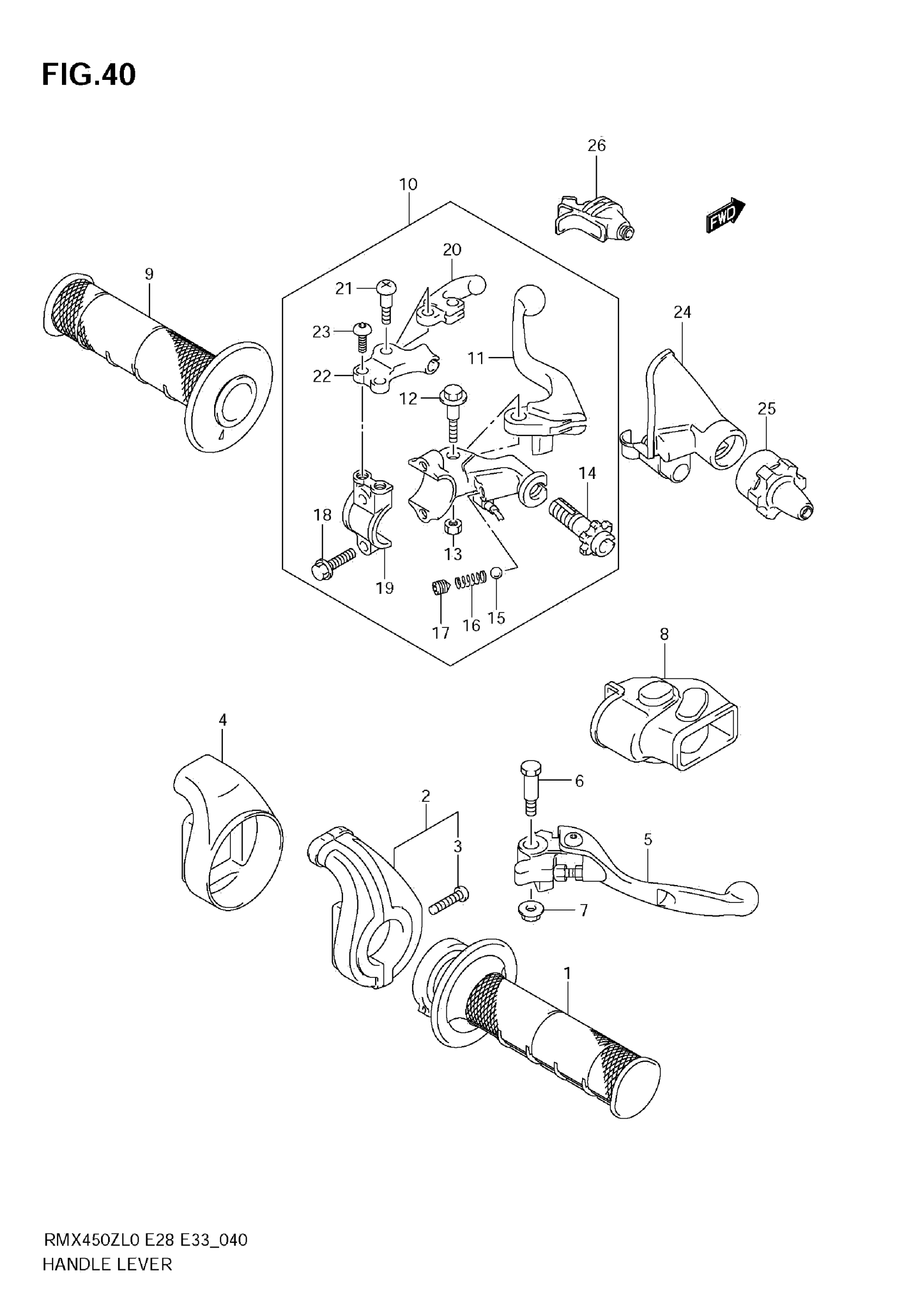

Suzuki RMX450ZL0 (2010) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE

57110-28H00

$85.15

2

CASE ASSY,THROTTLE This part replaces 57100-10H00.

57100-10H01

$124.42

3

SCREW

57141-35G00

$8.73

4

COVER, THROTTLE CASE

57129-35G00

$16.72

5

LEVER, BRAKE

57310-37F00

$32.49

6

BOLT, BRAKE LEVER

57431-14500

$5.75

7

NUT

08316-1006B

$2.50

8

COVER, BRAKE LEVER

57343-35G00

$21.48

9

GRIP,L

57211-28H00

$23.02

10

LEVER ASSY,CLUT This part replaces 57500-02J00.

57500-02J01

$259.65

11

LEVER, CLUTCH

57620-02J00

$53.97

12

BOLT, PIVOT

57431-35G00

$38.98

13

NUT

08319-2105A

$2.21

14

ADJUSTER, CABLE

57441-45G00

$225.57

15

BALL

06111-06003

$1.24

16

SPRING

09440-04003

$1.48

17

SCREW

09134-06009

$2.58

18

.BOLT, BRACKET

57513-29F10

$7.03

19

HOLDER

57512-35G00

$62.97

20

LEVER, HOTSTART

57515-35G00

$28.80

21

SCREW

57517-35G00

$10.25

22

HOLDER, LEVER

57514-35G00

Unavailable

23

SCREW

09139-05083

$3.42

24

COVER,CLUTCH LE This part replaces 57341-02J00.

57341-02J01

$12.35

25

COVER,CLUTCH ADJUSTER This part replaces 57342-37F00.

57342-37F01

$8.63

26

COVER,HOT START This part replaces 57516-35G00.

57516-35G01

$8.88
