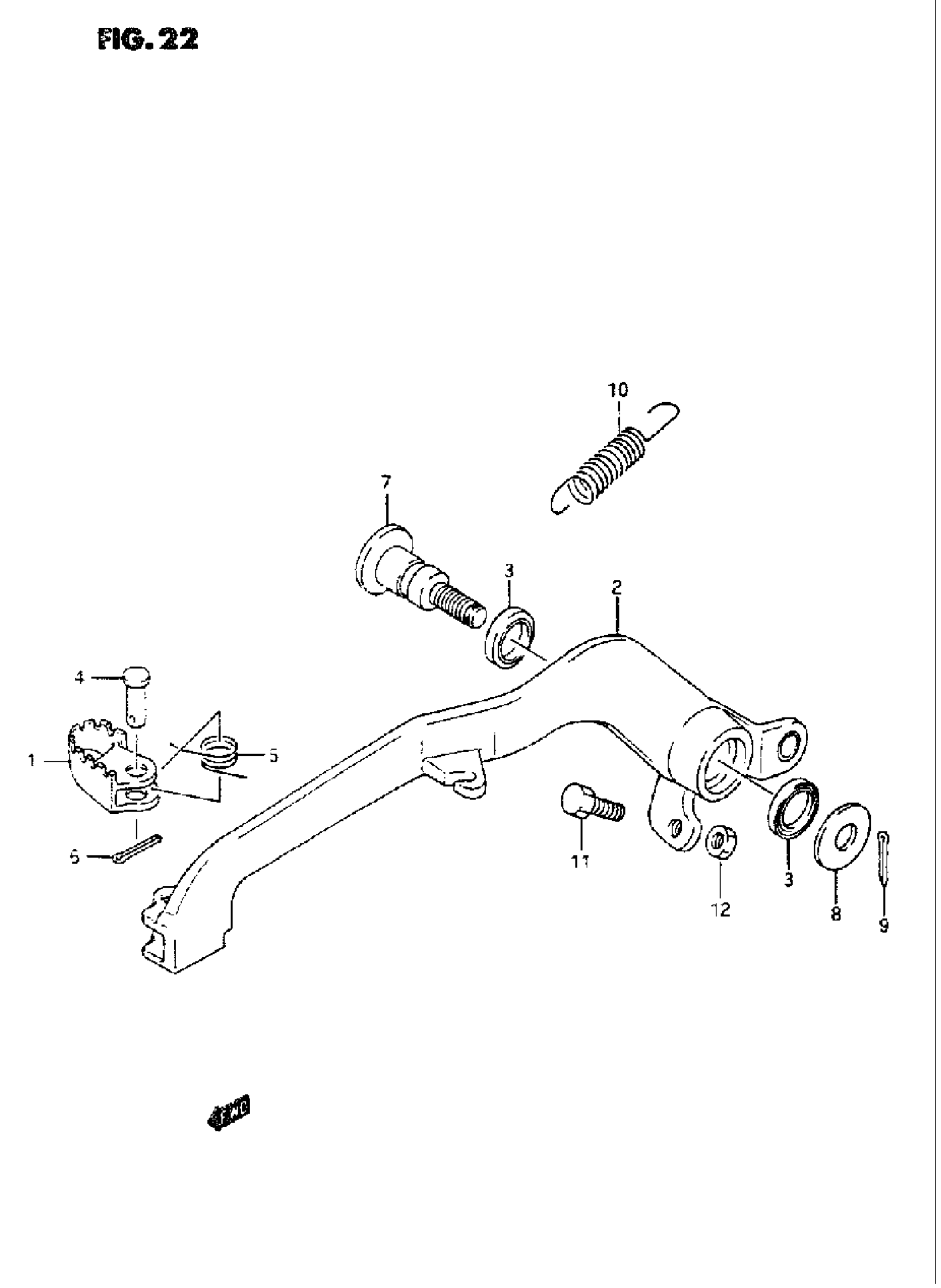

Find the part on the Rear Brake diagram for your 1995 Suzuki RMX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki RMX250 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE | MODEL K/L/M

43110-27C00

1
Out of stock

1

PEDAL, BRAKE | MODEL N/P/R/S

43110-43D00

1
Out of stock

2

ARM, REAR BRAKE | MODEL K/L

43120-28C00

1
Out of stock

2

ARM, REAR BRAKE | MODEL M This part replaces 43120-28C20.

43120-28C00

1
Out of stock

2

ARM, REAR BRAKE | MODEL N/P This part replaces 43120-28C30.

43120-28E10

1
Out of stock

2

ARM, REAR BRAKE | MODEL R/S

43120-28E10

1
Out of stock

3

DUST SEAL

09284-15006

2
Out of stock

4

PIN

09200-06062

1
Out of stock

5

SPRING | MODEL K/, /M

09444-11005

1
Out of stock

5

SPRING | MODEL N/P/R/S

09444-11006

1
Out of stock

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

7

SHAFT, BRAKE PEDAL

43142-27C00

1
Out of stock

8

THRUST WASHER

08211-10261

1
Out of stock

9

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock

10

SPRING This part replaces 09443-11039.

09443-11039-XC0

1
Out of stock

11

BOLT

09100-06009

1
Out of stock

12

.NUT | MODEL K/L/M/N/P/R This part replaces 08310-11067.

08310-00067

1
Out of stock

12

NUT | MODEL S This part replaces 08310-00063.

08310-0006A

1
Out of stock
