1995 Suzuki RMX250 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 1995 Suzuki RMX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

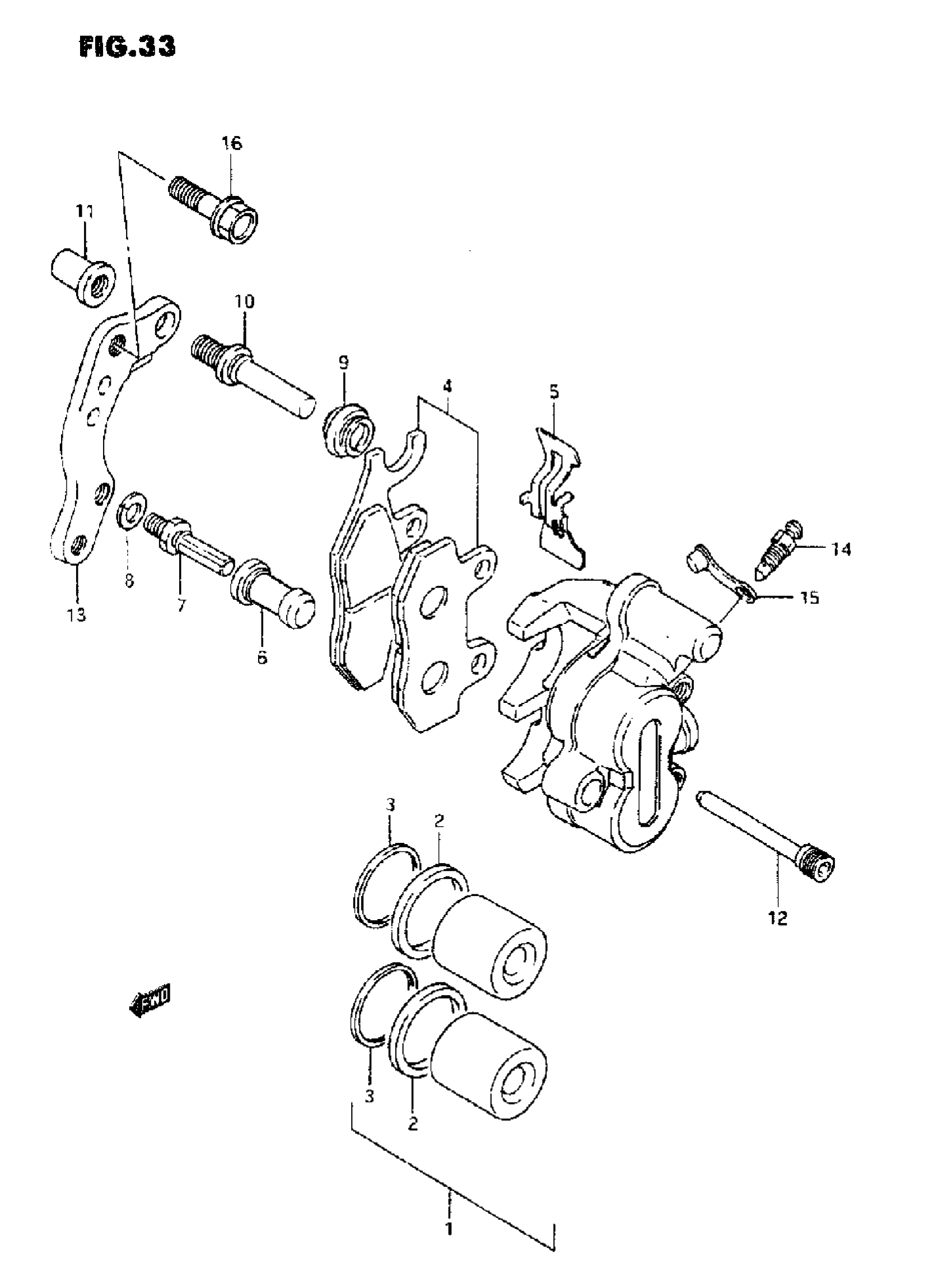

1995 Suzuki RMX250 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON SET

59300-26840

1
Out of stock

2

2

$9.26

In stock

3

OLJST SEAL

59108-00B20

2
Out of stock

4

PAD SET This part replaces 59300-27830.

59300-08810

1
Out of stock

5

SPRING

59315-00B20

1

$13.90

In stock

6

BOOT

59386-13A00

1
Out of stock

7

BOLT

59382-13A00

1
Out of stock

8

WASHER

59314-13A00

1
Out of stock

9

BOCIT

59303-14500

1
Out of stock

10

PIN

59387-00B20

1
Out of stock

11

NUT

59388-00B20

1
Out of stock

12

PIN

59345-00B20

2

$14.56

In stock

13

BRACKET

59351-00B20

1

$87.92

In stock

14

BLEEDER

59121-01A00

1
Out of stock

15

CAP

59122-01A00

1
Out of stock

16

BOLT (8X29) This part replaces 09103-08156.

09103-08409

2
Out of stock

16

CALIPER ASSY,FR This part replaces 59300-27C10.

59300-27C11-999

1
Out of stock
