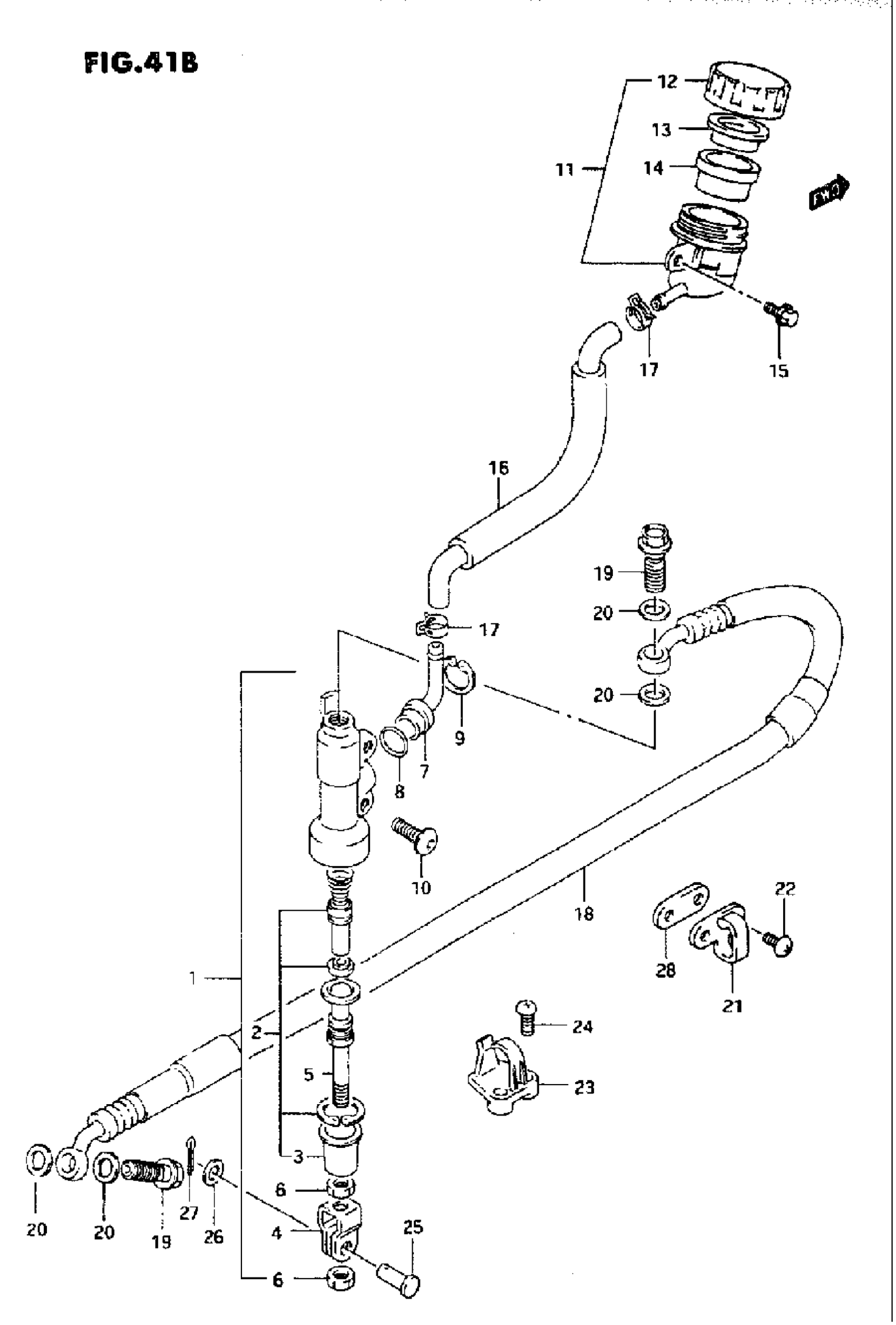

Suzuki RMX250 (1995) REAR MASTER CYLINDER (MODEL M/N/P/R/S) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-28C00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$24.34

3

.BOOT

69691-00A00

$5.00

4

YUKE

69692-00B21

$19.22

5

ROD, PUSH

69670-00B21

$33.02

6

NOT

69693-05A00

$1.86

7

CONNECTOR

69672-00B20

$6.42

8

0 RING

69686-34200

$2.80

9

CIRCLIP

69674-00B20

$3.73

10

SCREW | MODEL N

09139-06030

$3.33

10

SCREW(6X16) | MODEL N/P/R/S This part replaces 09139-06067.

09139-06237

$2.35

11

TANK ASSY, RESERVOIR

69740-03D10

$85.27

12

CAP

69669-03D10

$25.55

13

PLATE

69668-00B20

$8.65

14

DIAPHRGM

69667-00B20

$20.82

15

BOLT | MODEL M This part replaces 01517-06128.

01550-06127

$2.31

15

BOLT | MODEL N-/P/R/S

01547-06127

$1.67

16

HOSE, RESERVOIR TANK

69731-27C00

Unavailable

17

CLAW *

69735-00B20

$5.43

18

HOSE, REAR BRAKE

69480-05D10

Unavailable

19

UNION | MODEL M/N/P This part replaces 09360-10034.

09360-10062

$5.81

19

UNION | MODEL R/S This part replaces 09360-10040.

09360-10062

$5.81

20

WASHER (10X15X1.5)

09161-10009

$1.83

21

GUIDE, BRAKE HOSE, FRONT

61196-27C20

$8.83

22

SCREW | MODEL M/N/P

02142-05167

$1.38

22

SCREW | MODEL R/S This part replaces 02142-05163.

02142-0516A

$1.43

23

GUIDE, BRAKE HOSE, REAR

61196-03D00

$4.16

24

SCREW, OUTER | MODEL M/N/P This part replaces 02112-35168.

02112-35167

$2.87

24

SCREW | MODEL R/S This part replaces 02112-35163.

02112-3516A

$2.65

25

PIN

09200-08048

$2.80

26

WASHER

09160-08074

Unavailable

27

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

28

SEAT, HOSE GUIDE

61197-27C00

Unavailable
