2006 Suzuki RM85 Rear Wheel Diagram

← All diagrams

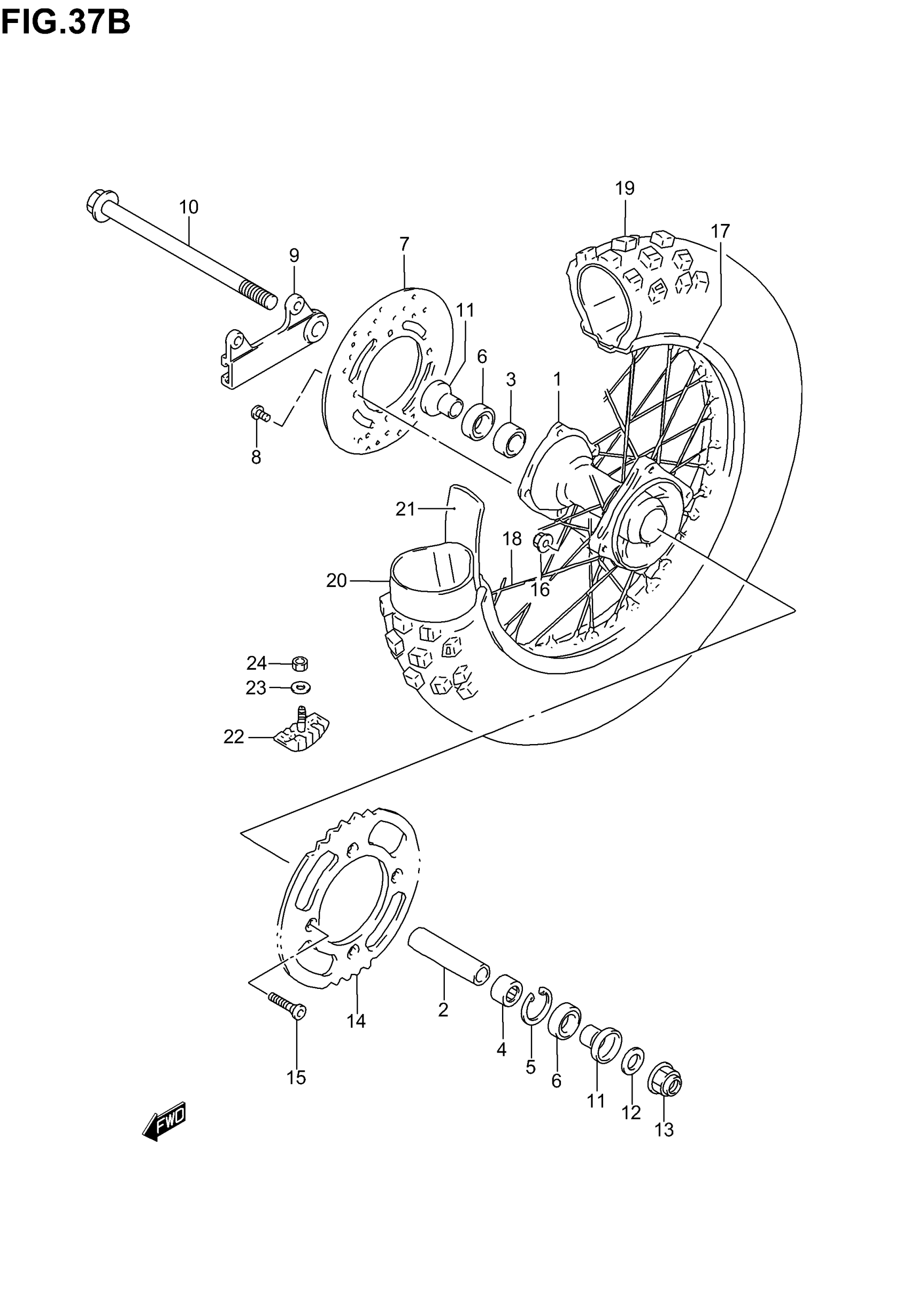

Find the part on the Rear Wheel diagram for your 2006 Suzuki RM85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki RM85 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64111-02B43

1
Out of stock

2

SPACER, BEARING (15.3X21.7X97)

64731-02B40

1
Out of stock

3

BEARING, RH

08123-60027

1
Out of stock

4

BEARING, LH (15X35X11)

09262-15021

1
Out of stock

5

CIRCLIP This part replaces 08331-41356.

08331-41359

1
Out of stock

6

SEAL, DUST (20X35X7)

09283-20024

2
Out of stock

7

DISC,REAR BRAKE This part replaces 69211-02B40.

69211-02B41

1
Out of stock

8

SCREW This part replaces 02122-06123.

02122-0612A

4
Out of stock

9

BRACKET, CALIPER

69721-03B00

1
Out of stock

10

AXLE, REAR

64711-03B70

1
Out of stock

11

SPACER, AXLE

64741-03B71

2
Out of stock

12

WASHER (14.5X30X3.2) This part replaces 09160-14033.

09160-14062

1
Out of stock

13

NUT This part replaces 08319-31148.

08319-3114A

1
Out of stock

14

SPROCKET, REAR (NT:47)

64511-03B00

1
Out of stock

14

SPROCKET, REAR (NT:46) | OPT

64511-03B10

1
Out of stock

14

SPROCKET, REAR (NT:48) | OPT

64511-03B20

1
Out of stock

14

SPROCKET, REAR (NT:49) | OPT

64511-03B30

1
Out of stock

15

SCREW (8X30.5)

09120-08010

4
Out of stock

16

NUT

09159-08067

4
Out of stock

17

RIM, WHEEL (1.60X14)

65311-02B50

1
Out of stock

18

SPOKE ASSY, WHEEL

65320-02B60

1
Out of stock

19

TIRE, REAR (90/100-14 49M D737)(DUNLOP)

65110-02B70

1
Out of stock

20

TUBE ASSY, INNER

65200-02B70

1
Out of stock

21

PROTECTOR, INNER TUBE

65261-02B40

1
Out of stock

22

STOPPER, BEAD

65270-43D00

1
Out of stock

23

WASHER This part replaces 08322-01083.

08322-0108A

1
Out of stock

24

NUT This part replaces 08310-00083.

08310-0008A

1
Out of stock
