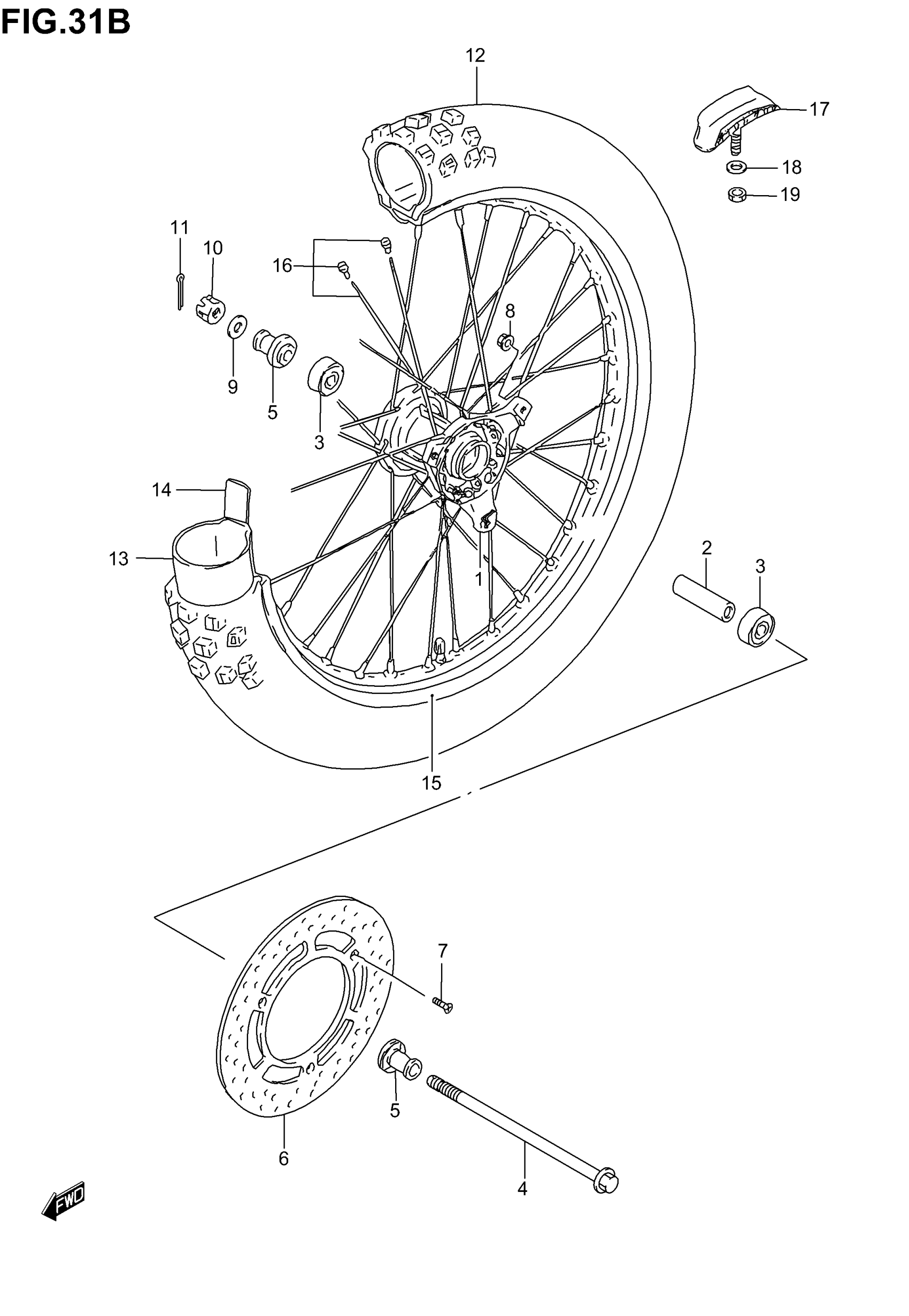

Suzuki RM85 (2006) FRONT WHEEL (RM85LK3/LK4) Diagram

#

Description
Price

1

HUB, FR WHEEL

54111-02B42

$352.00

2

SPACER, FR HUB BEARING

54731-02B40

$15.43

3

BEARING

08133-62017

$16.90

4

AXLE, FRONT

54711-03B00

$52.68

5

SPACER, FR AXLE

54740-02B40

$14.76

6

DISC,FRONT BRAK This part replaces 59221-02B20.

59221-02B21

Unavailable

7

SCREW (6X22)

09126-06009

$2.95

8

NUT

08319-31067

$2.01

9

WASHER

08211-12204

$4.70

10

NUT This part replaces 08314-40123.

08314-4012A

$2.53

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

12

TIRE, FRONT (70/100-19 42M D737F)(DUNLOP)

55110-03B50

Unavailable

13

TUBE ASSY, INNER

55200-03B40

Unavailable

14

PROTECTOR, INNER TUBE

55261-03B30

$7.77

15

RIM, FRONT WHEEL (1.40X19) | RM85LK3

55311-03B50

Unavailable

15

RIM, FRONT WHEEL (1.40X19) | RM85LK4

55311-03B60

Unavailable

16

SPOKE SET, FRONT WHEEL | RM85LK3

55320-03B50

$63.26

16

SPOKE SET, FRONT WHEEL | RM85LK4

55320-03B60

Unavailable

17

STOPPER, BEAD

65270-28600

$61.78

18

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

19

NUT This part replaces 08310-00083.

08310-0008A

$1.86
