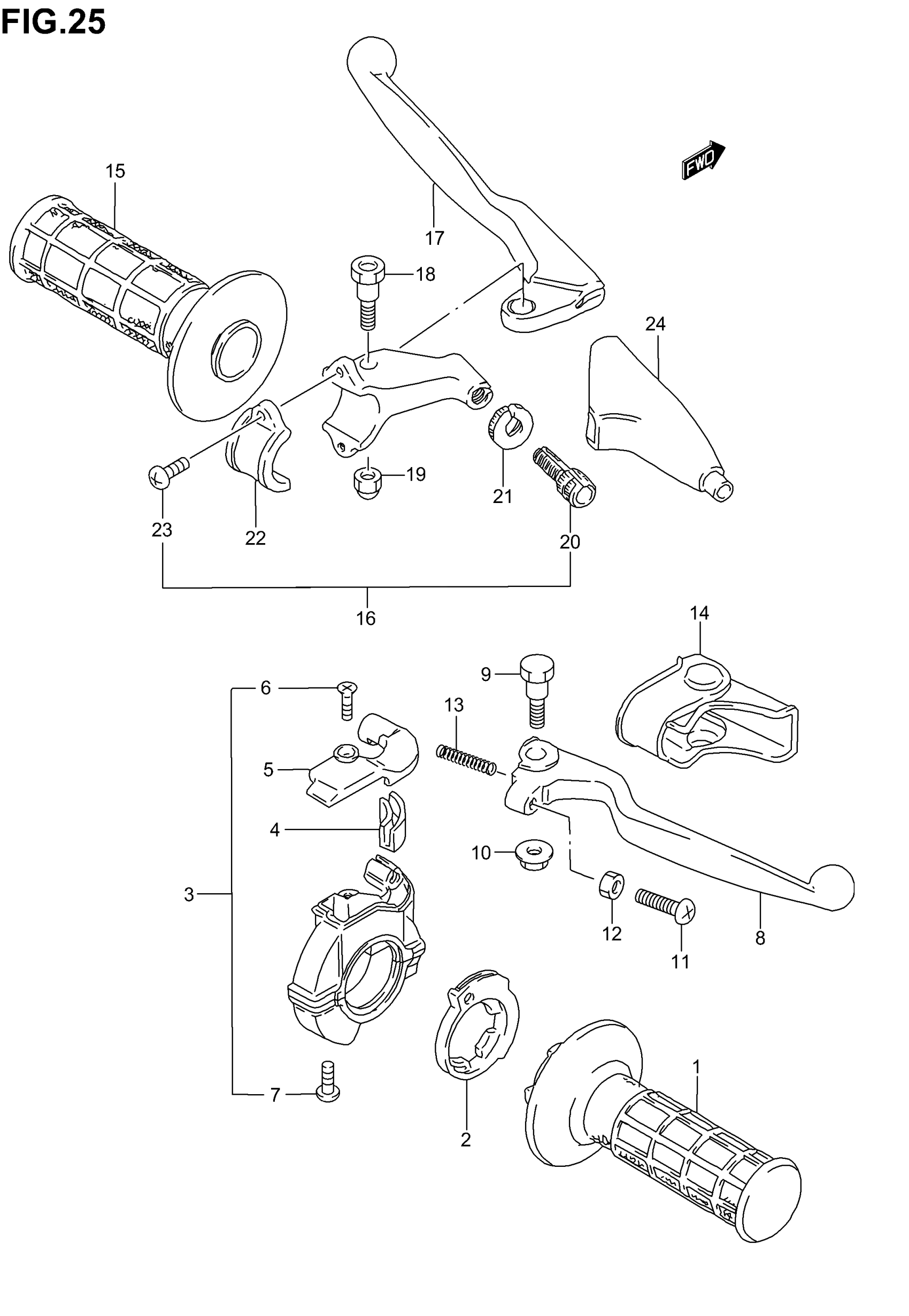

Suzuki RM85 (2006) HANDLE LEVER (MODEL K2/K3/K4) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-27C00

$24.14

2

ROTOR, THROTTLE

57114-20410

$6.80

3

CASE ASSY, THROTTLE | Includes Item(s) 4 - 7

57100-20411

Unavailable

4

GUIDE, PIECE

57122-20410

$7.22

5

COVER

57129-20411

$13.50

6

SCREW This part replaces 02122-04103.

02122-0410A

$1.22

7

SCREW

02112-05167

$1.97

8

LEVER, BRAKE

57421-27C00

$12.66

9

BOLT, BRAKE LEVER

57431-14500

$5.75

10

NUT This part replaces 08316-10063.

08316-1006B

$2.50

11

BOLT, ADJUST

57431-14511

$5.46

12

NUT This part replaces 08310-00053.

08310-0005A

$1.83

13

SPRING, RETURN

57318-14502

$4.09

14

COVER, BRAKE LEVER

57341-14501

$10.58

15

GRIP LH

57211-27C00

$11.25

16

LEVER ASSY, CLUTCH | Includes Item(s) 17 - 23

57500-14300

Unavailable

17

LEVER, CLUTCH

57620-14300

$18.53

18

BOLT

57431-14301

$6.05

19

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

20

ADJUSTER, CABLE

57441-14210

$11.20

21

NUT

57442-14200

$6.32

22

BRACKET

57512-14300

$46.20

23

SCREW

09125-05102

$1.61

24

COVER, CLUTCH LEVER | MODEL K2/K3 This part replaces 57341-40001.

57341-40003

$5.02

24

COVER, CLUTCH LEVER | MODEL K4 This part replaces 57341-40002.

57341-40003

$5.02
