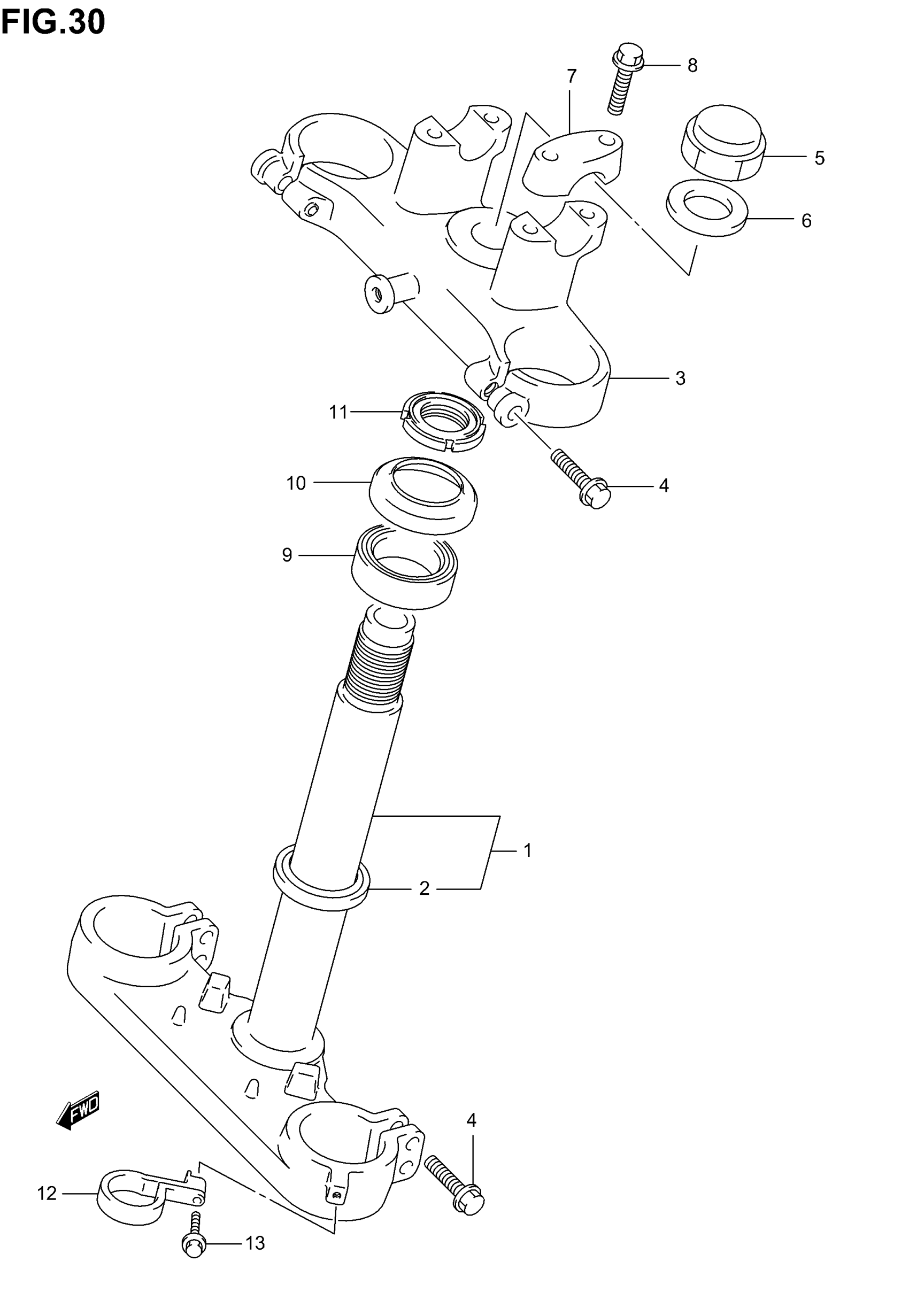

Suzuki RM85 (2006) FRONT FORK BRACKET Diagram

STEM, STEERING | Includes Item(s) 2

51410-03B30

Unavailable

.BEARING (26X47X15) This part replaces 09265-26001.

09265-26002

$51.28

STEM HEAD, STEERING

51310-03B30

$344.90

BOLT, STEM | MODEL K2/K3/K4 This part replaces 51328-36F20.

51328-36F00

$10.07

BOLT | MODEL K5/K6

51328-37F80

$6.64

NUT

51353-11D50

$30.32

WASHER | MODEL K2/K3

51356-24B01

$7.13

WASHER | MODEL K4/K5/K6

51356-02B60

$15.60

HOLDER, HANDLE

56211-36F00

$38.53

BOLT | MODEL K2/K3/K4

51321-36F00

$5.44

BOLT | MODEL K5/K6

51321-37F90

$8.21

BEARING (25X47X15) This part replaces 09265-25030.

09265-25038

$41.11

SEAL, STEERING UPR DUST

51643-03B00

$14.73

NUT, STEERING

51631-03B00

$26.32

GUIDE, FRONT BRAKE HOSE

58621-03B00

$13.55

BOLT This part replaces 09103-06235.

01547-06207

$2.01
