2006 Suzuki RM85 Rear Swinging Arm Diagram

← All diagrams

Find the part on the Rear Swinging Arm diagram for your 2006 Suzuki RM85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

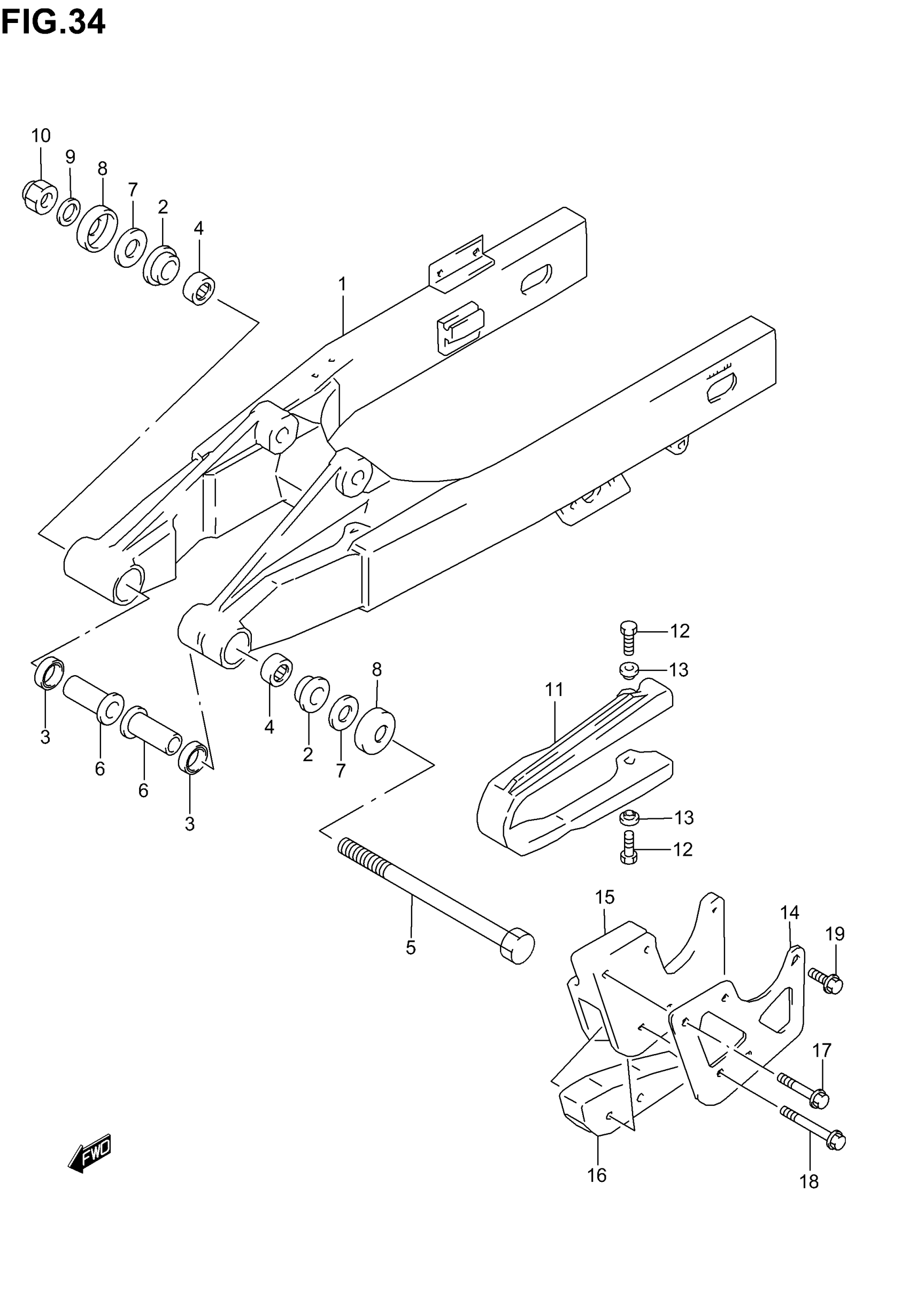

2006 Suzuki RM85 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 4

61000-03B21

1
Out of stock

2

BUSHING

61261-02B00

2
Out of stock

3

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

2
Out of stock

4

BEARING (17X24X30)

09263-17038

2
Out of stock

5

SHAFT, PIVOT

61211-02B40

1
Out of stock

6

SPACER, PIVOT

61251-02B40

2
Out of stock

7

THRUST WASHER

08211-12282

2
Out of stock

8

COVER SWGARM PIVOT This part replaces 61262-03B00.

61262-03B01

2
Out of stock

9

WASHER This part replaces 08322-01123.

08322-0112B

1
Out of stock

10

NUT This part replaces 08319-21128.

08319-2112A

1
Out of stock

11

BUFFER, CHAIN TOUCH DEFENSE

61273-02B20

1
Out of stock

12

BOLT

09103-06234

2
Out of stock

13

WASHER

09169-06057

2
Out of stock

14

PLATE, GUIDE CHAIN OUTER

61342-02B40

1
Out of stock

15

GUIDE, CHAIN

61343-02B40

1
Out of stock

16

DEFENSE, CHAIN GUIDE

61348-02B20

1
Out of stock

17

BOLT, UPPER (6X30)

09103-06251

2
Out of stock

18

BOLT, LOWER (6X40)

09103-06241

2
Out of stock

19

BOLT, REAR (6X16)

09103-06234

1
Out of stock
