2006 Suzuki RM85 Rear Shock Absorber Diagram

← All diagrams

Find the part on the Rear Shock Absorber diagram for your 2006 Suzuki RM85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

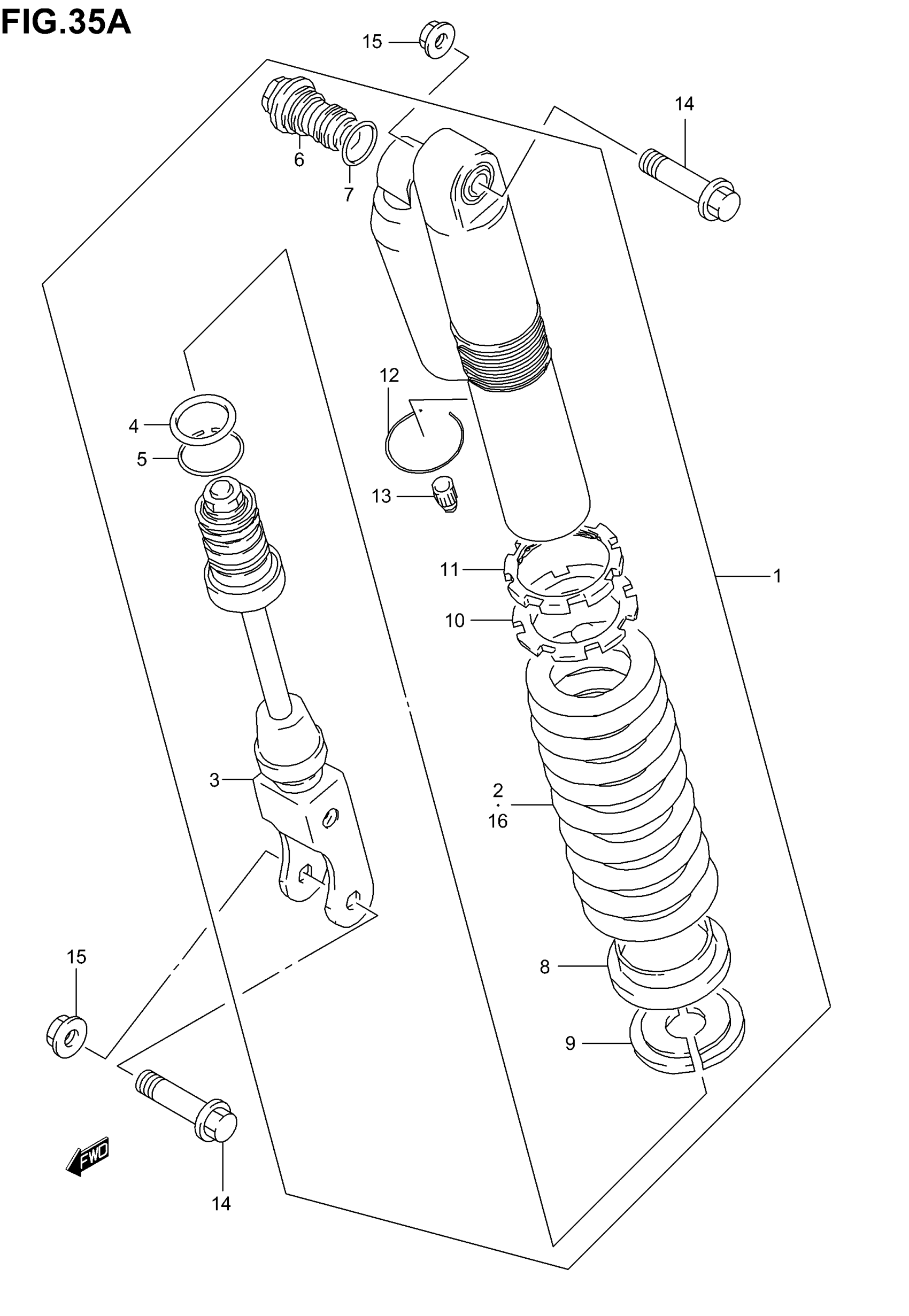

2006 Suzuki RM85 Rear Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, REAR SHOCK | RM85K4 E3

62100-03B80-163

1
Out of stock

1

ABSORBER ASSY, REAR SHOCK | RM85K4 E28

62100-03B70-163

—
Out of stock

1

ABSORBER ASSY, REAR SHOCK | RM85LK4 E3

62100-03BA0-163

1
Out of stock

1

ABSORBER ASSY, REAR SHOCK | RM85LK4 E28; Includes Item(s) 2 - 13

62100-03B90-163

—
Out of stock

2

SPRING, REAR (K=4.8) | RM85K4

62211-03B40

1
Out of stock

2

SPRING, REAR (K=5.0) | RM85LK4

62211-03B50

1
Out of stock

3

ROD, PISTON

62120-03B60

1
Out of stock

4

O RING

62153-03B30

1

$9.70

In stock

5

RING, ROD STOPPER

62279-03B30

1
Out of stock

6

BOLT, PLUG

62130-03B30

1
Out of stock

7

O RING

51177-36E20

1
Out of stock

8

SEAT, SPRING

62249-17C00

1

$33.67

In stock

9

SEAT STOPPER, SPRING

62225-17C00

2

$36.87

In stock

10

ADJUSTER, SPRING

62191-20400

1
Out of stock

11

NUT, SPRING ADJUSTER

62194-20400

1
Out of stock

12

RING, STOPPER

62278-03B30

1
Out of stock

13

CAP

51294-20400

1

$8.32

In stock

14

BOLT

62648-14500

2

$4.46

In stock

15

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

2
Out of stock

16

SPRING, REAR (K=4.6) (SOFT) | OPT RM85K4

62211-03B60

1
Out of stock

16

SPRING, REAR (K=5.0) (HARD) | OPT RM85K4

62211-03B50

1
Out of stock

16

SPRING, REAR (K=4.8) (SOFT) | OPT RM85LK4

62211-03B40

1
Out of stock

16

SPRING, REAR (K=5.2) (HARD) | OPT RM85LK4

62211-03B70

1
Out of stock
