1992 Suzuki RM250N Radiator Diagram

← All diagrams

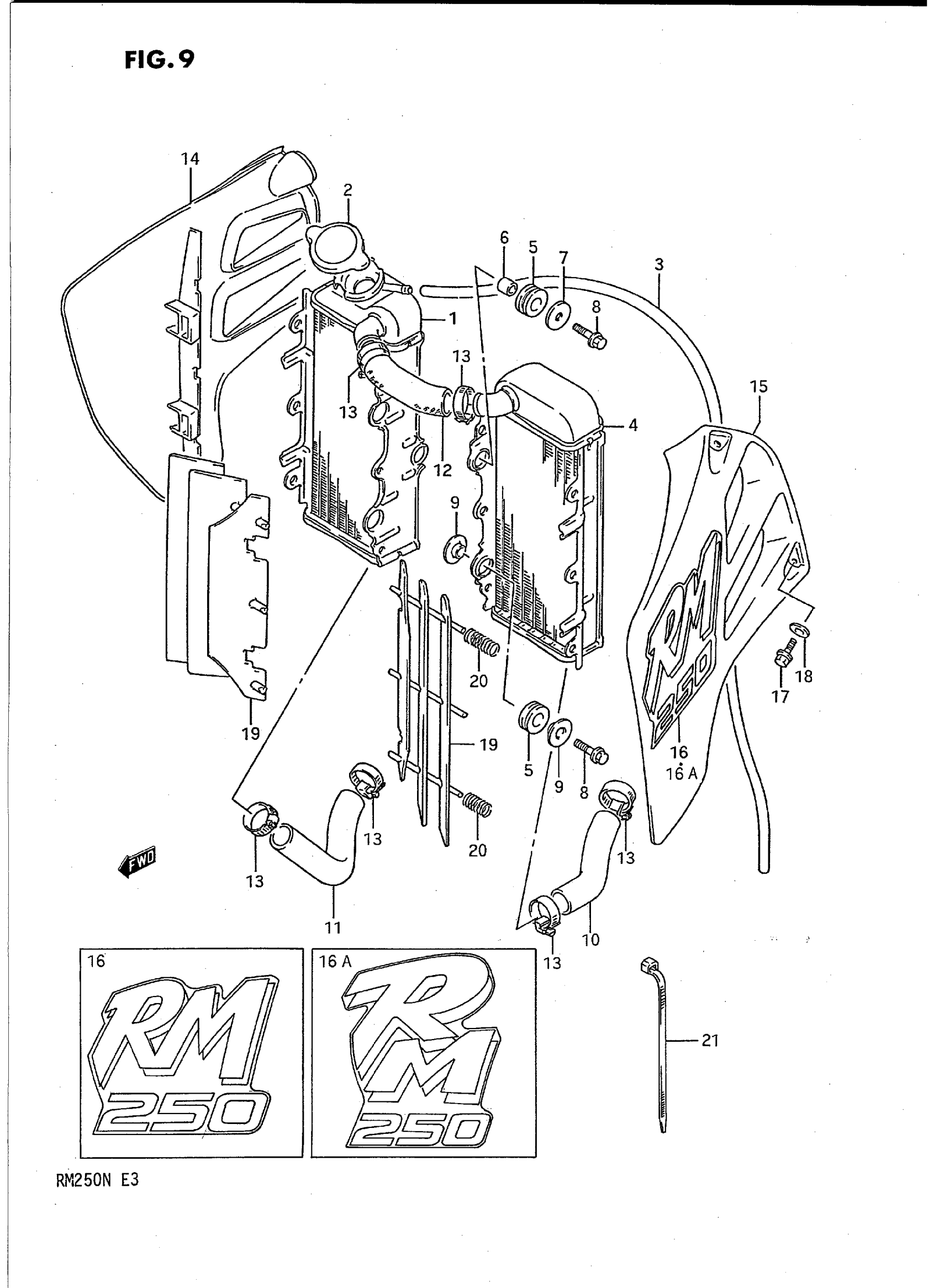

Find the part on the Radiator diagram for your 1992 Suzuki RM250N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki RM250N Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR, RH This part replaces 17710-28C00.

17710-28C01

1
Out of stock

2

CAP, RADIATOR This part replaces 17730-20930.

17730-08J00

1
Out of stock

3

HOSE (5X8X2000) | L:1000->650 This part replaces 09351-50801-00A.

09351-50803-00B

1
Out of stock

4

RADIATOR, LH

17720-26C00

1
Out of stock

5

CUSHION, SUPPORT

17787-19A00

6

$3.55

In stock

6

SPACER (6.5X10.5X12) | MODEL K

09180-07004

4
Out of stock

6

SPACER (6.5X10.5X12) | MODEL L

09180-06221

4
Out of stock

7

WASHER (6.5X24X1.2) This part replaces 09160-06002.

09160-06114

4
Out of stock

8

BOLT

01547-06257

6
Out of stock

9

WASHER, RADIATOR SUPPORT

17781-26C00

4
Out of stock

10

HOSE, INLET

17851-28C00

1
Out of stock

11

HOSE, OUTLET | MODEL K

17852-28C00

1
Out of stock

11

HOSE, OUTLET | MODEL L

17852-28C10

1
Out of stock

12

HOSE, CYLINDER JOINT | MODEL K This part replaces 17853-26C00.

17851-01A00

1
Out of stock

12

HOSE, CYLINDER JOINT | MODEL L This part replaces 17853-28C00.

17851-01A00

1
Out of stock

13

CLAMP This part replaces 09402-25502.

09402-28511

6
Out of stock

14

COVER, RADIATOR RH

17761-28C00-25Y

1
Out of stock

15

COVER, RADIATOR LH

17762-28C00-25Y

1
Out of stock

16

EMBLEM, RADIATOR COVER | MODEL K This part replaces 68661-28C10-2DP.

68661-28C30-3MB

2
Out of stock

16A

EMBLEM, RADIATOR COVER | MODEL L

68661-28C30-3MB

2
Out of stock

17

BOLT

01547-06127

4
Out of stock

18

WASHER (6.5X20X1.5)

09168-06027

4
Out of stock

19

LOUVER, RADIATOR

17831-26C00

2
Out of stock

20

SPRING | MODEL KMODEL L This part replaces 09440-11024.

09440-11024-XC0

4
Out of stock

21

CLAMP

09407-18402

1
Out of stock
