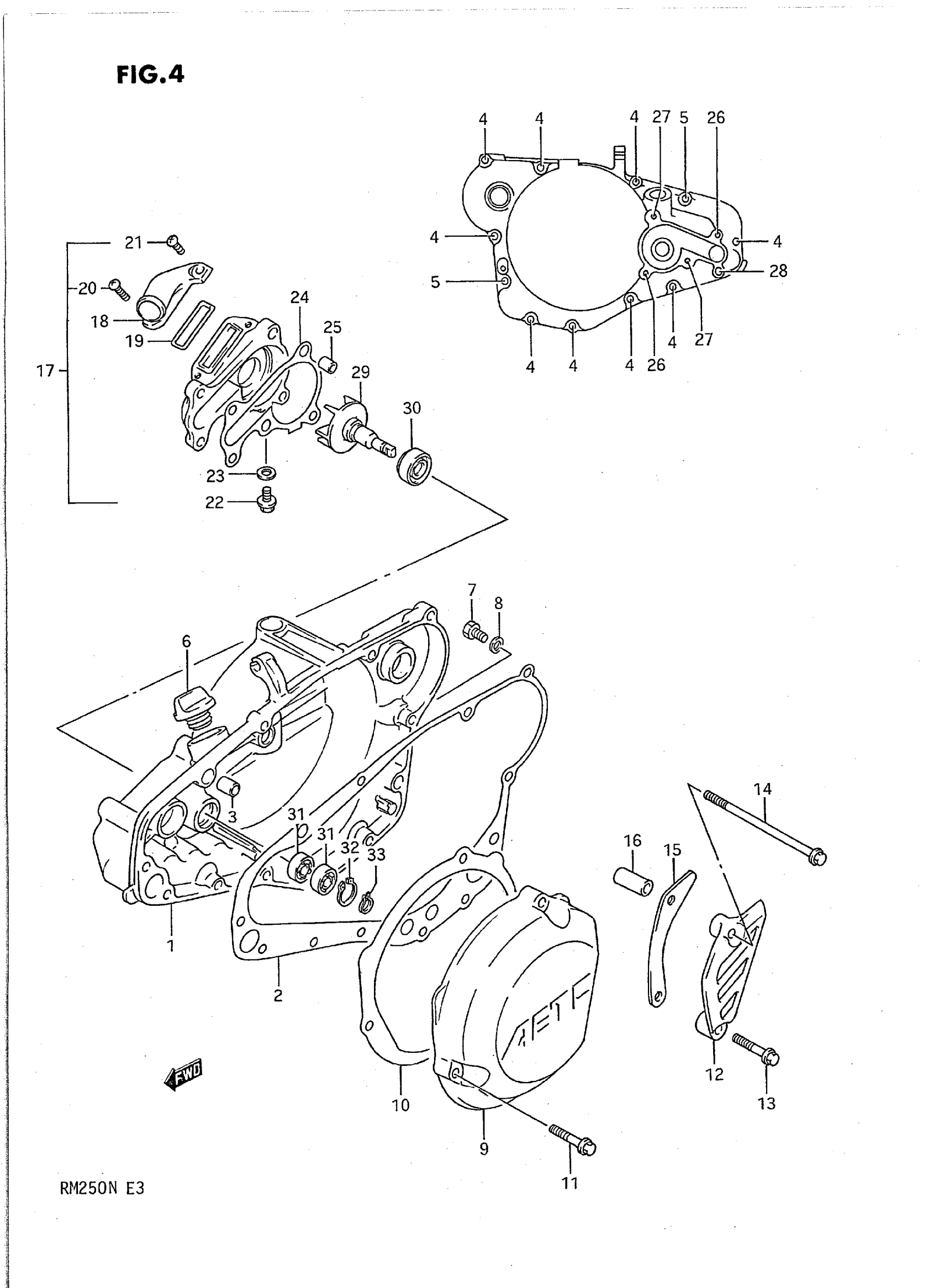

Suzuki RM250N (1992) CRANKCASE COVER- WATER PUMP (MODEL K) Diagram

#

Description
Price

1

COVER, CLUTCH

11341-28C00

Unavailable

2

GASKET, CLUTCH COVER

11482-28C01

$22.10

3

PIN

04211-09129

$1.64

4

BOLT

01547-06257

$2.01

5

BOLT

01547-06357

$2.01

6

PLUG SET This part replaces 09200-20810.

09200-20811

$3.63

7

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.38

8

GASKET

09168-06004

$1.43

9

COVER, MAGNETO This part replaces 11351-28C00.

11351-28E00

Unavailable

10

GASKET, MAGNETO COVER This part replaces 11483-28C00.

11483-28C01

Unavailable

11

BOLT

01547-06257

$2.01

12

COVER, ENGINE SPROCKET This part replaces 11360-27C00.

11360-28E00

$30.12

13

BOLT

01547-06257

$2.01

14

BOLT This part replaces 01547-06958.

01547-06957

$3.14

15

PLATE, CHAIN GUIDE

27641-28C10

Unavailable

15

PLATE, CHAIN GUIDE | OPT,FOR NT:14

27641-28C00

Unavailable

15

PLATE, CHAIN GUIDE | OPT,FOR NT:15

27641-28C20

Unavailable

16

SPACER

09180-06203

$2.80

17

CASE ASSY, WATER PUMP | Includes Item(s) 18 - 23

17410-28C01

Unavailable

18

CONNECTOR

17412-28C00

Unavailable

19

O RING

17415-01C00

Unavailable

20

SCREW

02112-06167

$1.43

21

SCREW This part replaces 02112-06108.

02112-06107

$1.45

22

BOLT, DRAIN This part replaces 17415-00B00.

17415-43D00

$3.79

23

GASKET This part replaces 17413-00B00.

17413-28C10

$2.05

24

GASKET, WATER PUMP CASE

17431-28C00

Unavailable

25

PIN

04211-09129

$1.64

26

BOLT

01547-06207

$2.01

27

BOLT

01547-06307

$2.06

28

BOLT

01547-06857

$3.58

29

INPELLER, WATER PUMP

17491-28C00

Unavailable

30

OIL SEAL, WATER PUMP This part replaces 17461-28C00.

17461-03B00

$7.56

31

BEARING (8X19X6)

08113-06980

$11.44

32

CIRCLIP

09381-19003

$2.33

33

CIRCLIP This part replaces 08331-31086.

08331-31089

$1.77
