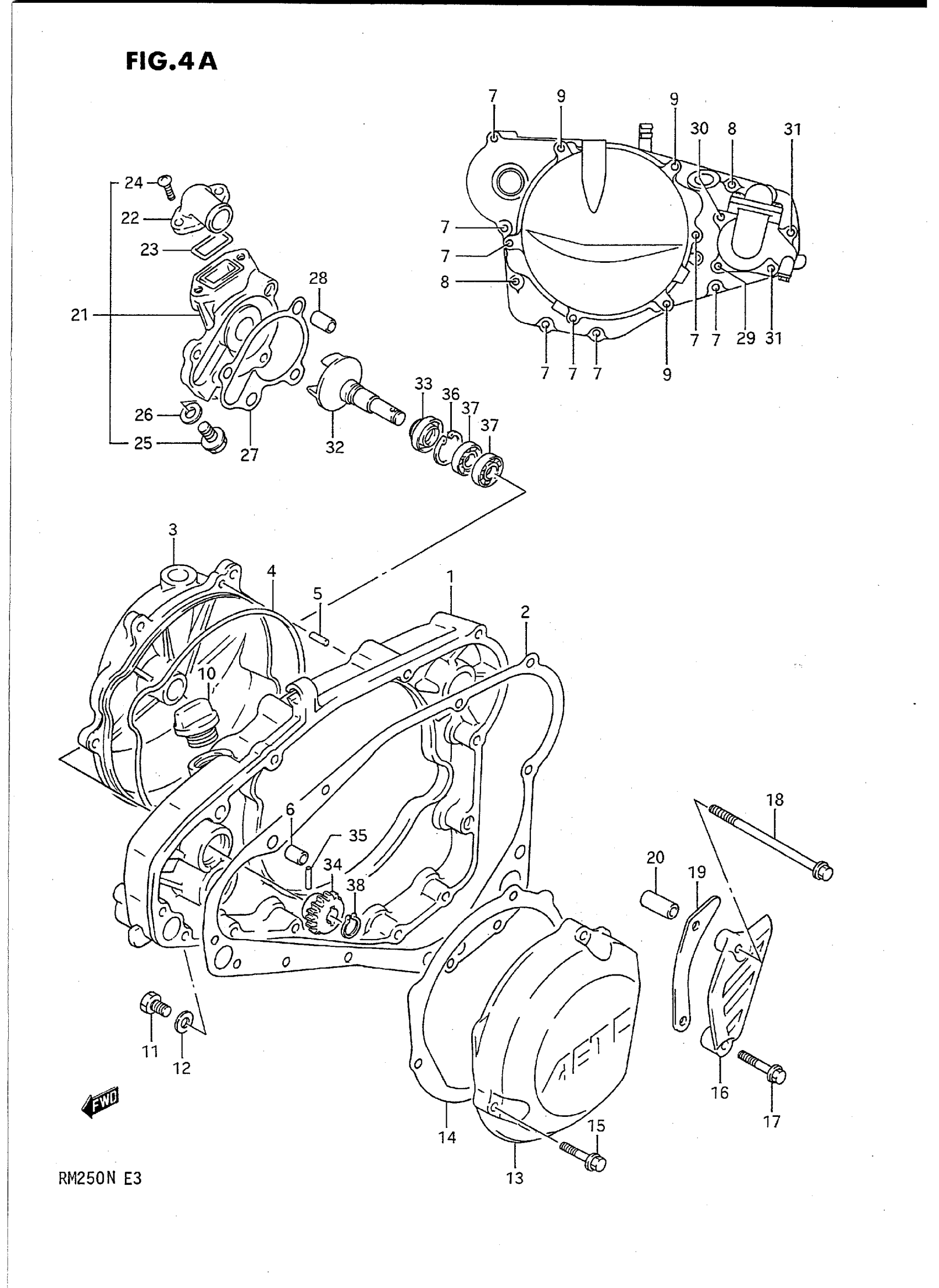

Suzuki RM250N (1992) CRANKCASE COVER - WATER PUMP (MODEL L/M/N) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL L/M This part replaces 11341-28C10.

11340-28821

Unavailable

1

COVER, CLUTCH | MODEL N This part replaces 11341-28C30.

11340-28811

Unavailable

2

GASKET, CLUTCH COVER

11482-28C01

$22.10

3

COVER, CLUTCH OUTER This part replaces 11371-28C10.

11371-28E02

Unavailable

4

O RING, CLUTCH COVER OUTER

11484-28C10

Unavailable

5

PIN (4X13.8)

04221-04089

$1.10

6

PIN

04211-09129

$1.64

7

BOLT

01547-06257

$2.01

8

BOLT

01547-06357

$2.01

9

BOLT | MODEL L/M

01547-06657

$2.77

9

BOLT | MODEL N

01547-06707

$2.77

10

PLUG SET This part replaces 09200-20810.

09200-20811

$3.63

11

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.38

12

GASKET

09168-06004

$1.43

13

COVER, MAGNETO This part replaces 11351-28C00.

11351-28E00

Unavailable

14

GASKET, MAGNETO COVER | MODEL L This part replaces 11483-28C00.

11483-28C01

Unavailable

14

GASKET, MAGNETO COVER | MODEL M/N

11483-28C01

Unavailable

15

BOLT

01547-06257

$2.01

16

COVER, ENGINE SPROCKET This part replaces 11360-27C00.

11360-28E00

$30.12

17

BOLT

01547-06257

$2.01

18

BOLT This part replaces 01547-06958.

01547-06957

$3.14

19

PLATE, CHAIN GUIDE

27641-28C10

Unavailable

19

PLATE, CHAIN GUIDE | OPT,FOR NT:14

27641-28C00

Unavailable

19

PLATE, CHAIN GUIDE | OPT,FOR NT:15

27641-28C20

Unavailable

20

SPACER

09180-06203

$2.80

21

CASE ASSY, WATER PUMP | Includes Item(s) 22 - 26 This part replaces 17410-28C10.

17410-28E00

Unavailable

22

CONNECTOR This part replaces 17412-28C10.

17412-28E00

Unavailable

23

O RING

17414-14300

$2.80

24

SCREW This part replaces 02112-06164.

02112-0616A

$1.43

25

BOLT, DRAIN This part replaces 17415-00B00.

17415-43D00

$3.79

26

GASKET

17413-28C10

$2.05

27

GASKET, WATER PUMP CASE

17431-28C10

$7.10

28

PIN

04211-09129

$1.64

29

BOLT

01547-06207

$2.01

30

BOLT

01547-06307

$2.06

31

BOLT This part replaces 01547-06807.

01547-0680B

$2.92

32

IMPELLER, WATER PUMP

17491-28C10

$64.38

33

OIL SEAL, WATER PUMP This part replaces 17461-28C10.

17461-03B00

$7.56

34

GEAR, WATER PUMP DRIVEN This part replaces 17441-28C10.

17441-28C11

Unavailable

35

PIN

09261-03010

Unavailable

36

CIRCLIP

08331-41249

$2.24

37

BEARING

08113-69000

$22.14

38

CIRCLIP

08331-31109

$1.77
