1992 Suzuki RM250N Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 1992 Suzuki RM250N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

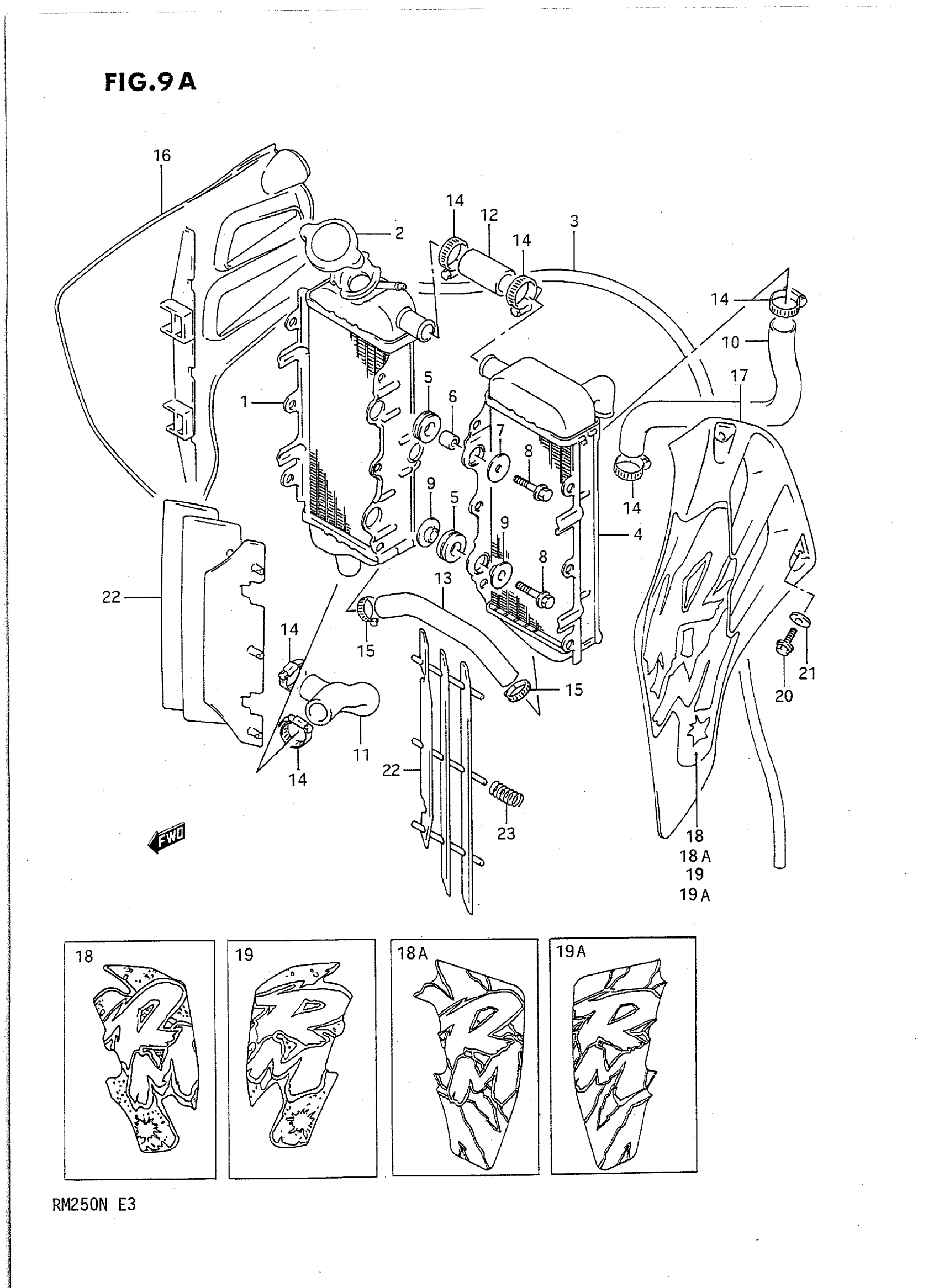

1992 Suzuki RM250N Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR, RH

17710-28C20

1
Out of stock

2

CAP, RADIATOR This part replaces 17730-20930.

17730-08J00

1
Out of stock

3

HOSE (5X8X2000) | L:1000->650 This part replaces 09351-50801-00A.

09351-50803-00B

1
Out of stock

4

RADIATOR, LH

17720-28C20

1
Out of stock

5

CUSHION, SUPPORT

17787-19A00

6

$3.55

In stock

6

SPACER (6.5X10.5X12)

09180-06221

2
Out of stock

7

WASHER (6.5X24X1.2) This part replaces 09160-06002.

09160-06114

2
Out of stock

8

BOLT

01547-06257

6
Out of stock

9

WASHER, RADIATOR SUPPORT

17781-26C00

8
Out of stock

10

HOSE, INLET

17851-28C21

1
Out of stock

11

HOSE, OUTLET

17852-28C20

1
Out of stock

12

HOSE, CYLINDER JOINT This part replaces 17853-28C20.

17851-01A00

1
Out of stock

13

HOSE, JOINT NO.2

17854-28C20

1
Out of stock

14

CLAMP This part replaces 09402-25502.

09402-28511

6
Out of stock

15

CLAMP This part replaces 09402-22502.

09402-22511

2
Out of stock

16

COVER. RADIATOR RH This part replaces 17761-28C00-30H.

17761-28C00-25Y

1
Out of stock

17

COVER, RADIATOR LH This part replaces 17762-28C00-30H.

17762-28C00-25Y

1
Out of stock

18

EMBLEM, RADIATOR COVER RH | MODEL M

68661-28C40-0WN

1
Out of stock

18A

EMBLEM, RADIATOR COVER RH | MODEL N

68661-43D00-1JH

1
Out of stock

19

EMBLEM, RADIATOR COVER LH | MODEL M

68671-27C40-0WN

1
Out of stock

19A

EMBLEM, RADIATOR COVER LH | MODEL N

68671-43D00-1JH

1
Out of stock

20

BOLT

01547-06127

4
Out of stock

21

WASHER (6.5X20X1.5)

09168-06027

5
Out of stock

22

LOUVER, RADIATOR

17831-26C00

2
Out of stock

23

SPRING This part replaces 09440-11024.

09440-11024-XC0

2
Out of stock
