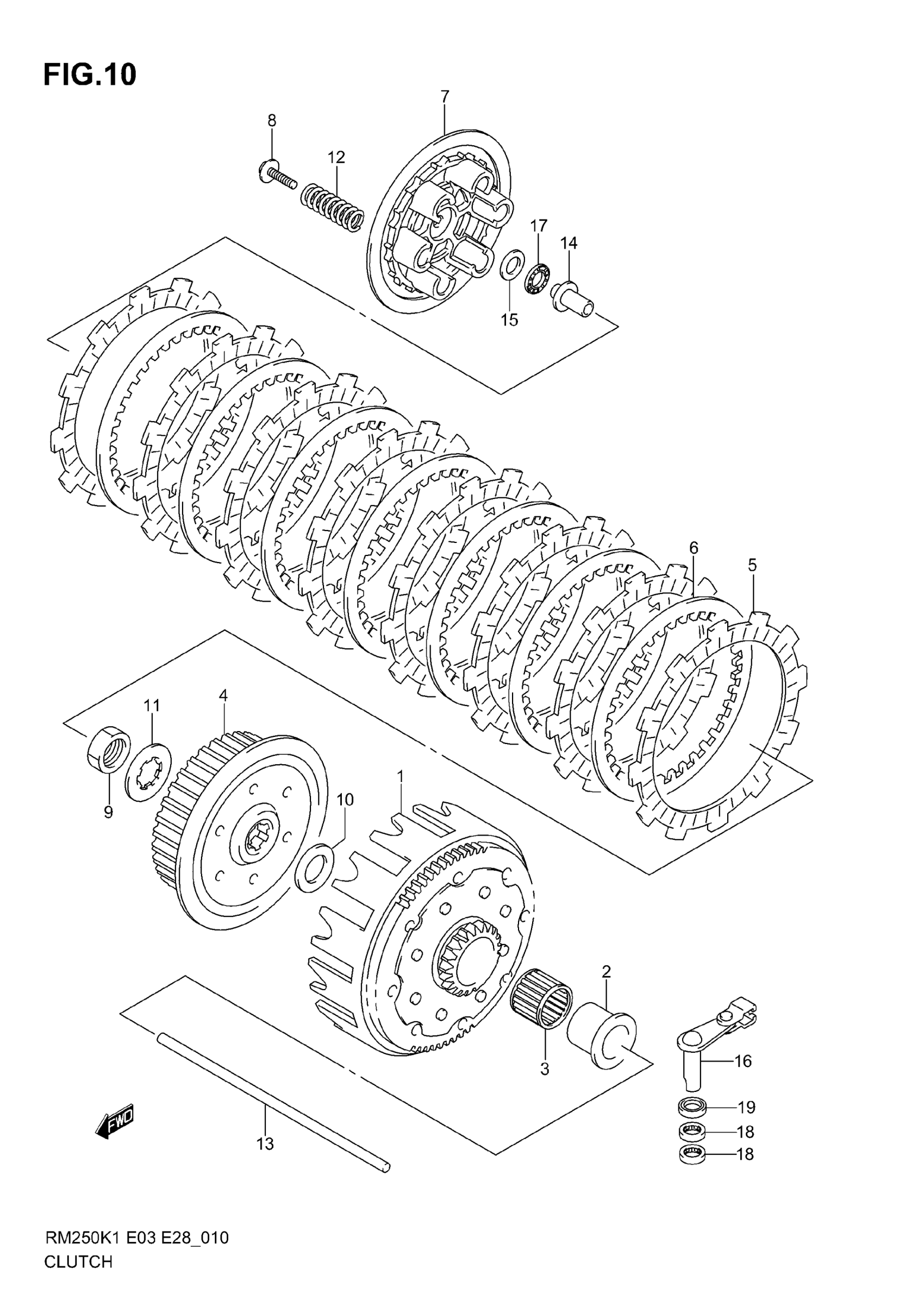

Find the part on the Clutch diagram for your 2006 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki RM250 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | NT:63/21 This part replaces 21200-37E02.

21200-37F10

1
Out of stock

2

SPACER, PRIMARY DRIVEN GEAR This part replaces 21251-37E00.

21251-37E01

1
Out of stock

3

BEARING, PRIMARY DRIVEN | 29X34X27

09263-29009

1
Out of stock

4

HUB SET,CLUTCH This part replaces 21410-37E10.

21410-37810

1
Out of stock

5

PLATE, CLUTCH DRIVE This part replaces 21441-37E20.

21441-37E00

8
Out of stock

6

PLATE, CLUTCH DRIVEN

21451-37F00

7
Out of stock

7

DISC,CLUTCH PRE This part replaces 21462-37E02.

21462-37E03

1
Out of stock

8

BOLT, CLUTCH (5X25)

09116-05019

6
Out of stock

9

NUT, CLUTCH SLEEVE HUB

09140-18013

1
Out of stock

10

WASHER, CLUTCH HUB THR | 22X38X2

09160-22067

1
Out of stock

11

WASHER, CLUTCH HUB | 22X42X0.8

09167-22021

1
Out of stock

12

SPRING, CLUTCH | MODEL K1

09440-18030

6
Out of stock

12

SPRING, CLUTCH | MODEL K2 This part replaces 09440-18029.

09440-18030

6
Out of stock

13

ROD, CLUTCH PUSH

23110-37F00

1
Out of stock

14

PIECE,CLUTCH PUSH

23121-37F00

1
Out of stock

15

SHIM (10X20X0.50)

09181-10186

1
Out of stock

16

CAMSHAFT, CLUTCH RELEASE | MODEL K1 This part replaces 23200-37E01.

23200-37E02

1
Out of stock

16

CAMSHAFT, CLUTCH RELEASE | MODEL K2

23200-37E02

1
Out of stock

17

BEARING, CLUTCH RELEASE | 10.1X22X2.8

09263-10002

1
Out of stock

18

BEARING, NO.2 | 12X16X10

09263-12024

2
Out of stock

19

SEAL, CL RELEASE CAMSHAFT | 12X19X5

09285-12004

1
Out of stock
