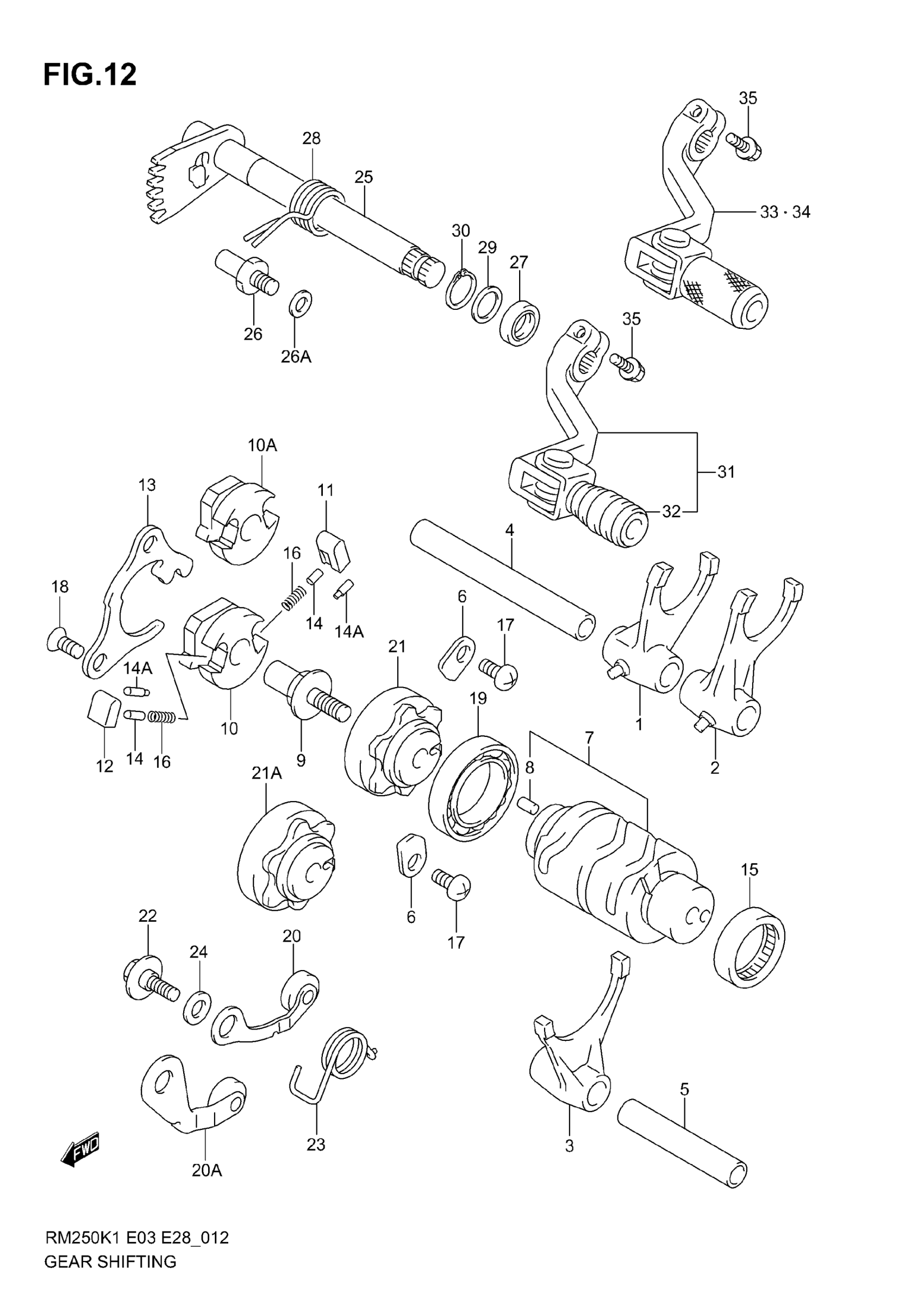

Suzuki RM250 (2006) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT, NO.1

25211-28C01

$93.58

2

FORK, GEAR SHIFT, NO.2

25221-37E10

$96.75

3

FORK, GEAR SHIFT, NO.3

25231-28C02

$94.03

4

SHAFT, GEAR FORK NO.1 | MODEL K1/K2 This part replaces 25411-27C01.

25411-37F20

$25.08

4

SHAFT, GEAR FORK, NO.1 | MODEL K3/K4/K5/K6

25411-37F20

$25.08

5

SHAFT, GEAR FORK, NO.2

25421-27C01

$20.82

6

RETAINER, SHIFT CAM BRG

24741-21A00

$2.80

7

CAM, GEAR SHIFT | Includes Item(s) 8

25310-37F00

$212.72

8

PIN (4X13.8)

04221-04089

$1.10

9

PIN, SHIFT | MODEL K1/K2/K3/K4/K5

25313-27C02

$14.73

9

PIN, SHIFT | MODEL K6

25313-37F00

$16.67

10

GEAR, GEAR SHIFT CAM DRIVEN | MODEL K1

25322-31310

$30.40

10A

SHIFTER, GEAR SHIFT CAM | MODEL K2/K3/K4/K5/K6

25322-37F01

$65.99

11

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

12

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

13

LIFTER, GEAR SHIFT PAWL

25331-37F01

$26.50

14

PIN, SHIFT PAWL (5X8) | MODEL K1/K2

09261-05003

$1.69

14A

PIN, SHIFT PAWL | MODEL K3/K4/K5/K6

09209-05023

$2.73

15

BEARING, SHIFT CAM, LH | 25X32X12

09263-25018

$19.30

16

SPRING, SHIFT PAWL RETURN

09440-04003

$1.48

17

SCREW, SHIFT CAM BRG (6X12)

09125-06110

$2.13

18

SCREW | MODEL K1/K2 This part replaces 02122-06123.

02122-0612A

$1.43

18

SCREW, SHIFT PAWL (6X12) | MODEL K3/K4/K5/K6

09126-06011

$2.01

19

BEARING, SHIFT CAM, RH

08140-69050

$32.18

20

STOPPER, SHIFT CAM | MODEL K1/K2/K3

25350-28C20

Unavailable

20A

STOPPER, SHIFT CAM | MODEL K4/K5/K6

25350-37F30

$18.03

21

PLATE, SHIFT CAM STOPPER | MODEL K1/K2/K3

25381-28C20

Unavailable

21A

PLATE, SHIFT CAM STOPPER | MODEL K4/K5/K6

25381-37F30

$70.07

22

BOLT, SHIFT CAM STOPPER | 6X14.3

09111-06041

$2.63

23

SPRING, SHIFT CAM | MODEL K1/K2/K3

09448-18025

Unavailable

23

SPRING, SHIFT CAM | MODEL K4/K5/K6

25355-37F00

$7.30

24

WASHER, SHIFT CAM

08211-06121

$1.56

25

SHAFT, GEAR SHIFT | MODEL K1

25510-37F00

Unavailable

25

SHAFT, GEAR SHIFT | MODEL K2/K3/K4/K5/K6

25510-37F10

$101.35

26

STOPPER, GEAR SHIFT ARM | MODEL K1

25671-38B00

$6.00

26

STOPPER, GEAR SHIFT ARM | MODEL K2/K3

25671-37F00

$6.17

26

STOPPER, GEAR SHIFT ARM | MODEL K4/K5/K6

25671-37F10

$6.00

26A

WASHER, GEAR SHIFT ARM | 8X14X1.0

09181-08139

$1.92

27

SEAL, SHIFT SHAFT OIL | 14X22X6

09283-14006

$6.04

28

SPRING, SHIFT SHAFT RETURN

09444-20004

$9.10

29

WASHER, GEAR SHAFT | 14X20X1.0

09181-14139

$2.66

30

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.89

31

LEVER ASSY, GEAR SHIFT | MODEL K1; Includes Item(s) 32 This part replaces 25600-37F00.

25600-37F10

Unavailable

32

RUBBER,GEAR SHI | MODEL K1 This part replaces 25652-27C00.

25652-27C01

$25.80

33

LEVER ASSY, GEAR SHIFT | MODEL K2/K3

25600-37F10

Unavailable

34

LEVER ASSY, GEAR SHIFT | MODEL K4/K5/K6

25600-37F20

$131.95

35

..BOLT | MODEL K1 This part replaces 01547-06203.

01547-0620B

$2.43

35

BOLT | MODEL K2/K3/K4/K5/K6 This part replaces 09103-06235.

01547-06207

$2.01
