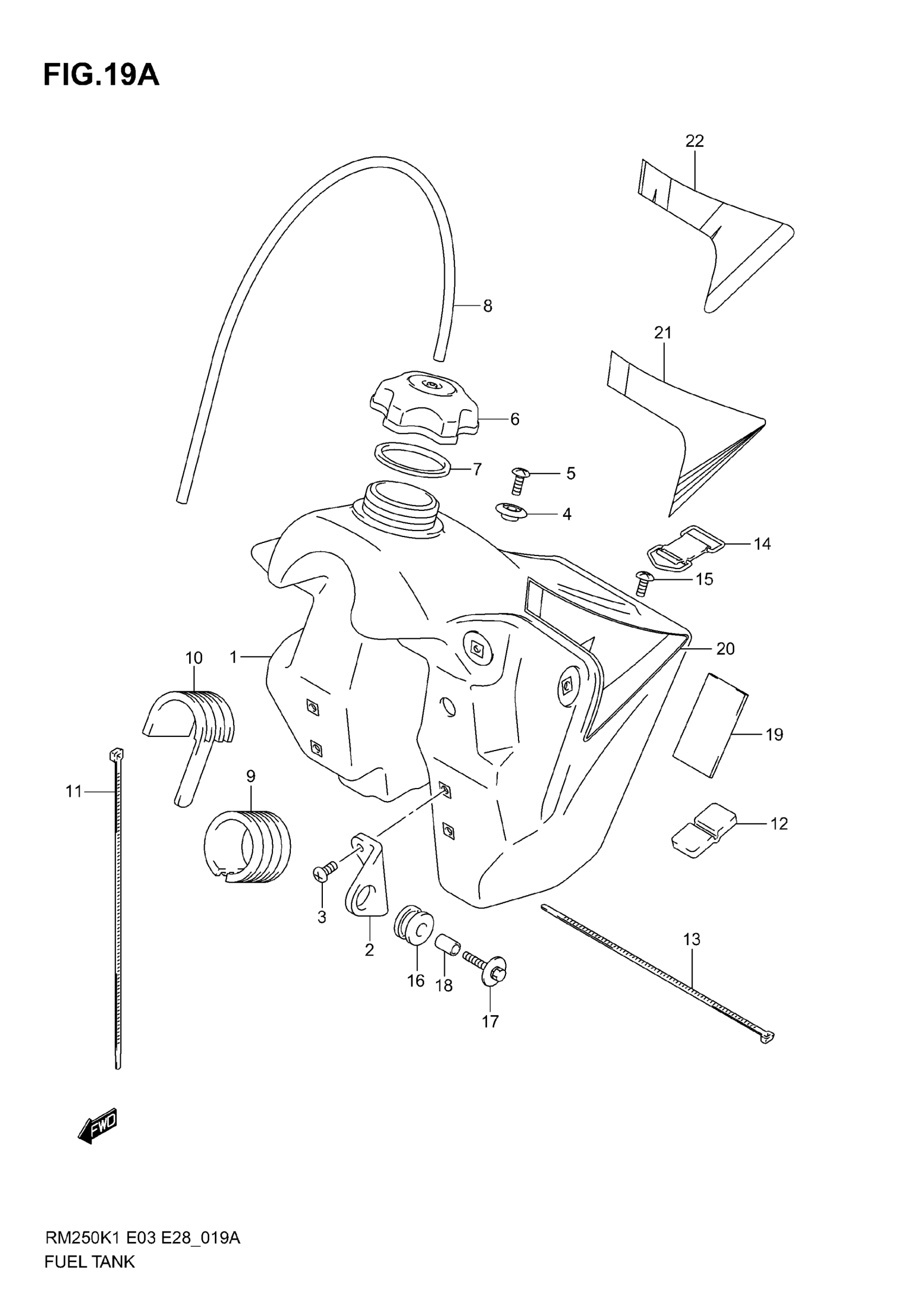

Suzuki RM250 (2006) FUEL TANK (MODEL K4/K5/K6) Diagram

#

Description
Price

1

TANK, FUEL (YELLOW) | MODEL K4 This part replaces 44110-37F10-YU1.

44110-37F21-YU1

Unavailable

1

TANK, FUEL (YELLOW) | MODEL K5/K6; Includes Item(s) 2 - 5 This part replaces 44110-37F20-YU1.

44110-37F21-YU1

Unavailable

2

BRACKET, FRONT

44131-27C01

$16.77

3

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

4

HOOK, SEAT FRONT | MODEL K4

44132-37F00

Unavailable

4

HOOK, SEAT FRONT | MODEL K5/K6

44132-37F10

$13.03

5

SCREW | MODEL K4 This part replaces 02142-06163.

02142-0616A

$1.37

5

SCREW | MODEL K5/K6 This part replaces 02122-06203.

02122-0620A

$1.45

6

CAP, FUEL TANK

44210-37F00

$39.00

7

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$3.96

8

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$9.08

9

CUSHION

44541-26C00

$20.33

10

CUSHION

44541-37F00

$17.60

11

CLAMP

09407-30402

$3.76

12

CUSHION, REAR | MODEL K4

09321-05006

Unavailable

12

CUSHION, REAR | MODEL K5/K6

44542-37F00

$11.10

13

CLAMP, REAR

09407-25402

$4.19

14

BAND, REAR

44560-27C00

$7.04

15

SCREW

09139-06134

$2.87

16

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.42

17

BOLT, FRONT

09116-06195

$4.02

18

SPACER

09180-06268

$2.10

19

CUSHION, SIDE

33652-19F00

$4.11

20

TAPE SET, FUEL TANK | MODEL K4

68110-37F30-NT3

Unavailable

21

TAPE SET, FUEL TANK | MODEL K5

68110-37F40-AZR

Unavailable

22

TAPE SET, FUEL TANK | MODEL K6

68110-37F50-CFK

Unavailable
