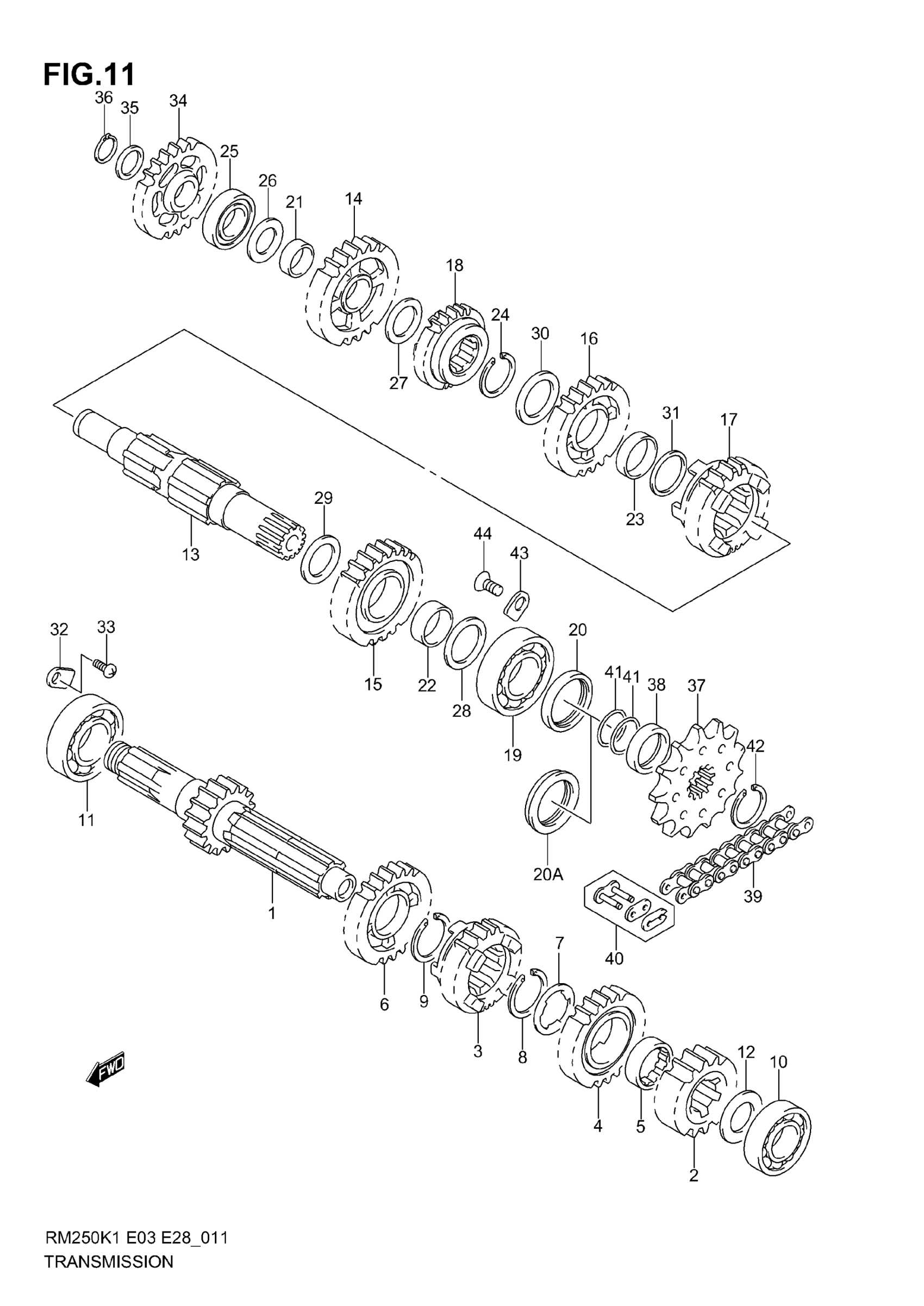

Suzuki RM250 (2006) TRANSMISSION (MODEL K1/K2/K3) Diagram

#

Description
Price

1

SHAFT,COUNTER(N This part replaces 24120-37E00.

24120-37E01

Unavailable

2

GEAR, 2ND DRIVE (NT:17) | MODEL K1 This part replaces 24221-37E00.

24221-37E01

Unavailable

2

GEAR, 2ND DRIVE (NT:17) | MODEL K2/K3

24221-37E01

Unavailable

3

GEAR, 3RD DRIVE (NT:19) | MODEL K1 This part replaces 24231-37F00.

24231-37F02

Unavailable

3

GEAR, 3RD DRIVE (NT:19) | MODEL K2 This part replaces 24231-37F01.

24231-37F02

Unavailable

3

GEAR, 3RD DRIVE (NT:19) | MODEL K3

24231-37F02

Unavailable

4

GEAR, 4TH DRIVE (NT:21) This part replaces 24241-37E00.

24241-37E01

$128.95

5

BUSH, 4TH DRIVE GEAR

24242-37E00

$36.72

6

GEAR, 5TH DRIVE (NT:23)

24251-37E00

$129.92

7

WASHER LOCK (25.1X31X1.0)

09167-25012

$4.02

8

CIRCLIP, 4TH DRIVE

09380-25010

$2.80

9

CIRCLIP, 5TH DRIVE

09380-25010

$2.80

10

BEARING, CNTR LH

08143-62037

$16.66

11

BEARING (25X52X15)

08143-62057

$22.02

12

WASHER, 2ND (17X30X1.0)

09181-17223

$2.80

13

SHAFT, DRIVE | MODEL K1/K2

24131-28C03

Unavailable

13

SHAFT, DRIVE | MODEL K3

24131-37F20

$227.81

14

GEAR, 1ST DRIVEN (NT:27)

24311-37E00

$133.83

15

GEAR, 2ND DRIVEN (NT:25) | MODEL K1 This part replaces 24321-37E01.

24321-37E02

$132.58

15

GEAR, 2ND DRIVEN (NT:25) | MODEL K2/K3

24321-37E02

$132.58

16

GEAR, 3RD DRIVEN (NT:23)

24331-37F02

$130.07

17

GEAR, 4TH DRIVEN (NT:21) | MODEL K1 This part replaces 24341-37E11.

24341-37E12

Unavailable

17

GEAR, 4TH DRIVEN (NT:21) | MODEL K2

24341-37E12

Unavailable

17

GEAR, 4TH DRIVEN (NT:21) | MODEL K3

24341-37F20

$150.05

18

GEAR, 5TH DRIVEN (NT:20) | MODEL K1/K2

24351-37E00

Unavailable

18

GEAR, 5TH DRIVEN (NT:20) | MODEL K3

24351-37F20

$136.53

19

BEARING, DRIVE SHAFT, LH | 22X56X15

09262-22030

$61.02

20

SEAL, DRIVE (28X38X6) | MODEL K1/K2

09283-28020

$9.08

20A

SEAL, DRIVE (28X38X7.5) | MODEL K3

09289-28012

$8.74

21

BUSH, 1ST DRIVEN GEAR

09300-20037

$19.47

22

BUSH, 2ND DRIVEN GEAR

09300-25031

$20.80

23

BUSH, 3RD DRIVEN GEAR

09300-25031

$20.80

24

CIRCLIP, 3RD DRIVEN

09380-25010

$2.80

25

BEARING, DRIVE SHAFT, RH | 17X40X12

09262-17023

$15.11

26

WASHER, 1ST (17X30X1.0)

09181-17223

$2.80

27

WASHER, 1ST (20X30X1.0)

09181-20195

$2.68

28

WASHER, 2ND (22X34X1.5)

09181-22240

$4.45

29

WASHER, 2ND (25X34X1.0)

09181-25167

$2.85

30

WASHER, 3RD (25X34X1.0)

09181-25167

$2.85

31

WASHER, 3RD DRIVEN NO.2

08221-25305

$2.58

32

RETAINER, CNTR SHAFT BRG

24741-21A00

$2.80

33

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

34

GEAR, KICK STARTER (NT:27) | MODEL K1

26260-05D00

Unavailable

34

GEAR, KICK STARTER (NT:27) | MODEL K2/K3

26260-37E01

$108.08

35

WASHER, KICK (17X24X0.5)

09181-17130

$2.80

36

CIRCLIP This part replaces 08331-31176.

08331-31179

$1.88

37

SPROCKET, ENGINE (NT:13) This part replaces 27511-15D00.

27511-37F00

$23.59

38

SPACER, ENGINE SPROCKET

27531-28C00

$12.18

39

CHAIN ASSY,DRIVE | MODEL K1/K2 This part replaces 27600-43D00-112.

27600-46K00-114

$156.72

39

CHAIN ASSY,DRIVE | MODEL K3 This part replaces 27600-43D01-112.

27600-46K00-114

$156.72

40

.JOINT SET,CHAIN | OPT This part replaces 27620-43D00.

27620-46K00

$10.80

41

O RING (D:1.9,ID:19.8)

09280-20006

$1.77

42

CIRCLIP, ENGINE SPROCKET

09380-22006

$2.80

43

RETAINER

24741-20A00

$2.80

44

SCREW This part replaces 02122-06123.

02122-0612A

$1.43
