2000 Suzuki RM250 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 2000 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

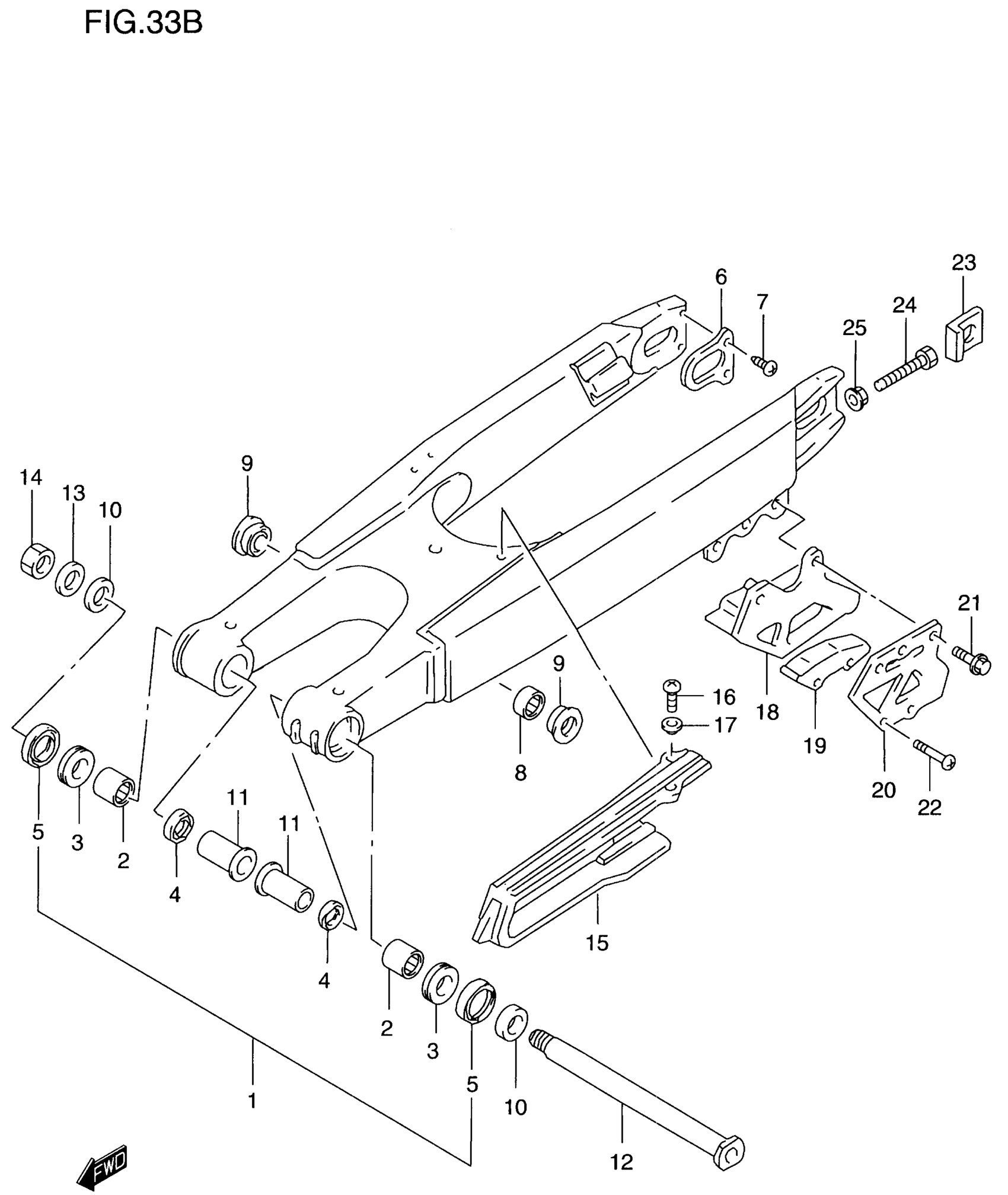

2000 Suzuki RM250 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 8

61000-37E00

1
Out of stock

2

2

$21.98

In stock

3

BEARING, OUTER (22X35X2)

09263-22064

2
Out of stock

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

2
Out of stock

5

SEAL, OUTER

61262-36E00

2
Out of stock

6

PLATE, INNER

61128-37E00

2
Out of stock

7

4

$1.31

In stock

8

BEARING, ROD (22X28X20)

09263-22066

2
Out of stock

9

2

$9.21

In stock

10

SPACER, PIVOT OUTER

61251-36E01

2

$13.49

In stock

11

SPACER, PIVOT INNER

61252-36E00

2
Out of stock

12

SHAFT, PIVOT

61211-28C00

1

$66.57

In stock

13

1

$2.00

In stock

14

NUT

09159-16007

1

$12.21

In stock

15

BUFFER, CHAIN TOUCH DEFENSE

61273-36E10

1
Out of stock

16

3

$1.55

In stock

17

WASHER

09169-05022

3
Out of stock

18

GUIDE, CHAIN

61341-27C20

1

$50.88

In stock

19

DEFENSE, CHAIN GUIDE

61348-27C20

1

$35.32

In stock

20

PLATE, GUIDE OUTER

61342-28E00

1

$67.93

In stock

21

..BOLT This part replaces 01547-06203.

01547-0620B

3
Out of stock

22

SCREW, UNDER (6X40)

09126-06013

2

$3.92

In stock

23

WASHER, CHAIN ADJUSTER

61445-28E10

2
Out of stock

24

BOLT (8X50)

09100-08287

2
Out of stock

25

NUT

09159-08034

2
Out of stock
