2000 Suzuki RM250 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 2000 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

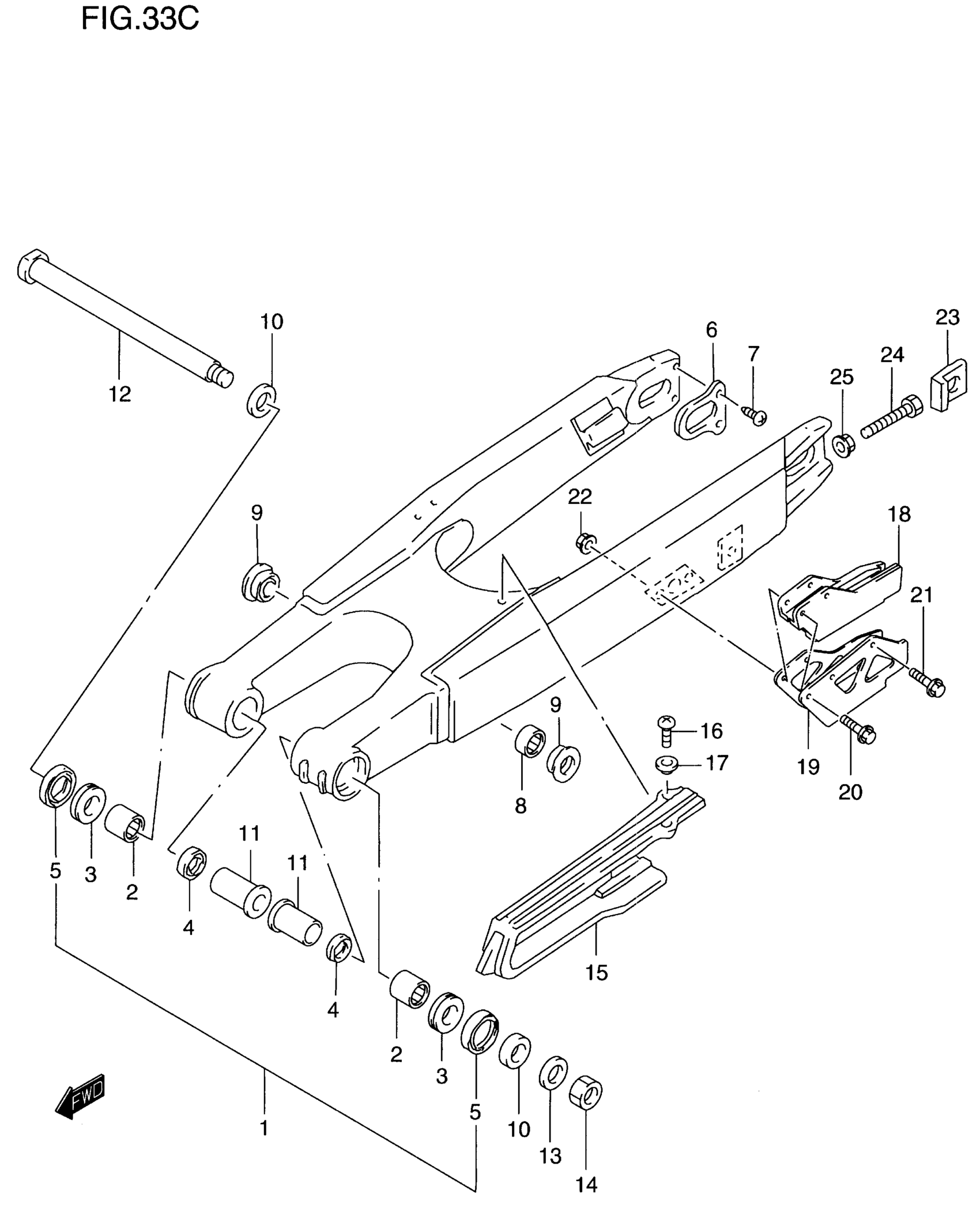

2000 Suzuki RM250 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 8

61000-37E10

1
Out of stock

2

BEARING, PIVOT (22X29X30)

09263-22017

2
Out of stock

3

2

$30.12

In stock

5

2

$7.11

In stock

6

PLATE, INNER

61128-37E00

2
Out of stock

7

SCREW This part replaces 02122-04103.

02122-0410A

4
Out of stock

8

BEARING, ROD (22X28X20)

09263-22066

2
Out of stock

9

SEAL, REAR (21.3X34X5.7)

62624-37E00

2
Out of stock

10

SPACER, PIVOT OUTER

61251-36E01

2
Out of stock

11

SPACER, PIVOT INNER

61252-36E00

2

$60.85

In stock

12

SHAFT, PIVOT

61211-28C00

1
Out of stock

13

WASHER This part replaces 08322-01163.

08322-0116A

1
Out of stock

14

NUT

09159-16007

1
Out of stock

15

BUFFER, CHAIN TOUCH DEFENSE

61273-36E10

1
Out of stock

16

3

$1.55

In stock

17

WASHER

09169-05022

3

$3.45

In stock

18

1

$47.90

In stock

19

1

$72.75

In stock

20

BOLT This part replaces 01547-06503.

01547-0650B

2
Out of stock

21

BOLT This part replaces 01547-06123.

01547-0612B

1
Out of stock

22

NUT This part replaces 08319-31063.

08319-3106A

2
Out of stock

23

WASHER, CHAIN ADJUSTER

61445-28E10

2
Out of stock

24

BOLT (8X50)

09100-08287

2
Out of stock

25

NUT

09159-08034

2

$1.73

In stock
