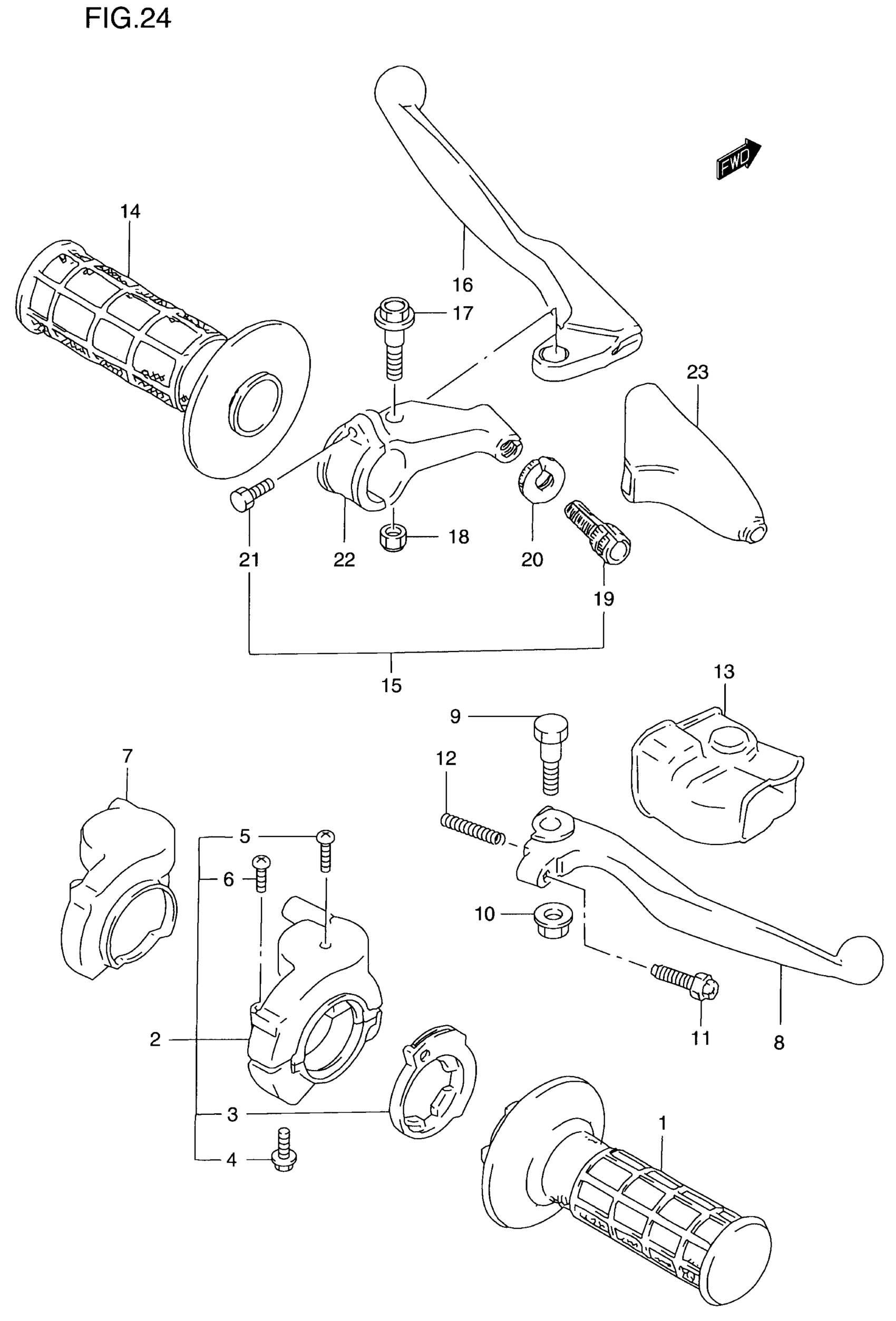

Suzuki RM250 (2000) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE | MODEL T/V/W/X

57110-28E00

Unavailable

1

GRIP, THROTTLE | MODEL Y

57110-36E01

$43.92

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 6

57100-28E01

$154.93

3

ROTOR

57114-28E00

$12.82

4

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

5

SCREW This part replaces 02122-04103.

02122-0410A

$1.22

6

SCREW This part replaces 02122-04163.

02122-0416A

$2.50

7

COVER, THROTTLE CASE

57129-28E01

$23.50

8

LEVER, BRAKE | MODEL T

57421-36E00

Unavailable

8

LEVER, BRAKE | MODEL V/W/X/Y

57421-36E10

$43.33

9

BOLT, BRAKE LEVER

57431-14500

$5.75

10

NUT | MODEL T/V/W This part replaces 57442-14500.

08316-1006B

$2.50

10

NUT | MODEL X/Y This part replaces 08316-10063.

08316-1006B

$2.50

11

BOLT, ADJUSTER

57430-36E00

$8.98

12

SPRING, RETURN

57318-14502

$4.09

13

COVER, BRAKE LEVER

57341-36E00

$22.50

14

GRIP LH | MODEL T/V/W/X

57211-27C00

$11.25

14

GRIP,L | MODEL Y This part replaces 57211-36E01.

57211-28H00

$23.02

15

LEVER ASSY,CLUTCH | MODEL T This part replaces 57500-28C20.

57500-28C13

$89.93

15

LEVER ASSY,CLUT | MODEL V/W/X/Y; Includes Item(s) 16 - 22 This part replaces 57500-28C40.

57500-28C42

Unavailable

16

LEVER, CLUTCH | MODEL T

57621-28C20

Unavailable

16

LEVER, CLUTCH | MODEL V/W/X/Y

57621-28C40

$23.02

17

BOLT

57431-28C01

$9.57

18

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

19

ADJUSTER, CABLE

57441-28C10

$15.50

20

NUT

57442-28C00

$14.63

21

BOLT This part replaces 01500-05163.

01500-0516B

$2.35

22

BRACKET, HOLDER | MODEL T

57512-28C20

Unavailable

22

.BRACKET, CLUTCH LEVER HOLDER | MODEL T/W/X/Y

57512-28C00

$28.93

23

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.02
