2000 Suzuki RM250 Rear Swinging ARM Diagram

← All diagrams

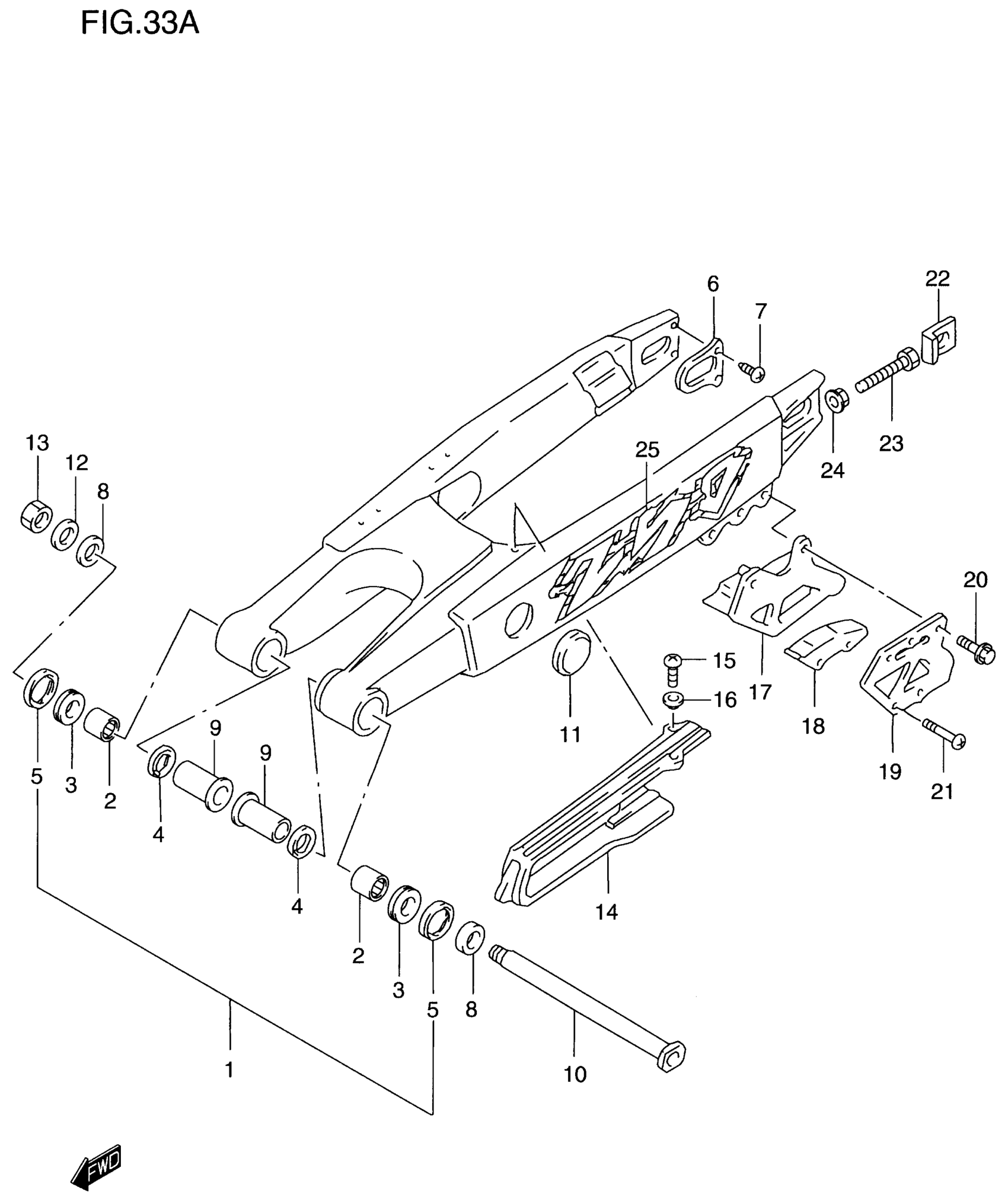

Find the part on the Rear Swinging ARM diagram for your 2000 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki RM250 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 7

61000-36E10

1
Out of stock

2

BEARING (22X29X30)

09263-22017

2
Out of stock

3

2

$30.12

In stock

5

SEAL, OUTER

61262-36E00

2

$7.11

In stock

6

PLATE, INNER

61128-28E00

2
Out of stock

7

SCREW (5X8)

09126-05009

4

$2.48

In stock

8

SPACER, PIVOT OUTER

61251-36E01

2
Out of stock

9

SPACER, PIVOT INNER

61252-36E00

2

$60.85

In stock

10

SHAFT, PIVOT

61211-28C00

1
Out of stock

11

CAP

09250-35003

2
Out of stock

12

WASHER This part replaces 08322-01163.

08322-0116A

1
Out of stock

13

NUT

09159-16007

1
Out of stock

14

BUFFER, CHAIN TOUCH DEFENSE

61273-36E10

1
Out of stock

15

3

$1.55

In stock

16

WASHER

09169-05022

3

$3.45

In stock

17

GUIDE, CHAIN

61341-27C20

1
Out of stock

18

DEFENSE, CHAIN GUIDE

61348-27C20

1
Out of stock

19

PLATE, GUIDE OUTER

61342-28E00

1
Out of stock

20

..BOLT This part replaces 01547-06203.

01547-0620B

3
Out of stock

21

SCREW, UNDER (6X40)

09126-06013

2
Out of stock

22

WASHER, CHAIN ADJUSTER

61445-28E10

2
Out of stock

23

BOLT (8X50)

09100-08287

2
Out of stock

24

NUT

09159-08034

2

$1.73

In stock

25

EMBLEM, SWINGING ARM

68381-05D11-G7E

2
Out of stock
