2000 Suzuki RM250 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2000 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

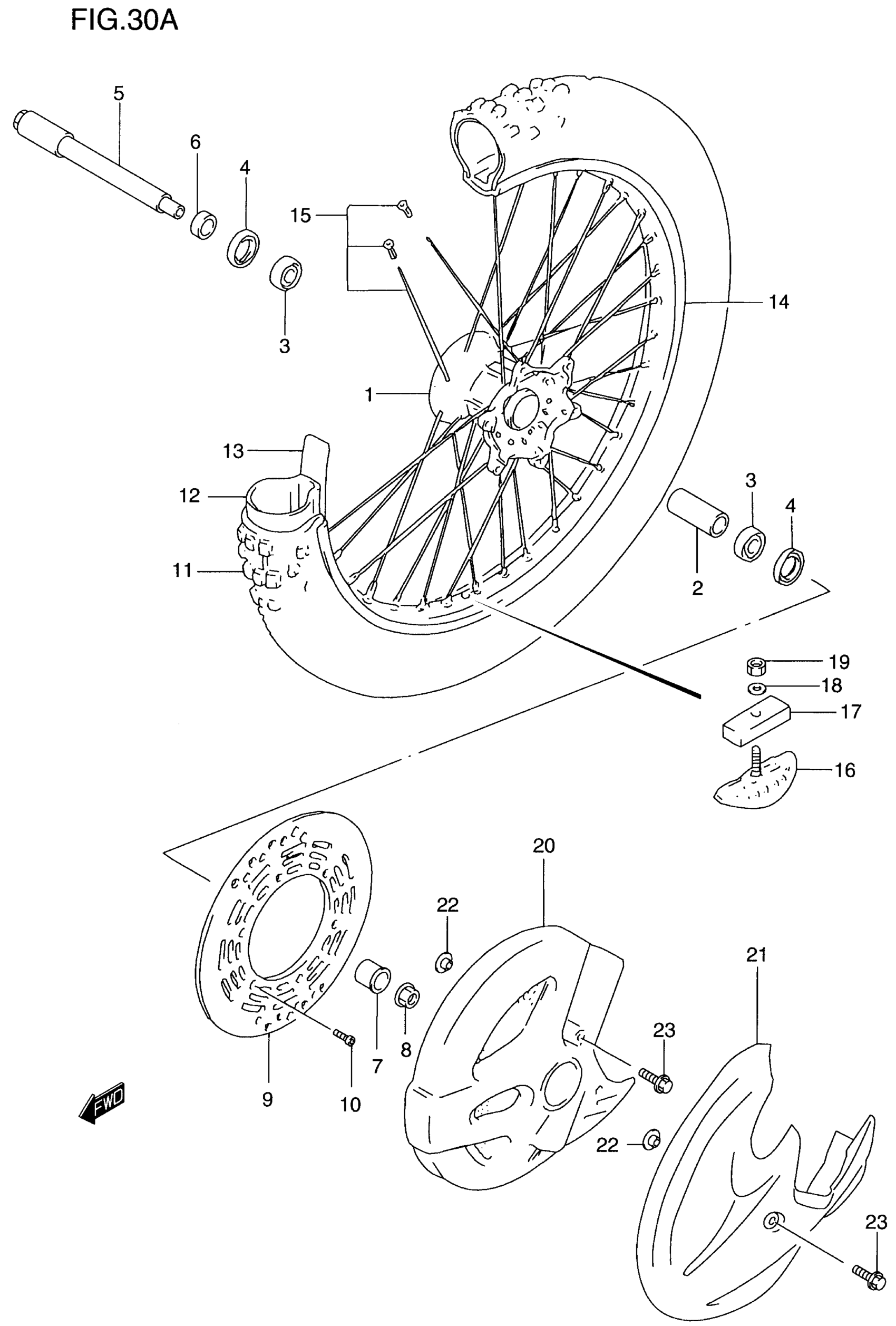

2000 Suzuki RM250 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT WHEEL

54111-36E10

1
Out of stock

2

SPACER, FRONT HUB (20.5X27.3X70)

54731-36E10

1
Out of stock

3

BEARING This part replaces 08130-69047.

08130-6904B

2
Out of stock

4

SEAL, FRONT HUB (25X37X6)

09283-25083

2
Out of stock

5

AXLE, FRONT

54711-36E00

1
Out of stock

6

SPACER, AXLE RH (L:9.5)

54741-36E10

1
Out of stock

7

SPACER, AXLE LH (L:31)

54751-36E10

1
Out of stock

8

NUT

09159-18016

1
Out of stock

9

DISC, FRONT BRAKE

59221-28C00

1
Out of stock

10

SCREW, SHIFT PAWL LIFTER This part replaces 09120-06011.

09120-06014

6
Out of stock

11

TIRE, FRONT (80/100-21) (BRIDGESTONE) (BRIDGESTONE) (BRIDGESTONE) | MODEL V/W

55110-37E10

1
Out of stock

12

TIRE, FRONT This part replaces 55200-16510.

55200-16511

1
Out of stock

13

PROTECTOR, INNER TUBE

55261-14540

1
Out of stock

14

RIM, FRONT WHEEL (1.60X21)

55311-36E00

1
Out of stock

15

SPOKE SET, FRONT WHEEL

55320-36E00

1
Out of stock

16

STOPPER, BEAD

65270-14300

1
Out of stock

17

CUSHION, BEAD STOPPER

65271-27C00

1
Out of stock

18

WASHER This part replaces 08322-01083.

08322-0108A

1
Out of stock

19

NUT This part replaces 08310-00083.

08310-0008A

1
Out of stock

20

COVER,FRONT BRA | MODEL V This part replaces 59231-36E01-25Y.

59231-36E02-25Y

1
Out of stock

21

COVER, FRONT BRAKE DISC (GRAY) | MODEL X/Y

59231-36E20-1KY

1
Out of stock

22

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

2
Out of stock

23

BOLT (6X16)

09116-06170

2
Out of stock
