2000 Suzuki RM250 Rear Swinging Arm Diagram

← All diagrams

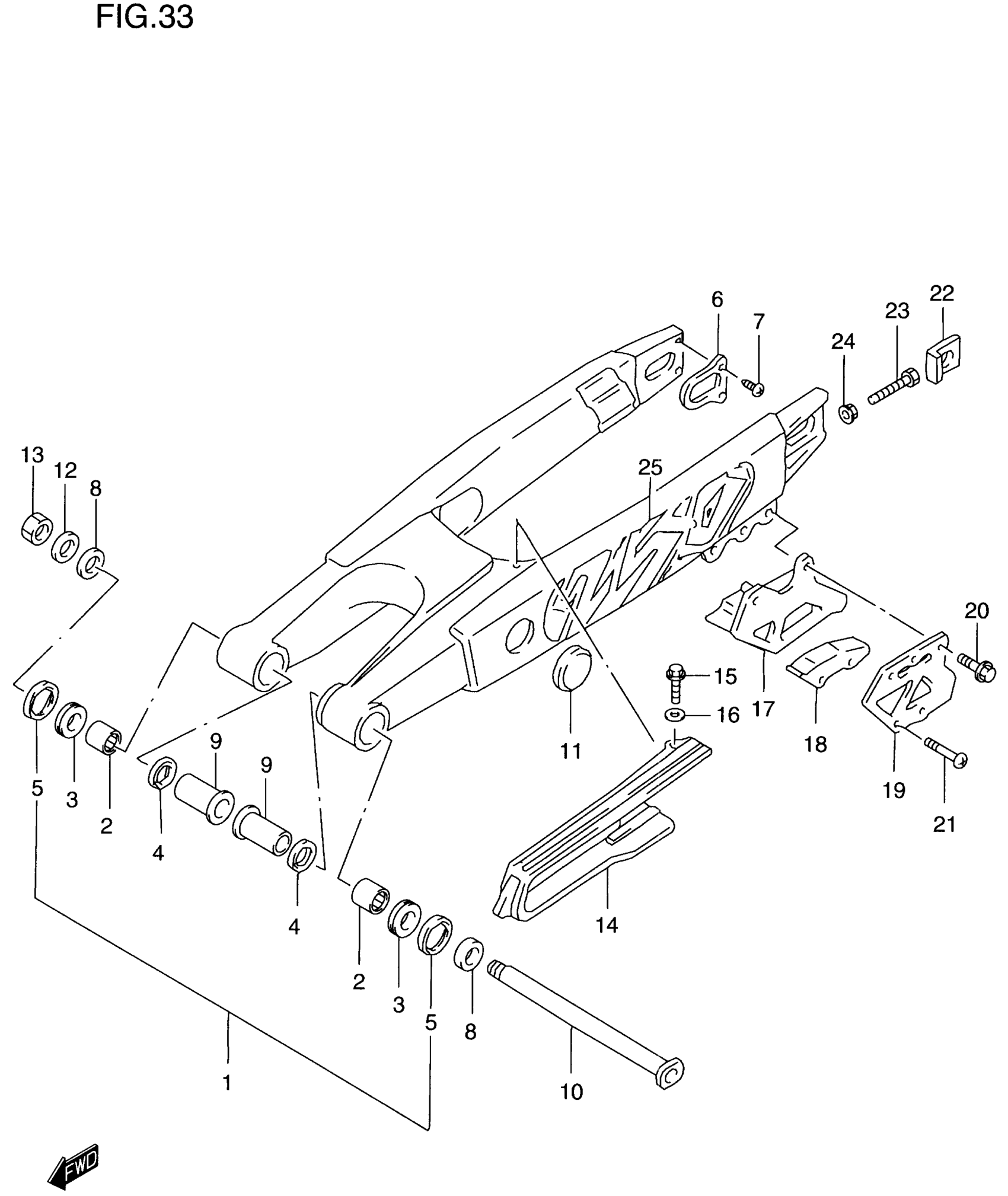

Find the part on the Rear Swinging Arm diagram for your 2000 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Suzuki RM250 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 7

61000-36E00

1
Out of stock

2

BEARING (22X29X30)

09263-22017

2

$21.98

In stock

3

BEARING, OUTER (22X35X2)

09263-22064

2
Out of stock

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

2
Out of stock

5

SEAL, OUTER

61262-36E00

2
Out of stock

6

PLATE, INNER

61128-28E00

2
Out of stock

7

SCREW (5X8)

09126-05009

4
Out of stock

8

SPACER, PIVOT OUTER

61251-36E01

2

$13.49

In stock

9

SPACER, PIVOT INNER

61252-36E00

2
Out of stock

10

SHAFT, PIVOT

61211-28C00

1

$66.57

In stock

11

CAP

09250-35003

2

$3.33

In stock

12

1

$2.00

In stock

13

NUT

09159-16007

1

$12.21

In stock

14

BUFFER, CHAIN TOUCH DEFENSE

61273-36E02

1
Out of stock

15

BOLT This part replaces 01547-06163.

01547-0616B

2
Out of stock

16

WASHER

09169-06057

2

$3.14

In stock

17

GUIDE, CHAIN

61341-27C20

1

$50.88

In stock

18

DEFENSE, CHAIN GUIDE

61348-27C20

1

$35.32

In stock

19

PLATE, GUIDE OUTER

61342-28E00

1

$67.93

In stock

20

..BOLT This part replaces 01547-06203.

01547-0620B

3
Out of stock

21

SCREW, UNDER (6X40)

09126-06013

2

$3.92

In stock

22

WASHER, CHAIN ADJUSTER

61445-28E10

2
Out of stock

23

BOLT (8X50)

09100-08287

2
Out of stock

24

NUT

09159-08034

2
Out of stock

25

EMBLEM, SWINGING ARM

68381-37E00-E8T

2
Out of stock
