1991 Suzuki RM125M Radiator Diagram

← All diagrams

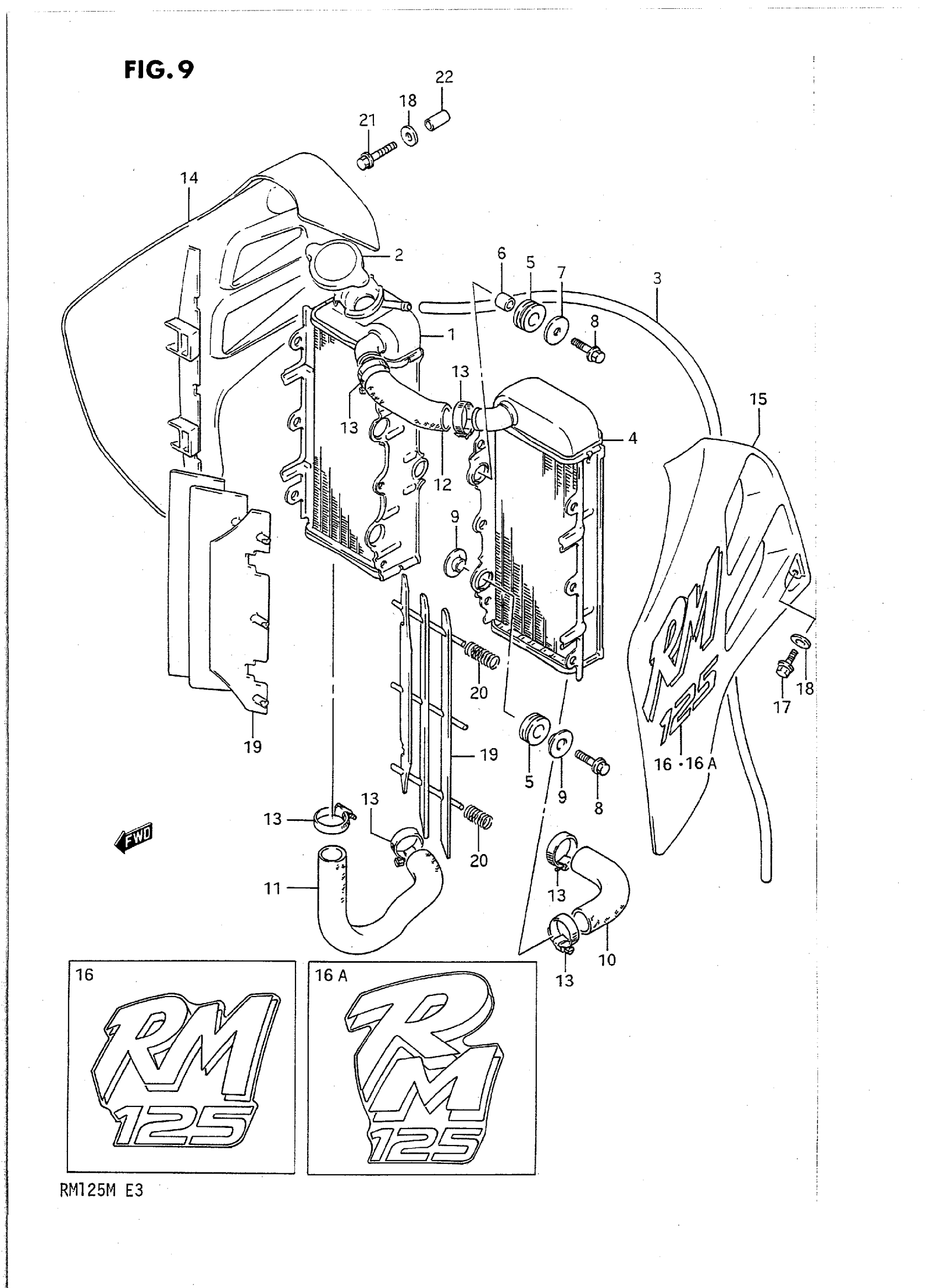

Find the part on the Radiator diagram for your 1991 Suzuki RM125M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Suzuki RM125M Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 17710-27C00.

17710-27C01

1
Out of stock

2

1

$42.36

In stock

4

RADIATOR, LH

17720-26C00

1
Out of stock

5

CUSHION, SUPPORT

17787-19A00

6
Out of stock

6

2

$2.63

In stock

6

SPACER (6.5X10.5X12) | MODEL L

09180-06221

2
Out of stock

8

BOLT

01547-06257

6
Out of stock

9

8

$3.55

In stock

10

HOSE, RAD INLET This part replaces 17851-27C00.

17851-32810

1
Out of stock

11

HOSE, OUTLET | MODEL K

17852-27C01

1
Out of stock

11

HOSE,RADIATOR O | MODEL L This part replaces 17852-27C10.

17852-27810

1
Out of stock

13

6

$6.67

In stock

14

COVER, RADIATOR RH

17761-27C00-25Y

1
Out of stock

15

COVER, RADIATOR LH

17762-27C00-25Y

1
Out of stock

16

EMBLEM, RADIATOR COVER | MODEL K This part replaces 68661-27C10-2DP.

68661-27C30-3MB

2
Out of stock

16A

EMBLEM, RADIATOR COVER | MODEL L

68661-27C30-3MB

2
Out of stock

17

BOLT

01547-06127

4
Out of stock

18

WASHER (6.5X20X1.5)

09168-06027

5

$3.05

In stock

19

LOUVER, RADIATOR

17831-26C00

2

$19.34

In stock

20

4

$3.74

In stock

21

BOLT

01547-06307

1

$2.22

In stock

22

SPACER (6.4X10X22)

09180-06178

1

$4.90

In stock
