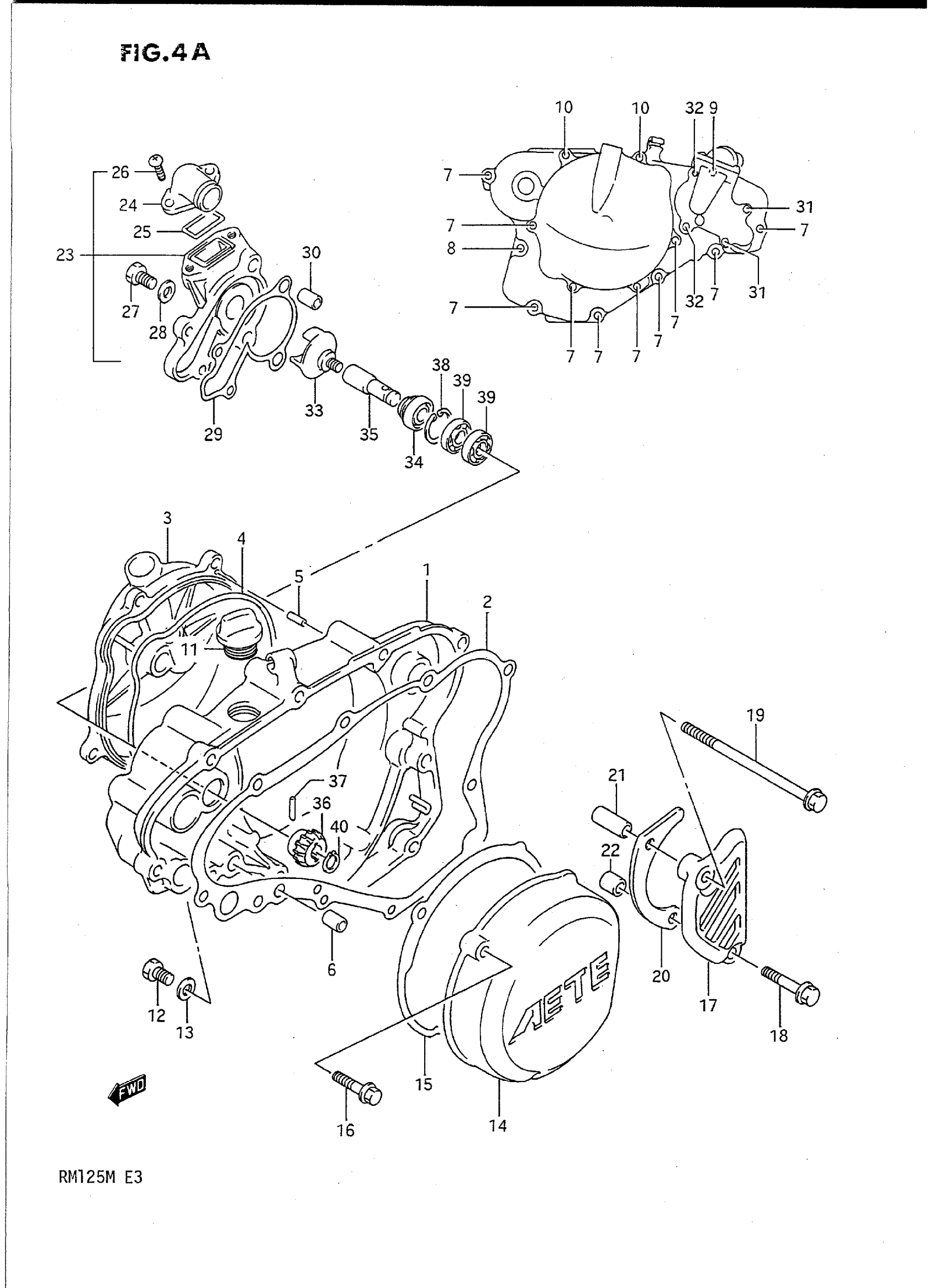

Suzuki RM125M (1991) CRANKCASE COVER- WATER PUMP (MODEL L/M) Diagram

COVER, CLUTCH

11341-27C10

Unavailable

.GASKET, CLUTCH COVER This part replaces 11482-27C00.

11482-27C02

$13.27

NO DESCRIPTION AVAILABLE This part replaces 11371-27C10.

11371-27C11

Unavailable

O RING, CLUTCH OUTER COVER

11484-27C10

Unavailable

PIN (4X13.8)

04221-04089

$1.15

PIN

04211-09129

$1.70

BOLT

01547-06257

$2.09

BOLT

01547-06357

$2.09

BOLT

01547-06457

$2.39

BOLT

01547-06657

$2.80

PLUG SET This part replaces 09200-20810.

09200-20811

$3.74

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.43

GASKET

09168-06004

$1.46

COVER, MAGNETO

11351-27C00

Unavailable

GASKET, MAGNETO COVER

11483-27C00

Unavailable

BOLT

01547-06257

$2.09

COVER, ENGINE SPROCKET This part replaces 11360-27C00.

11360-28E00

$31.48

BOLT

01547-06407

$2.40

BOLT (6X105)

09103-06126

$4.12

PLATE, CHAIN GUIDE

27641-27C00

Unavailable

SPACER (6.5X10.5X25)

09180-06203

$2.80

SPACER (6.5X10.5X12)

09180-06221

Unavailable

CASE, WATER PUMP | Includes Item(s) 24 - 28

17410-27C00

Unavailable

CONNECTOR This part replaces 17412-27C00.

17412-28E00

Unavailable

O RING

17414-14300

$2.86

SCREW

02112-06167

$1.46

BOLT, DRAIN This part replaces 17415-00B00.

17415-43D00

$3.79

GASKET This part replaces 17413-00B00.

17413-28C10

$2.14

GASKET, WATER PUMP CASE

17431-01B02-H17

$7.03

PIN

04211-09129

$1.70

BOLT

01547-06207

$2.09

BOLT

01547-06307

$2.13

IMPELLER, WATER PUMP This part replaces 17491-01B03.

17491-43D01

$21.58

OIL SEAL, WATER PUMP This part replaces 17461-28C10.

17461-03B00

$7.89

SHAFT, WATER PUMP This part replaces 17511-27C10.

17511-27C11

$40.97

GEAR, WATER PUMP DRIVEN This part replaces 17441-27C10.

17441-43D20

Unavailable

PIN

09261-03010

Unavailable

CIRCLIP

08331-41249

$2.31

BEARING

08113-69000

$22.92

CIRCLIP

08331-31109

$1.82
