1991 Suzuki RM125M Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1991 Suzuki RM125M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

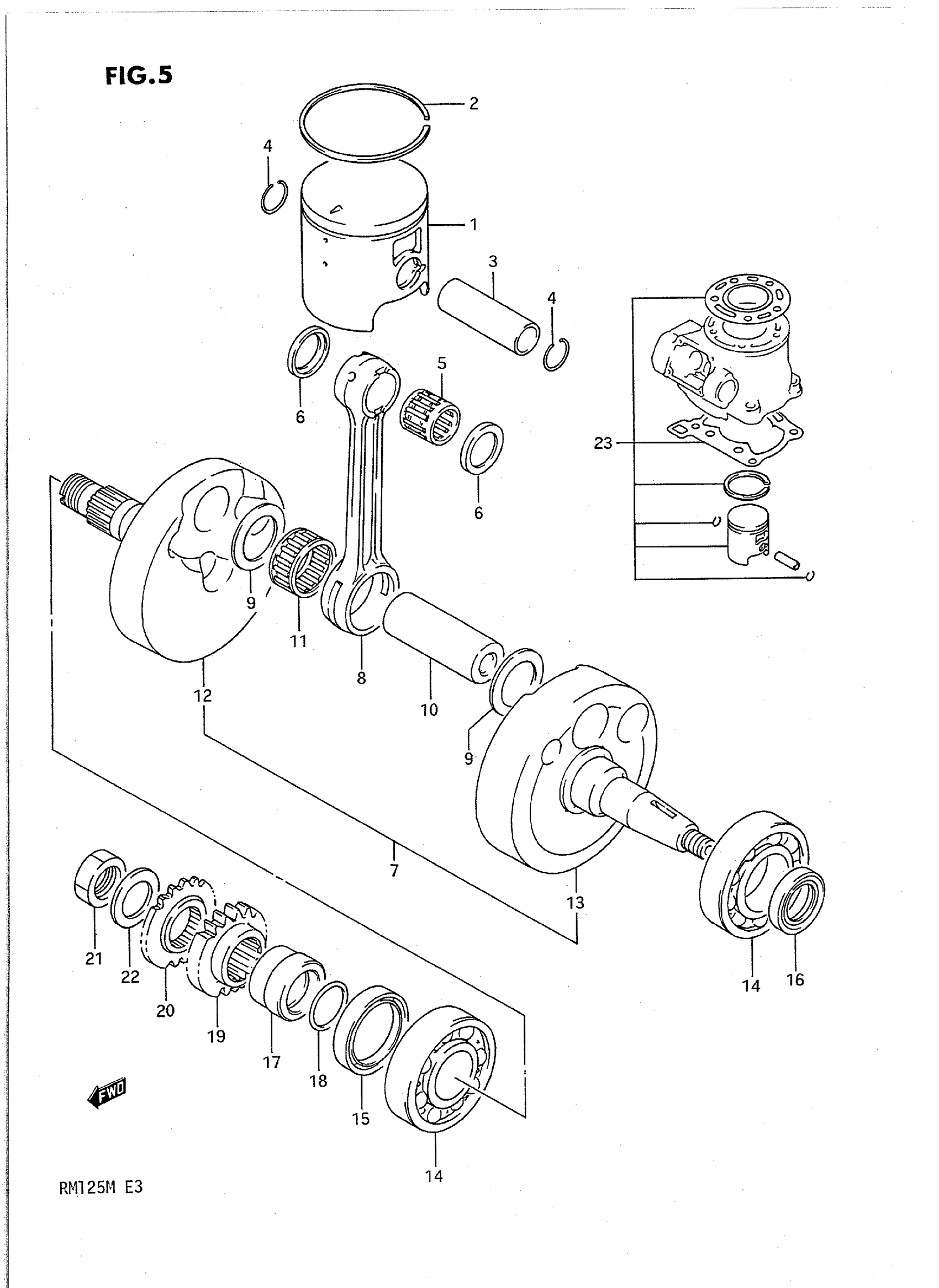

1991 Suzuki RM125M Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON This part replaces 12110-27C01-0F0.

12110-27C06-0F0

1
Out of stock

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-27C01-025.

12103-27810-025

1
Out of stock

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-27C01-050.

12103-27810-050

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 12141-01B10.

12141-01B11

1
Out of stock

2

NO DESCRIPTION AVAILABLE | OPT This part replaces 12141-01B10-025.

12141-01B11-025

1
Out of stock

2

NO DESCRIPTION AVAILABLE | OPT This part replaces 12141-01B10-050.

12141-01B11-050

1
Out of stock

3

PIN, PISTON

12151-01B41

1

$20.00

In stock

4

CIRCLIP

09381-15001

2

$1.52

In stock

5

BEARING, PISTON PIN

09263-15040

1

$21.42

In stock

6

WASHER, PISTON PIN

09169-15004

2
Out of stock

7

NO DESCRIPTION AVAILABLE | Includes Item(s) 8 - 13 This part replaces 12200-27C00.

12200-27C01

1
Out of stock

8

ROD, CONNECTING

12161-27C00-0D0

1
Out of stock

9

2

$8.50

In stock

10

PIN, CRANK

12211-27C00

1

$45.25

In stock

12

CRANKSHAFT, RH

12221-27C00

1
Out of stock

13

CRANKSHAFT, LH This part replaces 12261-27C00.

12261-27C02

1
Out of stock

15

1

$14.83

In stock

16

1

$13.20

In stock

17

1

$22.25

In stock

18

O RING

09280-20004

1

$1.59

In stock

19

GEAR, PRIMARY DRIVE (NT:17)

21111-01B41

1
Out of stock

20

GEAR, GOVERNOR DRIVE (NT:19)

12674-01B40

1
Out of stock

21

NUT

09140-16019

1
Out of stock

22

WASHER

09164-16002

1
Out of stock

23

NO DESCRIPTION AVAILABLE | OPT This part replaces 12100-27840.

12100-27846

1
Out of stock

23

NO DESCRIPTION AVAILABLE | OPT,E.NO.103569~ This part replaces 12100-27841.

12100-27846

1
Out of stock

23

NO DESCRIPTION AVAILABLE | OPT This part replaces 12100-27840-025.

12100-27846-025

1
Out of stock

23

NO DESCRIPTION AVAILABLE | OPT,E.NO.103569~ This part replaces 12100-27841-025.

12100-27846-025

1
Out of stock
