1991 Suzuki RM125M Crankcase Diagram

← All diagrams

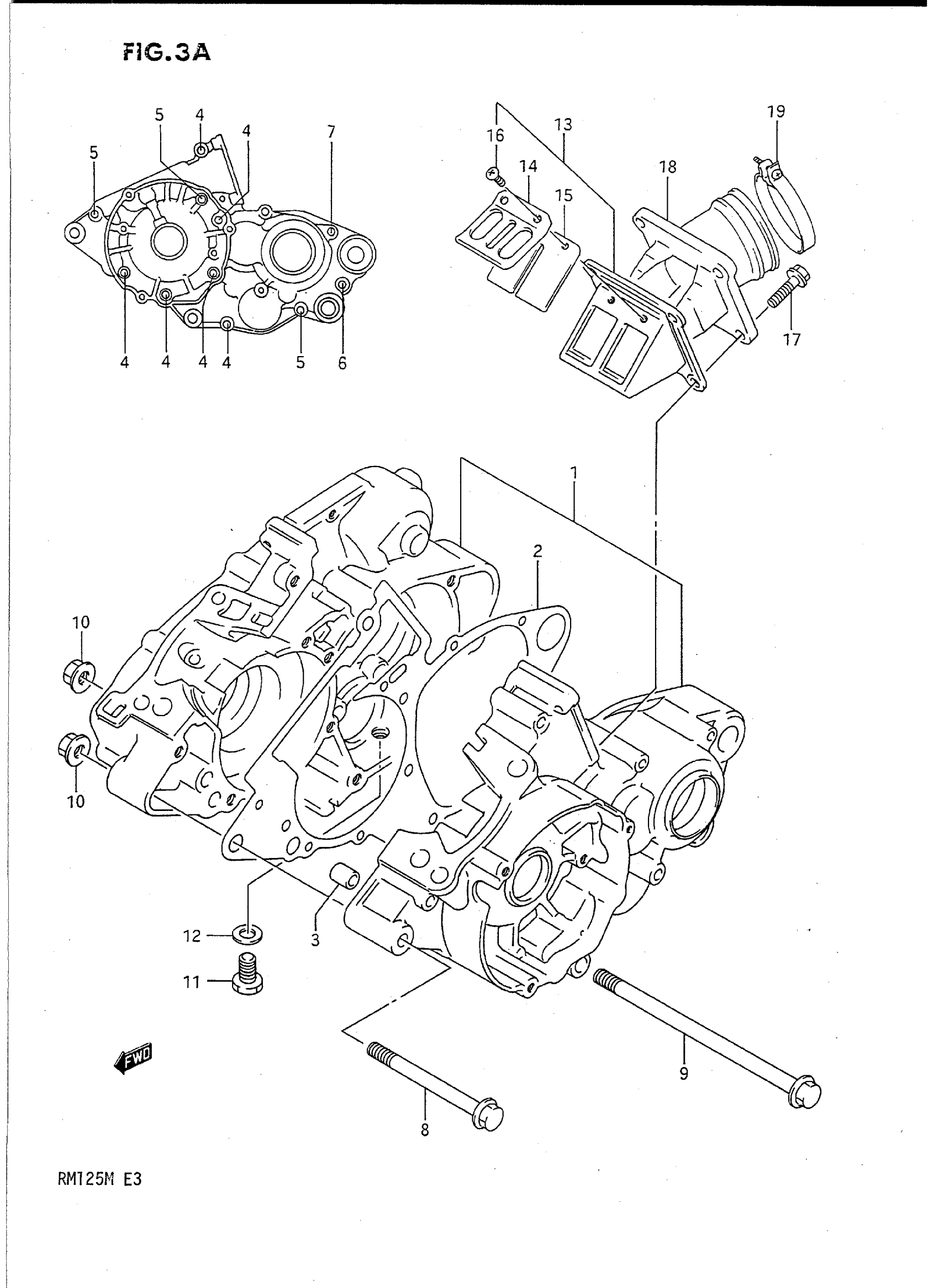

Find the part on the Crankcase diagram for your 1991 Suzuki RM125M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Suzuki RM125M Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 11300-27880.

11300-27881

1
Out of stock

2

GASKET, CRANKCASE

11481-27C01

1
Out of stock

3

PIN

04211-09129

2
Out of stock

4

BOLT

01547-06457

6
Out of stock

5

BOLT

01547-06557

3
Out of stock

6

BOLT

01547-06607

1
Out of stock

7

BOLT

01547-06657

1
Out of stock

8

BOLT (8X88)

09103-08010

1
Out of stock

9

BOLT (8X145) | MODEL L This part replaces 09103-08271.

09103-08298

1
Out of stock

9

BOLT (8X145) | MODEL M

09103-08298

1
Out of stock

10

NUT

09159-08067

2
Out of stock

11

1

$2.68

In stock

12

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

1
Out of stock

13

VALVE ASSY,REED | Includes Item(s) 14 - 16 This part replaces 13150-27C10.

13150-36E01

1
Out of stock

14

2

$8.12

In stock

15

VALVE, REED This part replaces 13153-27C10.

13153-43D00

2
Out of stock

16

SCREW This part replaces 02112-33088.

02112-3308A

4
Out of stock

17

BOLT

01547-06207

4
Out of stock

18

PIPE, INTAKE

13110-27C10

1
Out of stock

19

CLAMP

09402-50306

1
Out of stock
