1991 Suzuki RM125M Crankshaft Diagram

← All diagrams

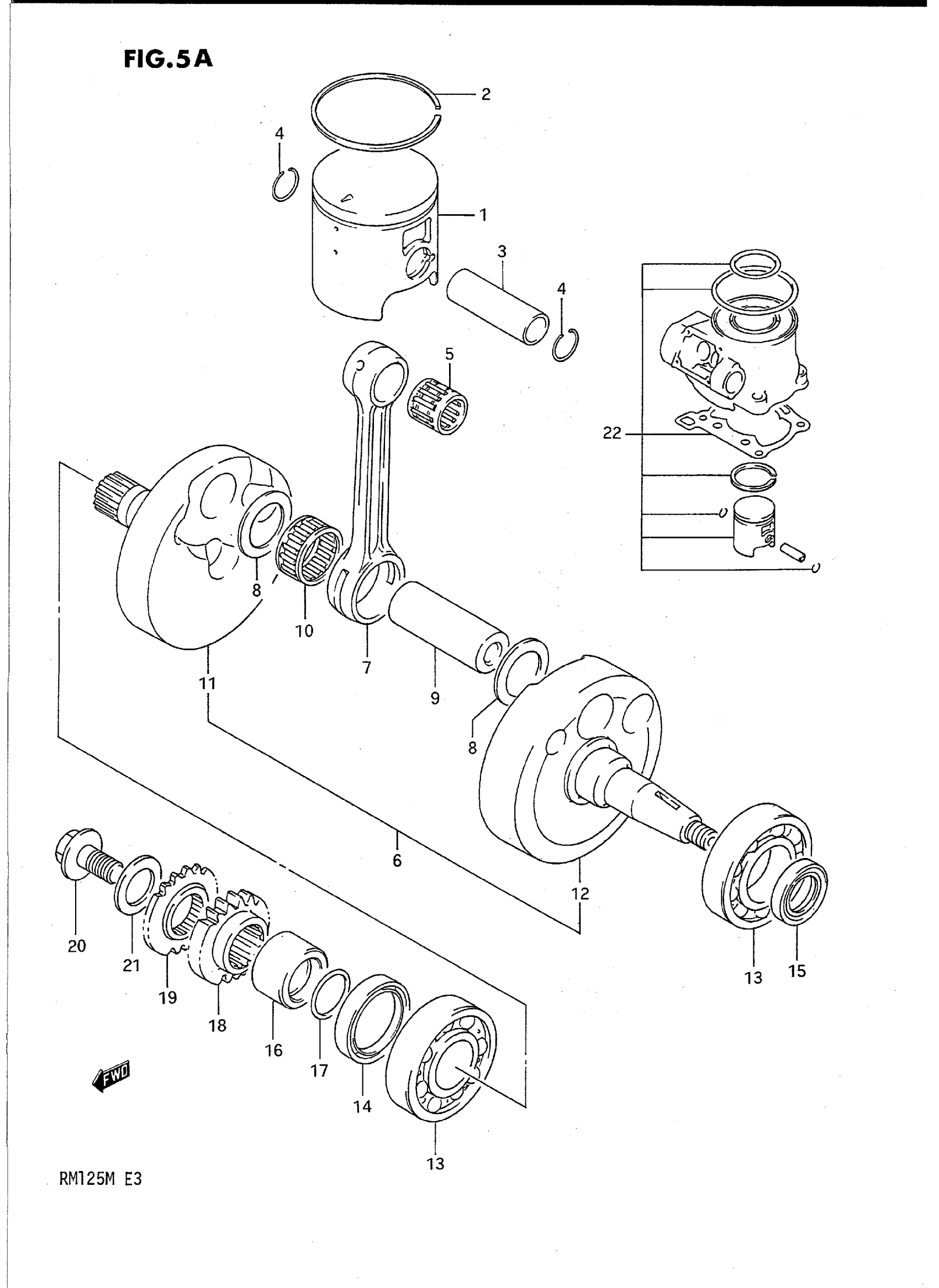

Find the part on the Crankshaft diagram for your 1991 Suzuki RM125M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Suzuki RM125M Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON This part replaces 12110-27C12-0F0.

12110-36E20-0F0

1
Out of stock

2

RING, PISTON

12141-27C10

1
Out of stock

3

PIN, PISTON

12151-01B41

1
Out of stock

4

CIRCLIP

09381-15001

2
Out of stock

5

BEARING, PISTON PIN

09263-15040

1
Out of stock

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 - 12 This part replaces 12200-27C10.

12200-27C21

1
Out of stock

7

ROD, CONNECTING

12161-27C10

1
Out of stock

8

WASHER, 22X27.5 This part replaces 09160-22043.

09160-22070

2
Out of stock

9

PIN, CRANK

12211-27C00

1
Out of stock

10

BEARING (22X28X16) This part replaces 09263-22047-0C0.

09263-22060

1
Out of stock

11

CRANKSHAFT, RH This part replaces 12221-27C10.

12221-27C11

1
Out of stock

12

CRANKSHAFT, LH This part replaces 12261-27C00.

12261-27C02

1
Out of stock

13

BEARING, RH (22X56X16) This part replaces 09262-22020.

09262-22025

2
Out of stock

14

SEAL,OIL (30X40X7) This part replaces 09283-30060.

09283-30076

1
Out of stock

15

OIL SEAL, LH (18X30X6)

09283-18006

1
Out of stock

16

SPACER This part replaces 12359-27C10.

12359-27C30

1
Out of stock

17

O RING

09280-20004

1
Out of stock

18

GEAR, PRIMARY DRIVE (NT:17)

21111-01B41

1
Out of stock

19

GEAR, GOVERNOR DRIVE (NT:19)

12674-01B40

1
Out of stock

20

BOLT, PRIMARY DRIVE GEAR This part replaces 21141-27C11.

09103-10339

1
Out of stock

21

WASHER

09164-11004

1
Out of stock

22

TOP END KIT, ENGINE | OPT This part replaces 12100-27860.

12100-43861

1
Out of stock
