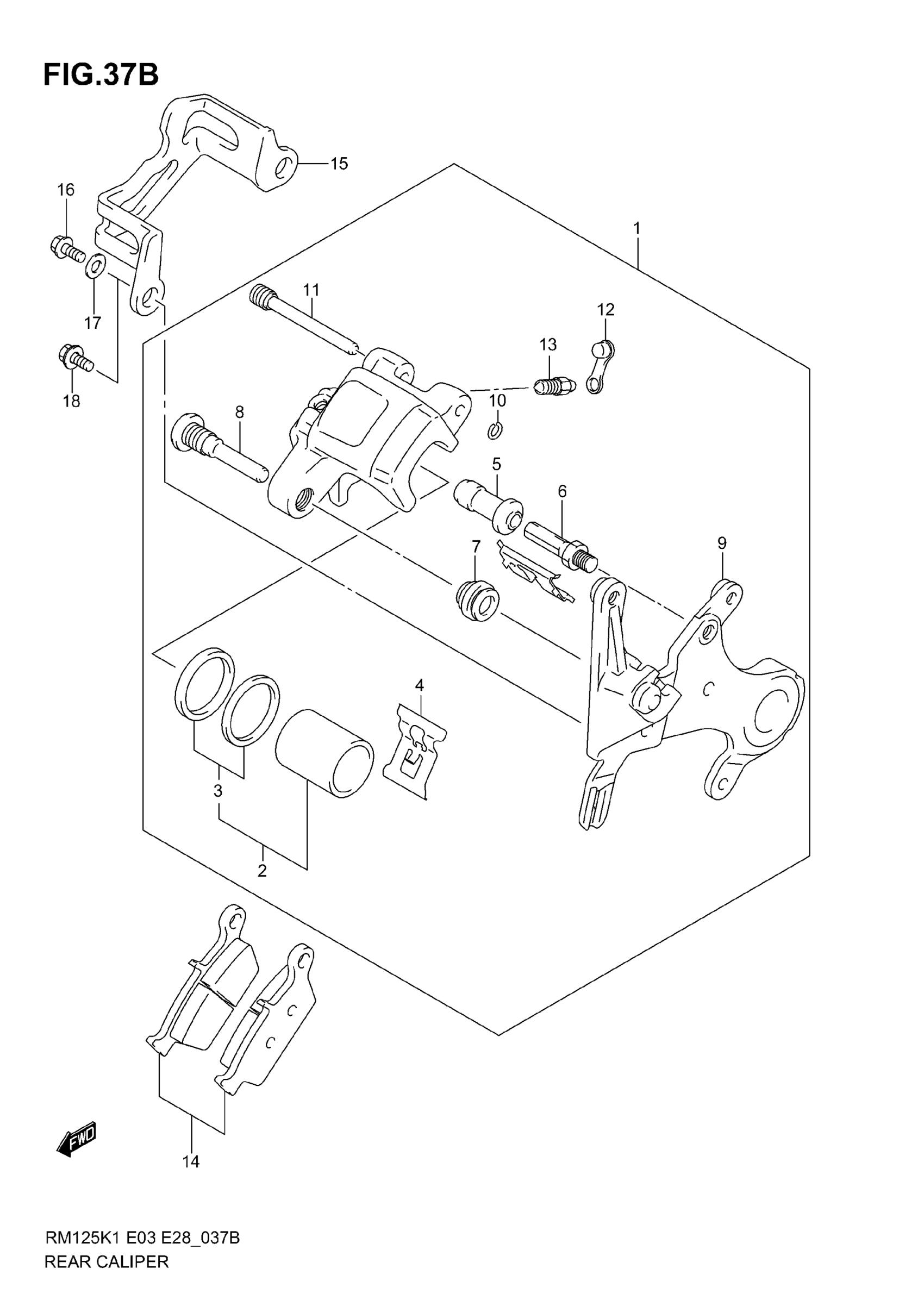

Suzuki RM125 (2006) REAR CALIPER (MODEL K5/K6) Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 13

69100-37F40-999

$477.10

2

PISTON SET

69100-43810

$33.54

3

SEAL SET, PISTON

69100-36810

$8.50

4

SPRING

59315-36E00

$12.53

5

BOOT

59386-13A00

$7.28

6

PIN

59382-27C30

$8.54

7

BOOT

59303-14500

$5.06

8

PIN

59305-36E00

$17.14

9

BRACKET

69350-37F20

$181.53

10

RING, STOPPER

59145-37F00

$6.30

11

PIN

69345-37F00

$23.37

12

BLEEDER

59121-01A00

$7.99

13

CAP

59122-01A00

$3.97

14

PAD SET | MODEL K5

69100-37820

Unavailable

14

PAD SET | MODEL K6

69100-37830

Unavailable

15

GUARD, REAR CALIPER This part replaces 69725-37F00.

69725-37F01

$29.07

16

BOLT | MODEL K5

09103-06256

$2.27

17

WASHER | MODEL K5

08322-01067

$1.86

18

BOLT | MODEL K6

09116-06197

$2.80
