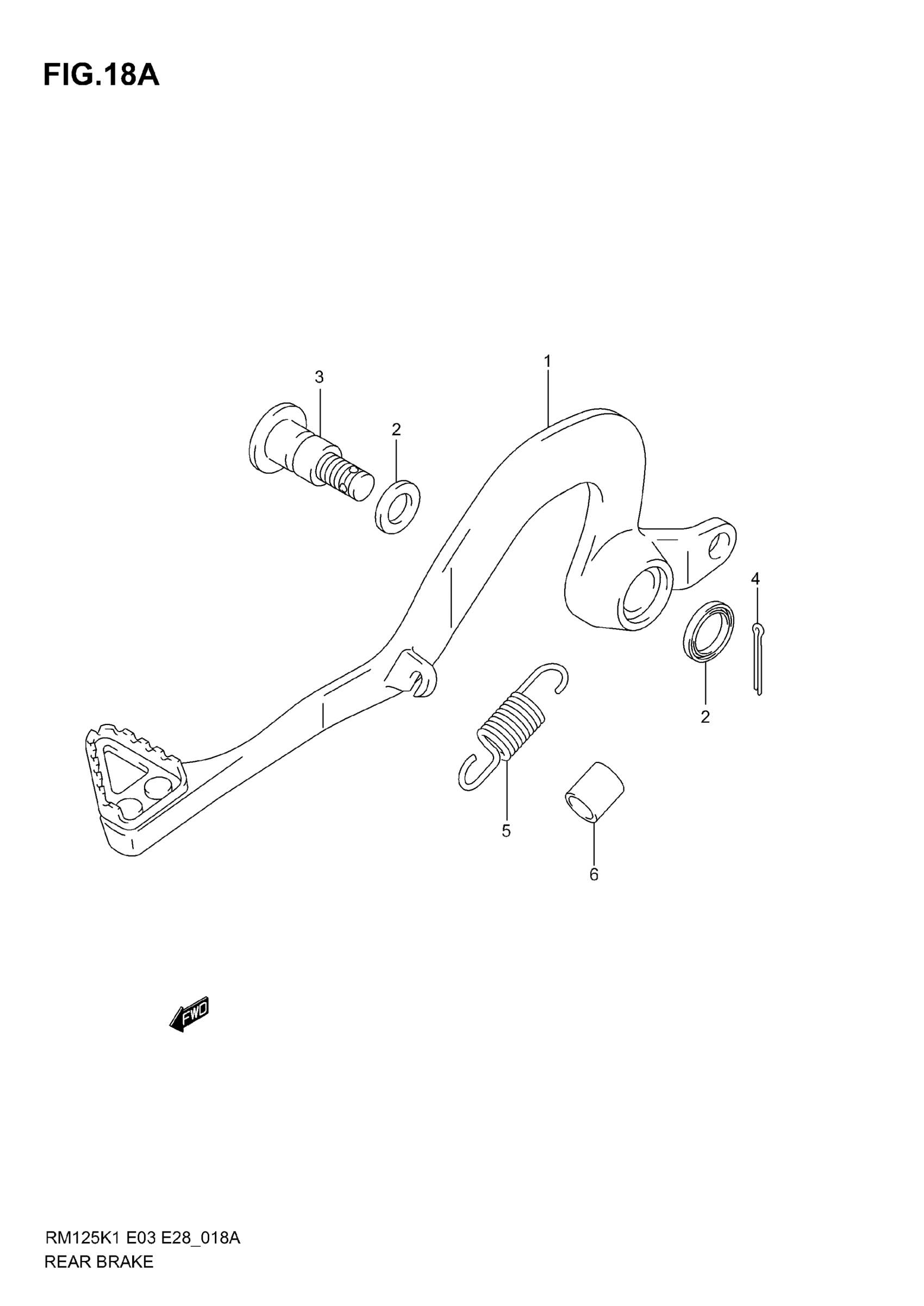

Suzuki RM125 (2006) REAR BRAKE (MODEL K3/K4/K5/K6) Diagram

#

Description

Price

1

PEDAL, BRAKE | MODEL K3/K4

43100-37F10

Unavailable

1

PEDAL, BRAKE | MODEL K5/K6; Includes Item(s) 2

43100-36F20

$283.67

2

DUST SEAL

09284-15006

$3.21

3

SHAFT

43142-37F00

$21.41

4

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

5

SPRING | MODEL K3/K4 This part replaces 09443-13034.

09443-13034-XC0

$3.01

5

SPRING | MODEL K5/K6

09443-13036

$2.88

5

PROTECTOR | MODEL K5/K6

43145-37F00

$9.08
