2006 Suzuki RM125 Rear Caliper Diagram

← All diagrams

Find the part on the Rear Caliper diagram for your 2006 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

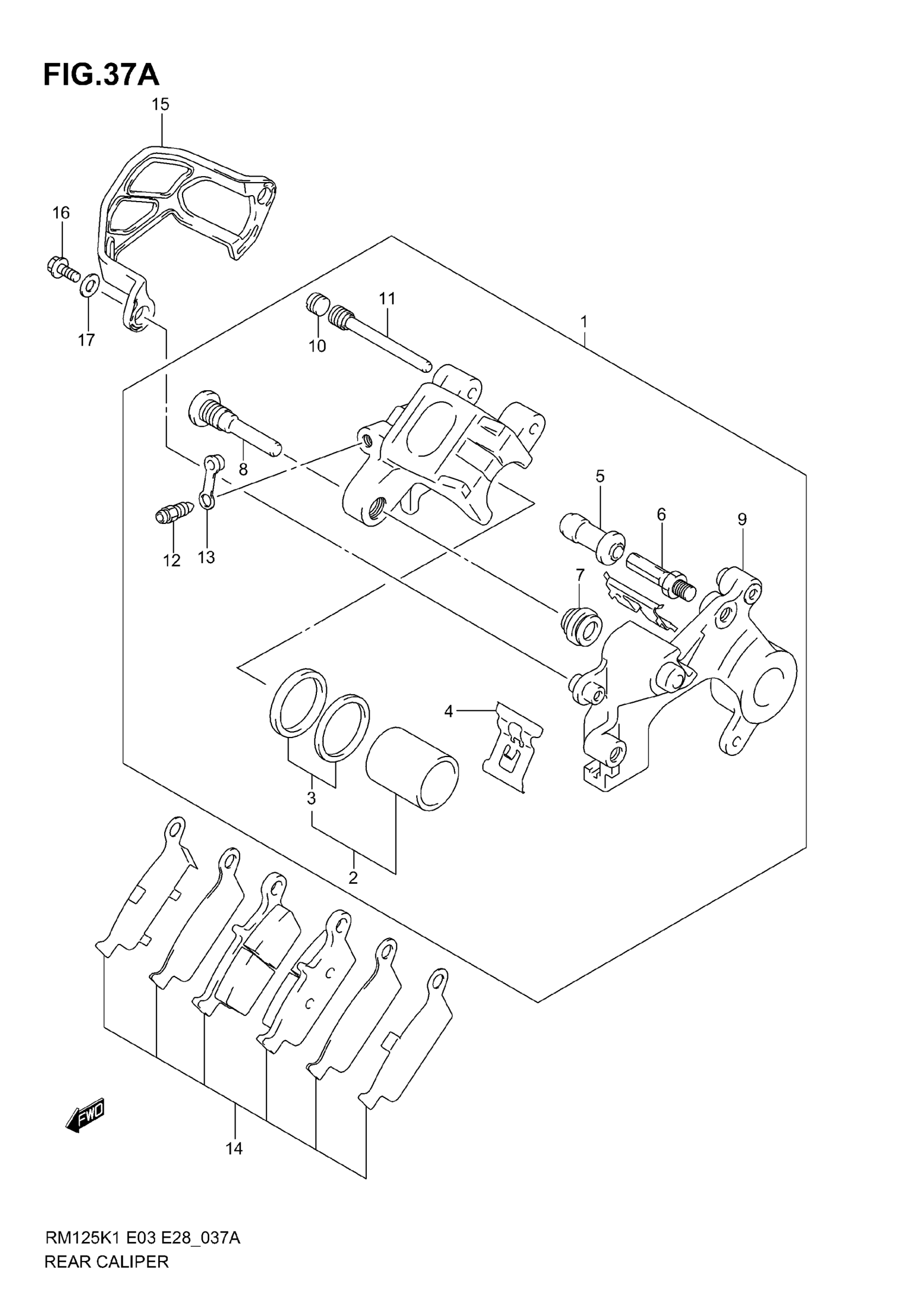

2006 Suzuki RM125 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 13

69100-37F30-999

1
Out of stock

2

PISTON SET

69100-43810

1

$36.52

In stock

3

SEAL SET, PISTON

69100-36810

1

$9.26

In stock

4

SPRING

59315-36E00

1

$12.53

In stock

5

BOOT

59386-13A00

1
Out of stock

6

PIN

59382-27C30

1

$9.31

In stock

7

BOOT

59303-14500

1
Out of stock

8

PIN

59305-36E00

1

$18.66

In stock

9

BRACKET

69350-37F10

1
Out of stock

10

PLUG, PIN

59146-21E10

1

$6.13

In stock

11

.PIN HANGER

69345-43D00

1

$15.33

In stock

12

BLEEDER

59121-01A00

1
Out of stock

13

CAP

59122-01A00

1
Out of stock

14

PAD & RETAINER SET

69100-37810

1
Out of stock

15

REAR CALIPER GU This part replaces 69725-29F00.

69700-29821

1
Out of stock

16

BOLT This part replaces 01547-06123.

01547-0612B

2
Out of stock

17

.WASHER This part replaces 08322-01063.

08322-0106B

2
Out of stock
