2006 Suzuki RM125 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2006 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

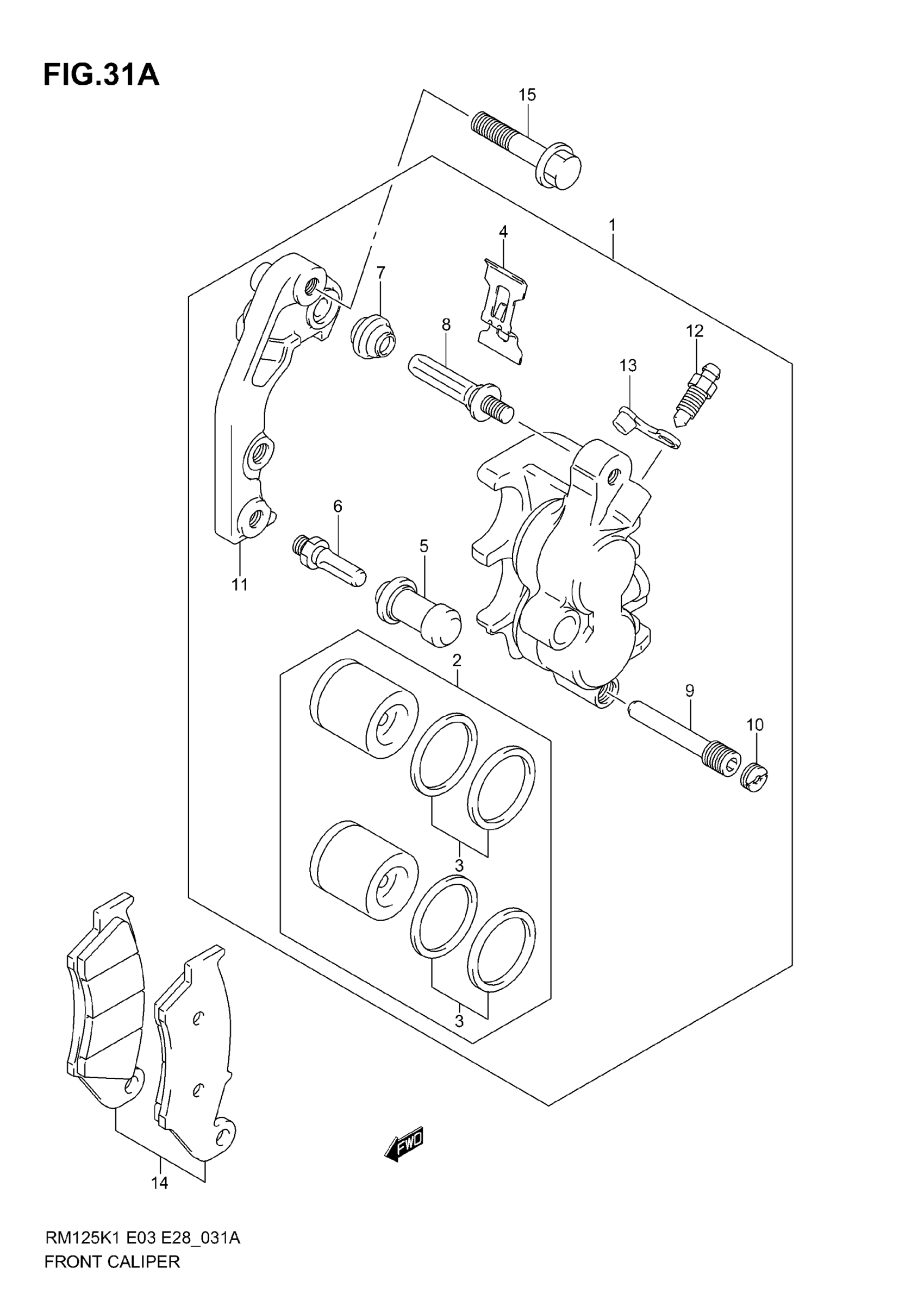

2006 Suzuki RM125 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT | Includes Item(s) 2 - 13 This part replaces 59300-37F00-999.

59300-37F04-999

1
Out of stock

2

PISTON SET

59300-27840

1

$49.57

In stock

3

SEAL SET, PISTON

59300-13820

1

$21.18

In stock

4

SPRING

59315-13E00

1

$15.12

In stock

5

BOOT

59386-13A00

1
Out of stock

6

PIN

59382-37F00

1
Out of stock

7

BOOT

59303-14500

1
Out of stock

8

PIN

59305-27C00

1

$26.52

In stock

9

PIN

59345-13E00

1

$14.31

In stock

10

PLUG

59146-21E10

1

$6.13

In stock

11

BRACKET

59350-13E00

1

$152.71

In stock

12

BLEEDER

59121-01A00

1
Out of stock

13

CAP

59122-01A00

1
Out of stock

14

PAD SET

59301-36810

1
Out of stock

15

BOLT

09103-08403

2
Out of stock
