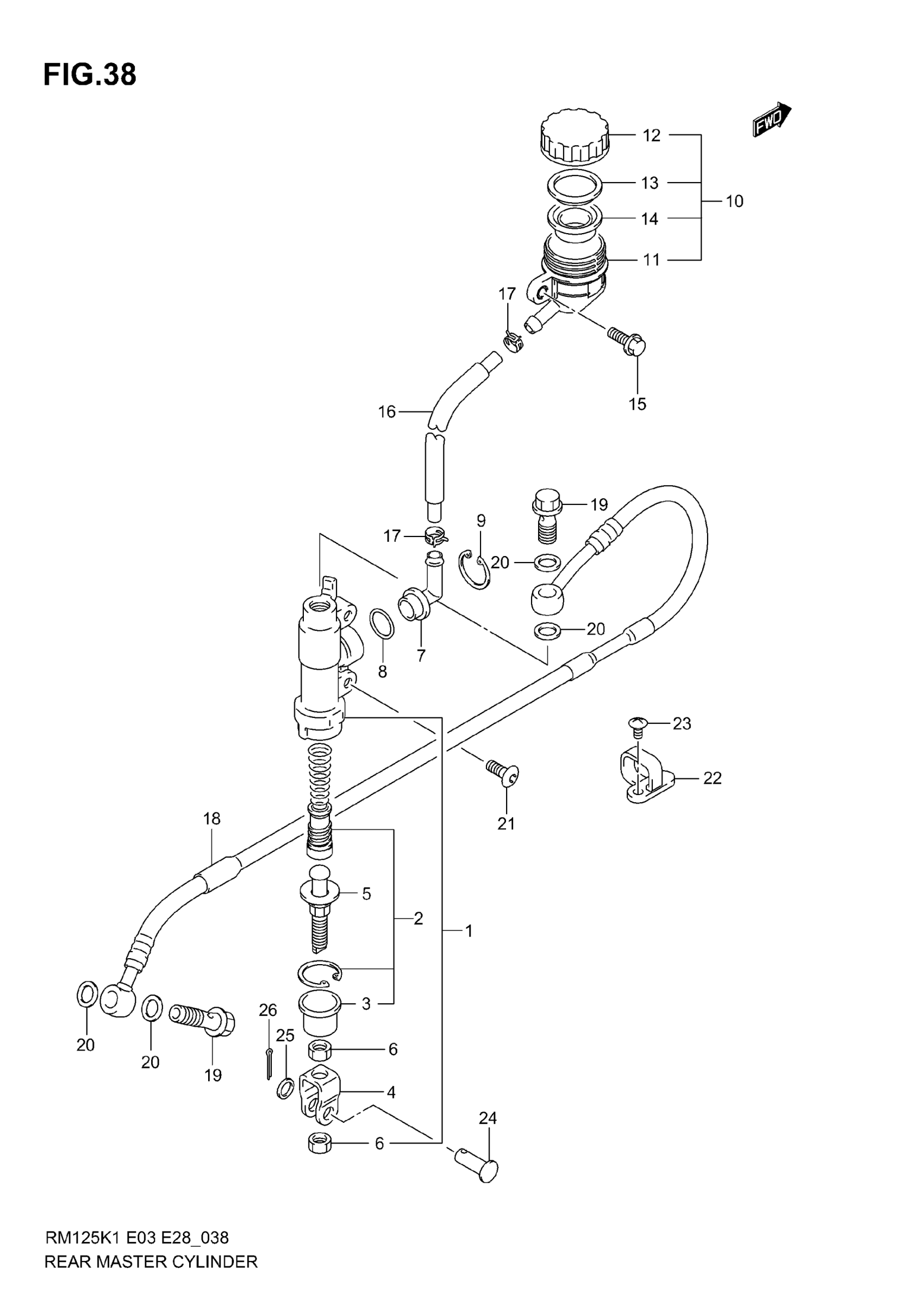

Suzuki RM125 (2006) REAR MASTER CYLINDER (MODEL K1/K2) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-37F00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$29.55

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-37F00

Unavailable

5

ROD, PUSH

69670-27A30

$29.60

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-00B20

$6.42

8

O RING

69686-34200

$2.80

9

CIRCLIP

69674-00B20

$3.73

10

TANK ASSY, RESERVOIR | Includes Item(s) 11 - 14

69740-03D10

$85.27

11

TANK, RESERVOIR

69741-03D00

$53.58

12

CAP

69669-03D10

$25.55

13

PLATE

69668-00B20

$8.65

14

DIAPHRAGM

69667-00B20

$20.82

15

BOLT

09103-06233

$2.18

16

HOSE

69731-37F00

Unavailable

17

CLAMP

69735-00B20

$5.43

18

HOSE,RR BRAKE This part replaces 69480-36F00.

69480-36F02

Unavailable

19

UNION This part replaces 09360-10042.

09360-10062

$5.81

20

WASHER (10X15X1.5)

09161-10009

$1.83

21

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.35

22

GUIDE RR BRAKE (HOLE 1-5.5) This part replaces 61196-27C30.

61196-27C50

$5.65

23

SCREW This part replaces 02142-05103.

02142-0510B

$1.77

24

PIN

09200-08048

$2.80

25

WASHER This part replaces 09160-08119.

09160-08090

$2.38

26

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22
