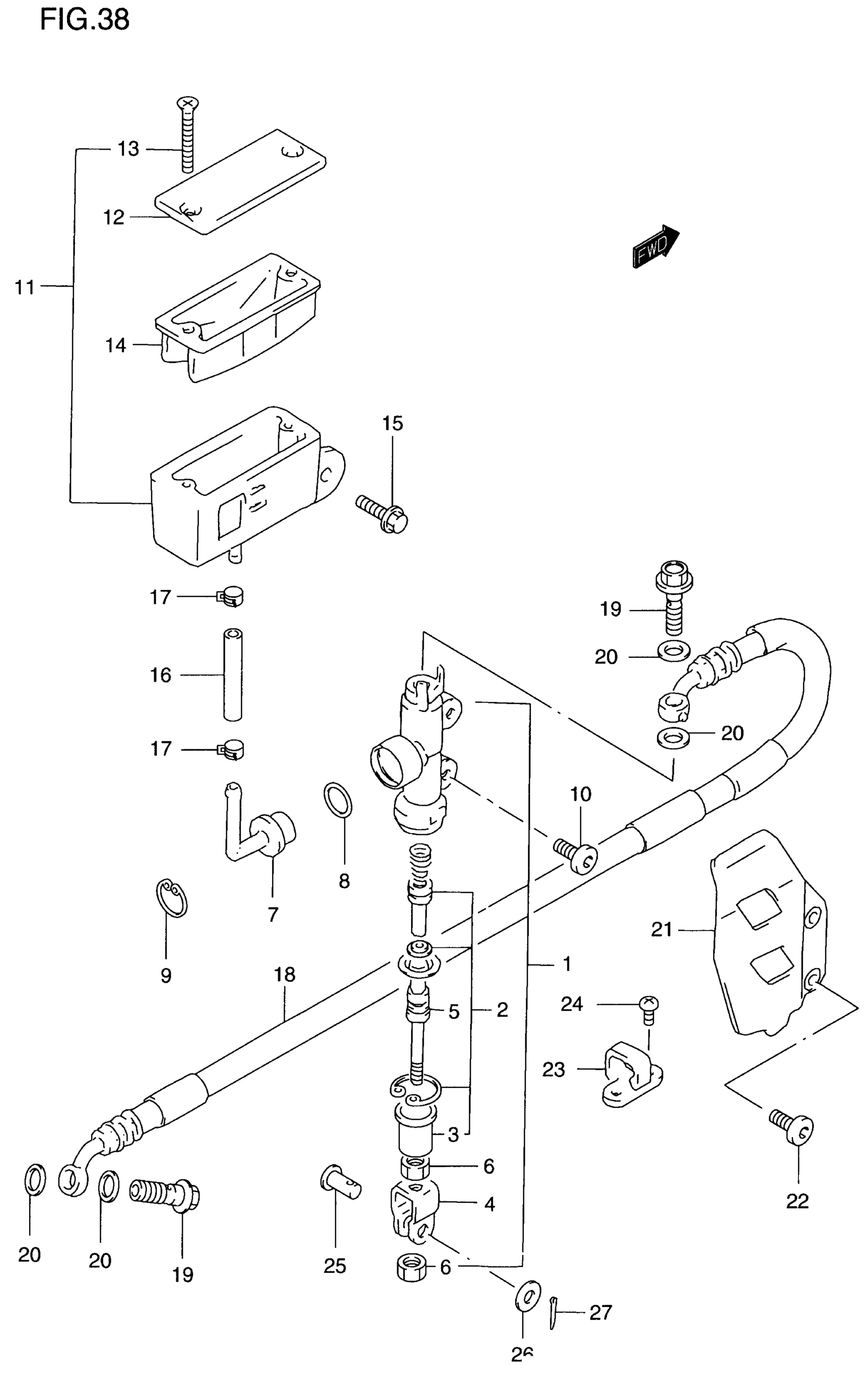

Suzuki RM125 (2000) REAR MASTER CYLINDER (MODEL T) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-36E00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$29.55

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-00B21

$19.22

5

ROD, PUSH

69670-36E00

$33.47

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-00B20

$6.42

8

O RING

69686-34200

$2.80

9

CIRCLIP

69674-00B20

$3.73

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.35

11

TANK ASSY,RESER | Includes Item(s) 12 - 14 This part replaces 69740-36E00.

69740-36E01

$78.50

12

CAP

59669-27C01

$26.32

13

SCREW

69689-36E00

$3.65

14

DIAPHRAGM

59667-14500

$9.53

15

BOLT This part replaces 01547-06123.

01547-0612B

$1.22

16

HOSE, RESERVOIR TANK (L:85) This part replaces 69731-36E00.

59731-42E00

$18.80

17

CLAMP

69735-00B20

$5.43

18

HOSE,RR BRAKE This part replaces 69480-36E00.

69480-36E02

Unavailable

19

UNION This part replaces 09360-10042.

09360-10062

$5.81

20

WASHER (10X15X1.5)

09161-10009

$1.83

21

GUARD, REAR MASTER CYLINDER

43570-36E00

Unavailable

22

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.35

23

GUIDE, HOSE

61196-27C20

$8.83

24

SCREW This part replaces 02142-05103.

02142-0510B

$1.77

25

PIN

09200-08048

$2.80

26

WASHER

09160-08074

Unavailable

27

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22
