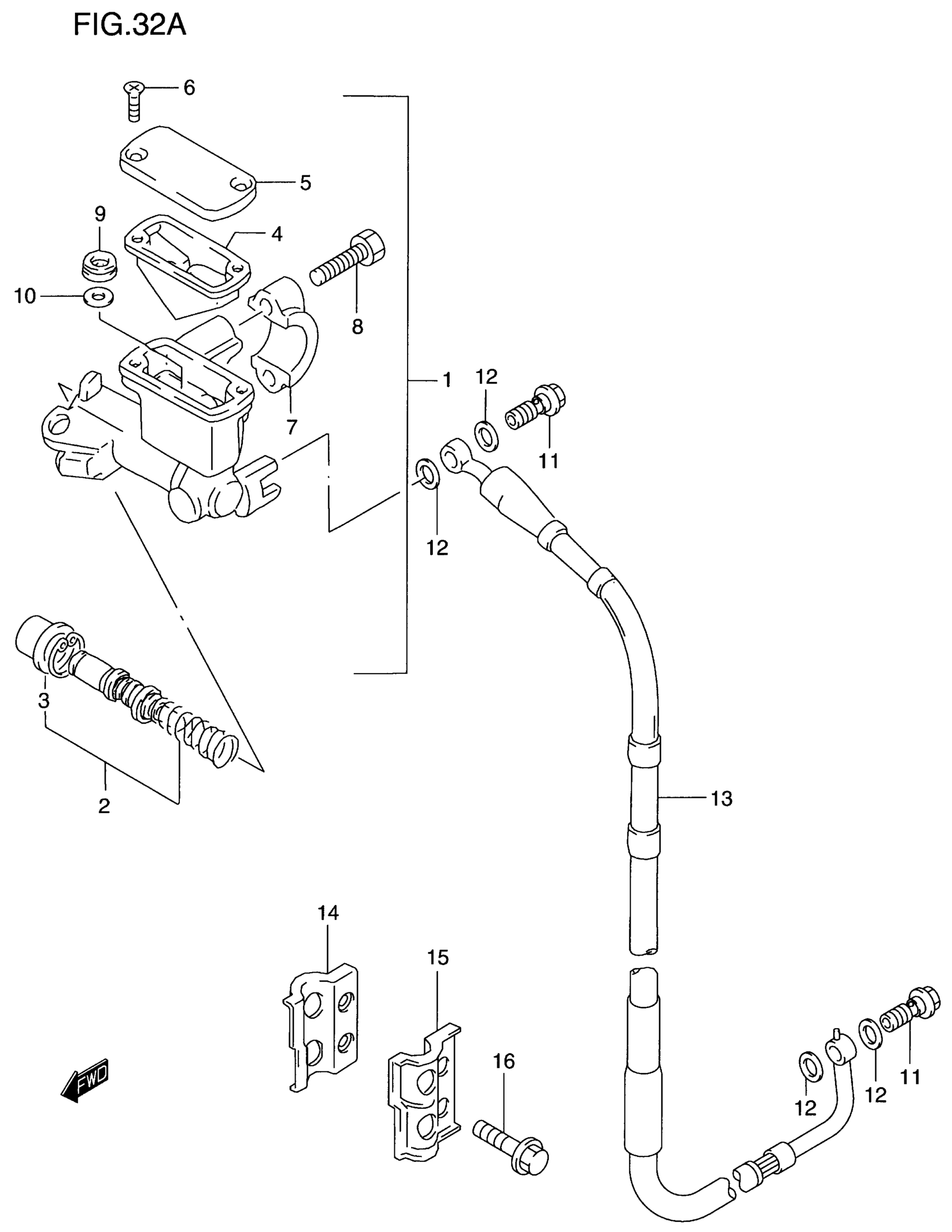

Suzuki RM125 (2000) FRONT MASTER CYLINDER (MODEL X/Y) Diagram

Description

Price

CYLINDER ASSY,F | Includes Item(s) 2 - 10 This part replaces 59600-36E10.

59600-36E11

$263.25

PISTON & CUP SE This part replaces 59600-36830.

59600-36831

$54.43

BOOT

59666-36E00

$9.35

DIAPHRAGM

59667-36E00

$13.50

CAP (SILVER)

59669-36E10

$22.25

SCREW

69689-49300

$1.81

HOLDER (SILVER)

59671-27C00

$19.22

BOLT

59675-27C00

$3.34

SEPARATOR

59748-36E00

$10.58

RING

69744-36E00

$4.53

UNION This part replaces 09360-10042.

09360-10062

$5.81

WASHER (10X15X1.5)

09161-10009

$1.83

HOSE, FRONT BRAKE

59480-36E30

Unavailable

CLAMP, INNER

59260-36E00

$13.03

CLAMP, OUTER

59271-36E00

$9.97

BOLT This part replaces 01547-06163.

01547-0616B

$2.43
