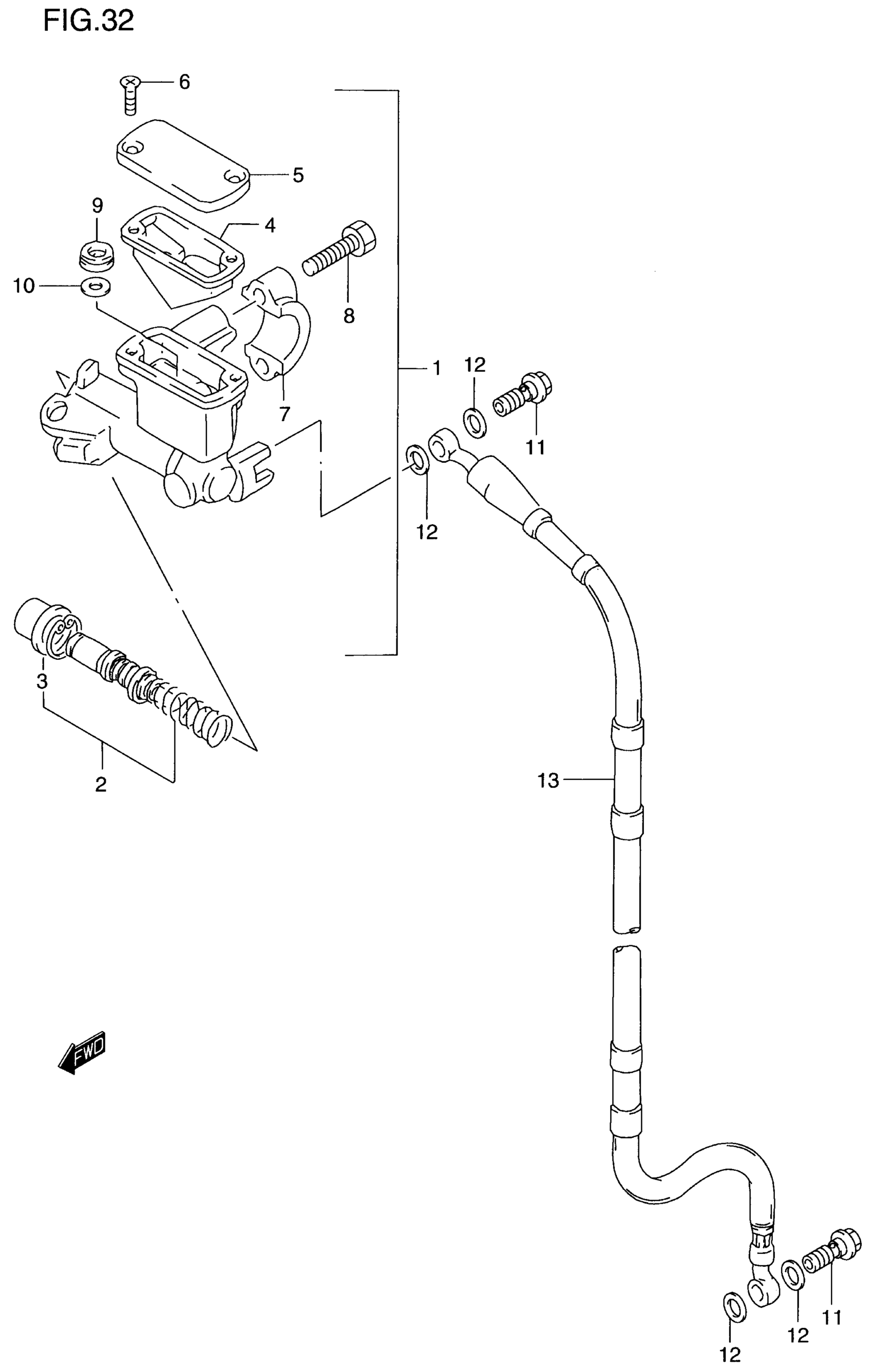

Suzuki RM125 (2000) FRONT MASTER CYLINDER (MODEL T/V/W) Diagram

CYLINDER ASSY, FRONT MASTER (BLACK) (BLACK) (SILVER) | MODEL T; Includes Item(s) 2 - 10

59600-36E00

Unavailable

PISTON & CUP SE This part replaces 59600-36830.

59600-36831

$54.43

BOOT

59666-36E00

$9.35

DIAPHRAGM

59667-36E00

$13.50

CAP (BLACK) | MODEL T

59669-36E00

Unavailable

CAP (SILVER) | MODEL V/W

59669-36E10

$22.25

SCREW

69689-49300

$1.81

.HOLDER | MODEL T

59671-36500

$11.50

HOLDER (SILVER) | MODEL V/W

59671-27C00

$19.22

BOLT

59675-27C00

$3.34

SEPARATOR

59748-36E00

$10.58

RING

69744-36E00

$4.53

UNION This part replaces 09360-10042.

09360-10062

$5.81

WASHER (10X15X1.5)

09161-10009

$1.83

HOSE, FRONT BRAKE | MODEL T This part replaces 59480-36E00.

59480-36E10

Unavailable

HOSE, FRONT BRAKE | MODEL V/W

59480-36E10

Unavailable
