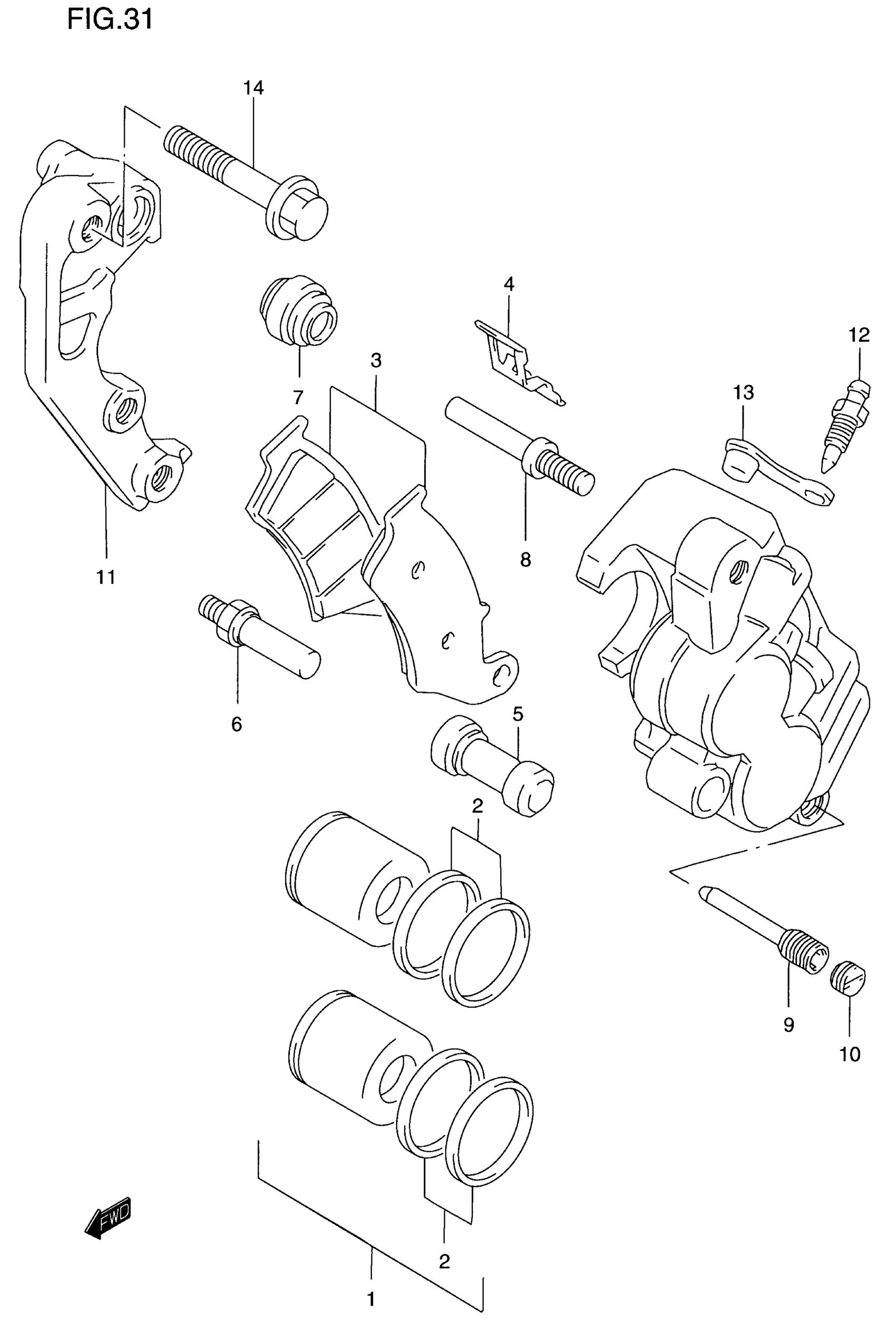

Suzuki RM125 (2000) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY,FR | MODEL T This part replaces 59300-36E00.

59300-36E63-999

Unavailable

CALIPER ASSY,FR | MODEL V This part replaces 59300-36E10.

59300-36E63-999

Unavailable

CALIPER ASSY,FR | MODEL W This part replaces 59300-36E20.

59300-36E63-999

Unavailable

CALIPER ASSY,FR | MODEL X This part replaces 59300-36E30.

59300-36E63-999

Unavailable

CALIPER ASSY,FR | MODEL Y; Includes Item(s) 1 - 13 This part replaces 59300-36E40.

59300-36E63-999

Unavailable

1

PISTON SET

59300-27840

$45.51

2

SEAL SET, PISTON

59300-13820

$21.18

3

PAD SET | MODEL T

59300-36850

Unavailable

3

PAD SET | MODEL V This part replaces 59300-36860.

59300-36890

Unavailable

3

PAD SET | MODEL W This part replaces 59300-36870.

59300-36890

Unavailable

3

PAD SET | MODEL X

59300-36880

$56.66

3

PAD SET | MODEL Y

59300-36890

Unavailable

4

SPRING | MODEL T

59315-13E00

$13.89

4

SPRING | MODEL V

59315-13E10

Unavailable

4

SPRING | MODEL W/X/Y

59315-13E00

$13.89

5

BOOT

59386-13A00

$7.28

6

PIN

59382-27C30

$8.54

7

BOOT

59303-14500

$5.06

8

PIN

59305-27C00

$26.52

9

PIN

59345-13E00

$13.13

10

PLUG

59146-21E10

$5.62

11

BRACKET

59350-13E00

$152.71

12

BLEEDER

59121-01A00

$7.99

13

CAP

59122-01A00

$3.97

14

BOLT (8X40)

09103-08338

$2.80
