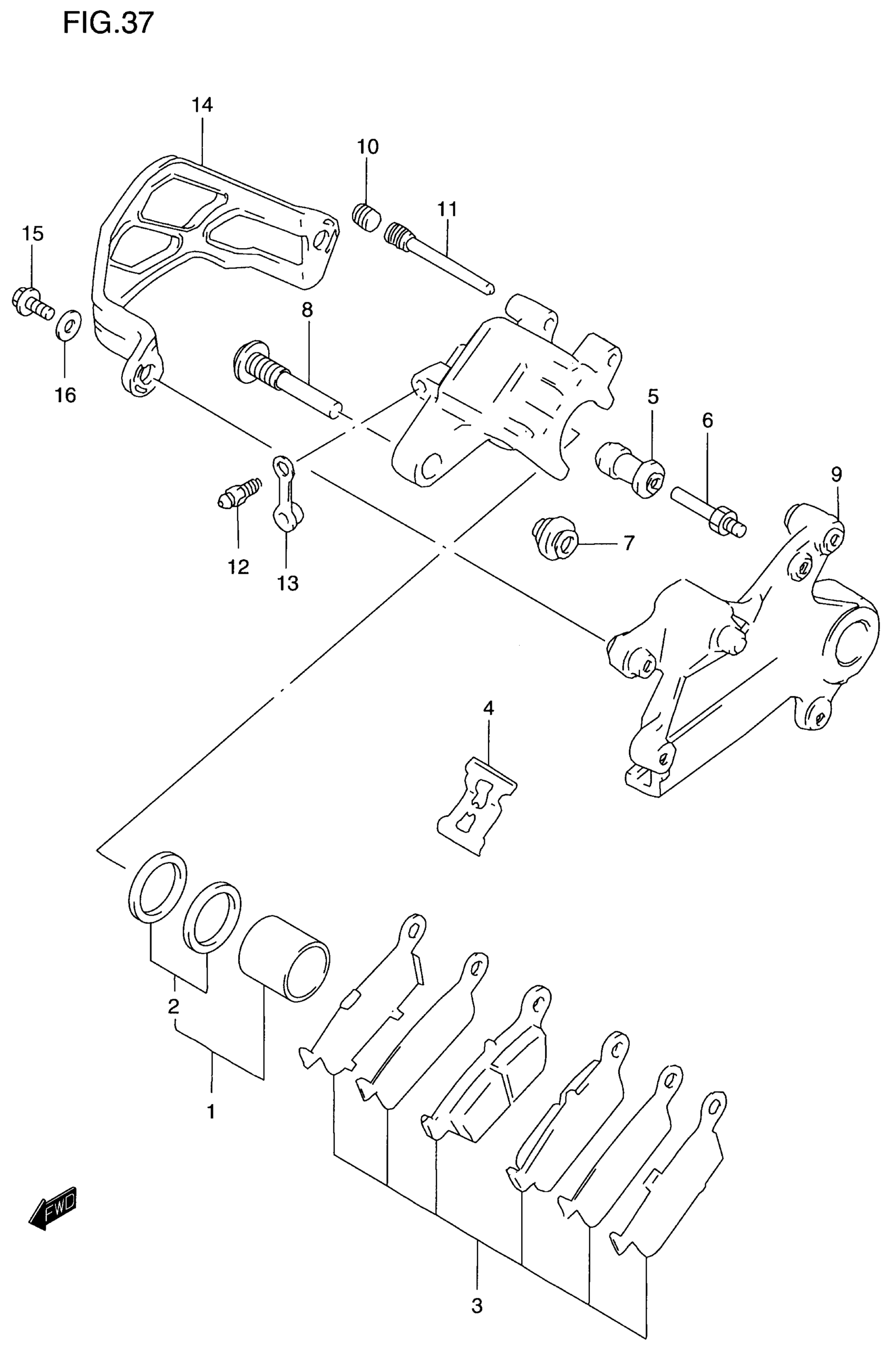

Suzuki RM125 (2000) REAR CALIPER Diagram

#

Description
Price

CALIPER ASSY, R | MODEL T This part replaces 69100-36E00.

69100-44E00-999

Unavailable

CALIPER ASSY, R | MODEL V This part replaces 69100-36E10.

69100-44E00-999

Unavailable

CALIPER ASSY, REAR | MODEL W This part replaces 69100-36E20.

69100-44E10-999

$295.43

CALIPER ASSY, REAR | MODEL X

69100-36E30

Unavailable

CALIPER ASSY, REAR | MODEL Y; Includes Item(s) 1 - 13 This part replaces 69100-36E40.

69100-37F20-999

$312.08

1

PISTON SET

69100-43810

$33.54

2

SEAL SET, PISTON

69100-36810

$8.50

3

PAD SET | MODEL T

69100-36820

Unavailable

3

PAD SET | MODEL V This part replaces 69100-36830.

69100-36860

Unavailable

3

PAD SET | MDOEL W

69100-36840

$66.10

3

PAD SET | MODEL X

69100-36850

$46.20

3

PAD SET | MODEL Y

69100-36860

Unavailable

4

SPRING

59315-36E00

$12.53

5

BOOT

59386-13A00

$7.28

6

PIN

59382-27C30

$8.54

7

BOOT

59303-14500

$5.06

8

PIN

59305-36E00

$17.14

9

BRACKET | MODEL T/V/W

69351-36E00

$190.22

9

BRACKET | MODEL X

69350-36E10

Unavailable

9

BRACKET | MODEL Y

69350-36E20

Unavailable

10

PLUG, PIN

59146-21E10

$5.62

11

.PIN HANGER

69345-43D00

$10.88

12

BLEEDER

59121-01A00

$7.99

13

CAP

59122-01A00

$3.97

14

GUARD, REAR CALIPER

69725-36E00

Unavailable

15

BOLT This part replaces 01547-06123.

01547-0612B

$1.22

16

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24
