1995 Suzuki RM125 Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1995 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

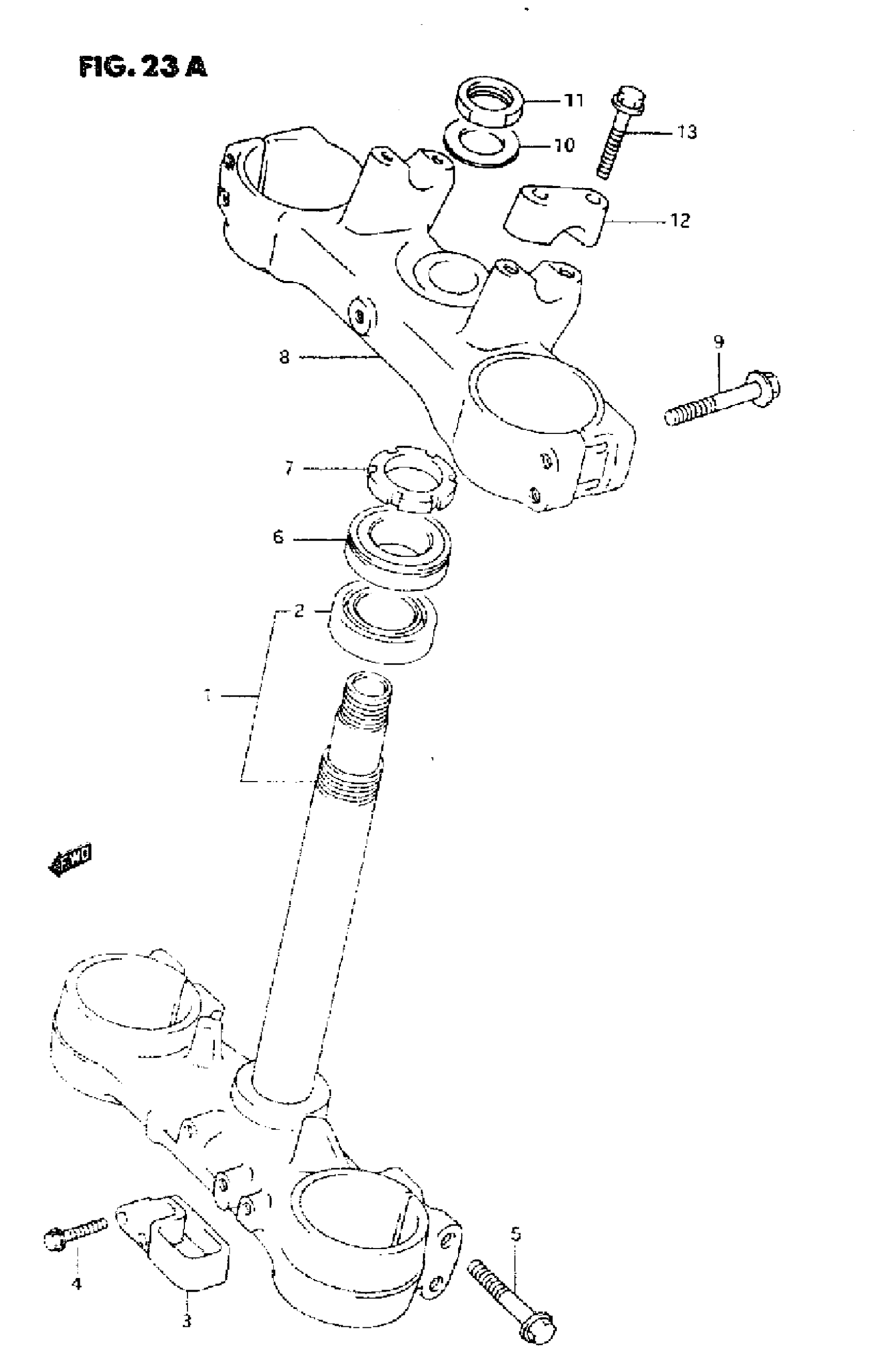

1995 Suzuki RM125 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING | MODEL P/R This part replaces 51410-28E00.

51410-29E50

1
Out of stock

1

STEM, STEERING | MODEL S

51410-29E50

1
Out of stock

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

1
Out of stock

3

GUIDE, HOSE

58621-27C40

1
Out of stock

4

BOLT This part replaces 58629-27C40.

01547-06257

2
Out of stock

5

BOLT This part replaces 51328-27C40.

51166-27E30

4
Out of stock

6

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

1
Out of stock

7

NUT STEERING

51631-28E00

1
Out of stock

8

HEAD, STEERING STEM

51310-28E00

1
Out of stock

9

BOLT This part replaces 51328-27C40.

51166-27E30

4
Out of stock

10

1

$20.30

In stock

11

NUT, STEM HEAD

51353-27C40

1
Out of stock

12

HOLDER, HANDLE

56211-27100

2
Out of stock

13

4

$5.09

In stock
